6

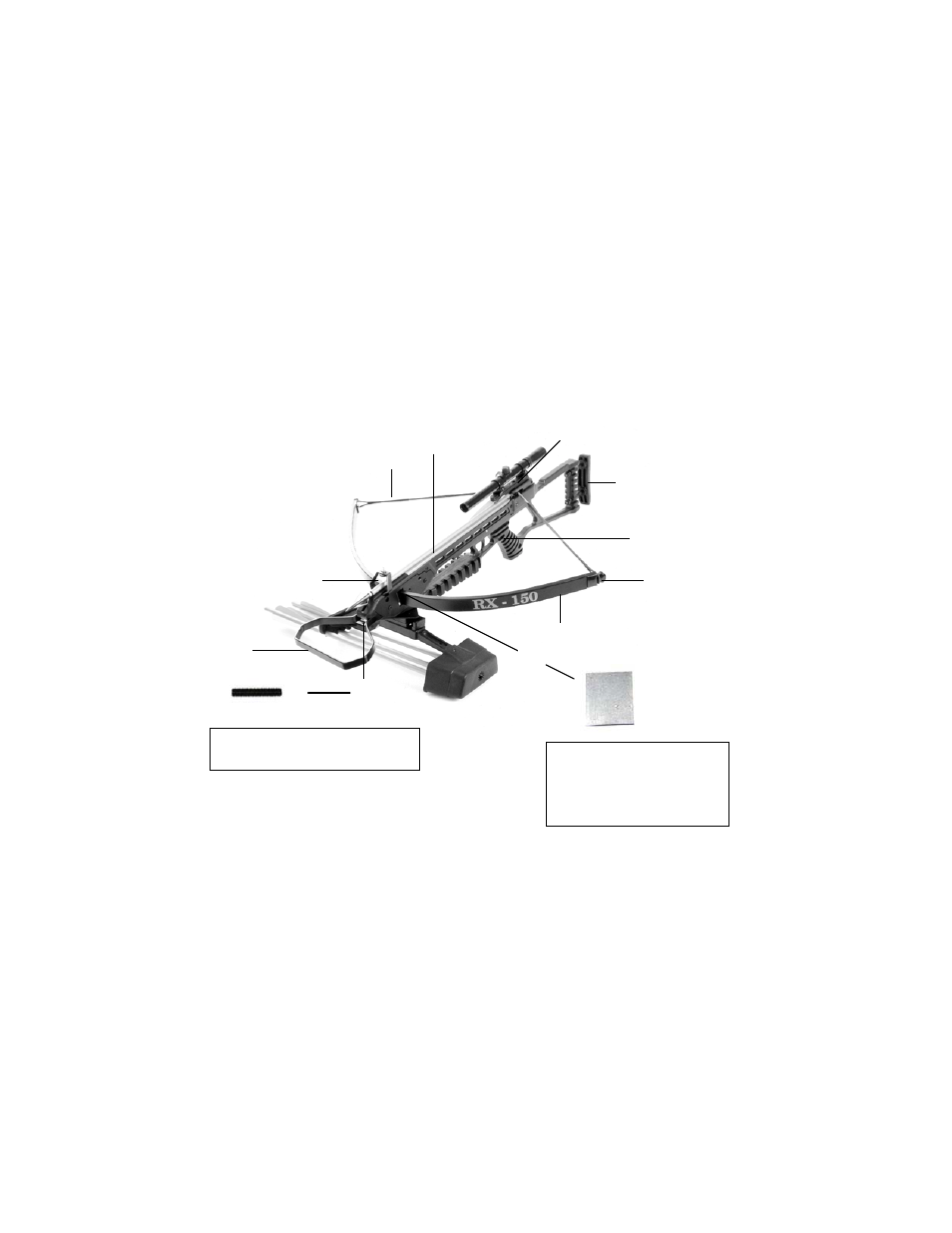

BREAKDOWN OF CROSSBOW PARTS FOR RX150
1 BODY
2 FLIGHT TRACK
3 FOOT CLAW
4 FRONT SIGHT
5 PROD
6 NOCK ENDS ( needs to be riveted )
7 NOSE BOLT
8 REAR ADJ SIGHT
9 PRESSURE PLATE WITH RUBBER PAD
10 STOCK EXTENSION
11 STOCK EXTENSION NUTS
12 STRING
13 STRINGER
14 TMB
15 TRIGGER MECH
2
Make sure nose bolt is against
metal part of the pressure plate.
Pressure pad should be
installed between prod and
nose bolt. Make sure rubber
pad is against the prod.
12
14
10,11
6
1
7
5
3
4
9
2
