5 DIGITAL MONITOR SPEAKERS MS40/MS20 User Manual
(7) Turn LINE 2 control to adjust the volume level of LINE 2 input (13).
◊ Attention: High volume levels may damage your hearing and/or your
headphones. Please turn the VOLUME controls all the way to the left
before powering up the unit. Be sure to always select an appropriate
volume level.
(12) (14) (15) (13)
(9) (8) (10) (11)

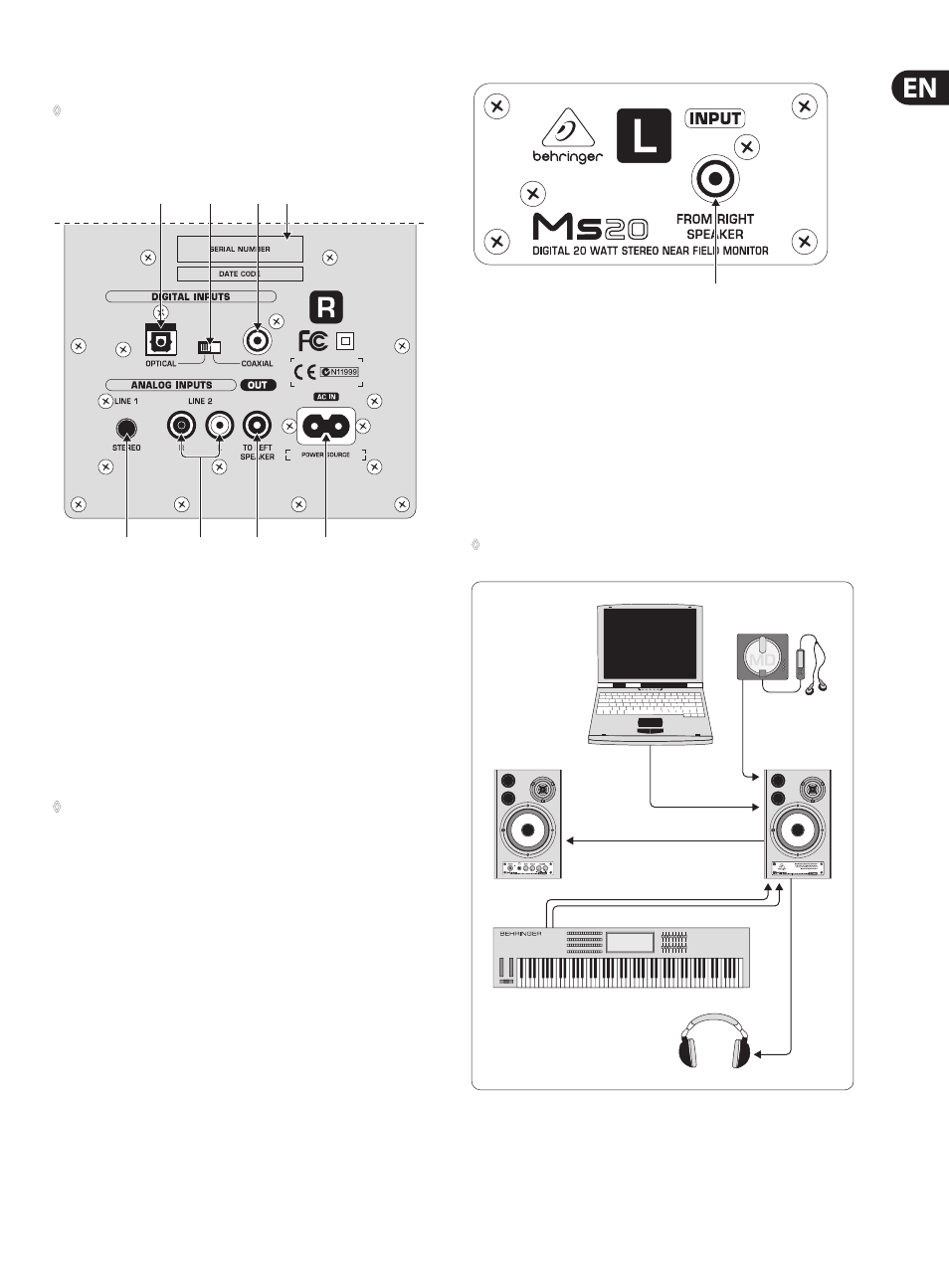

Fig. 2.2: Rear panel (right monitor)
(8) Digital audio data can be fed in at the OPTICAL input.
(9) The MS40 also features a digital COAXIAL input connector.
(10) With this switch you can select the digital input (OPTICAL or COAXIAL).
(11) SERIAL NUMBER.
(12) Analog input LINE 1 (1/8" TRS) allows you to connect stereo audio equipment
such as CD/MD players.
(13) Use the analog input LINE 2 (RCA) to connect your sound card,
keyboard or expander.
◊ You can play back various signals by using both stereo
inputs simultaneously.
(14) TO LEFT SPEAKER output connector. Connect both speakers by using the
speaker cable included in this package. As soon as both speakers are properly
connected, they will function as a stereo speaker system.
(15) A standard power socket is provided for connection to the mains. A matching
power cable is included with the unit. Before you connect the unit to the
power source make sure that the power switch is turned off and the volume
controls are turned all the way to the left to avoid any damage to speakers or
other devices.
(16)
Fig. 2.3: Rear panel (left monitor)
(16) FROM RIGHT SPEAKER connector. Insert the speaker cable from the
TO LEFT SPEAKER connector.
3. Wiring
The DIGITAL MONITOR SPEAKERS MS20/MS40 are designed to acco m modate a
variety of connector types for almost any situation you may encounter.
You will find all audio inputs on the right speaker. The left speaker only has one
audio input which is fed from the right speaker.
◊ Be sure to mute the signal sources before you put the monitor speakers
into operation.
Digital Audio
Workstation
Digital input
(coaxial)
Digital input
(optical)
Speaker cable
MS40
(left)
Keyboard
Headphone
BEHRINGER
HPS3000
MS40
(right)
Analog inputs (RCA)
MD player
Fig. 3.1: Computer/keyboard setup
