Express® Deck Lavatory System EXD-Series
Installation Instructions
EXD-2N
Bradley Corporation • 215-1542 Rev. E; EN 06-915
2/9/07

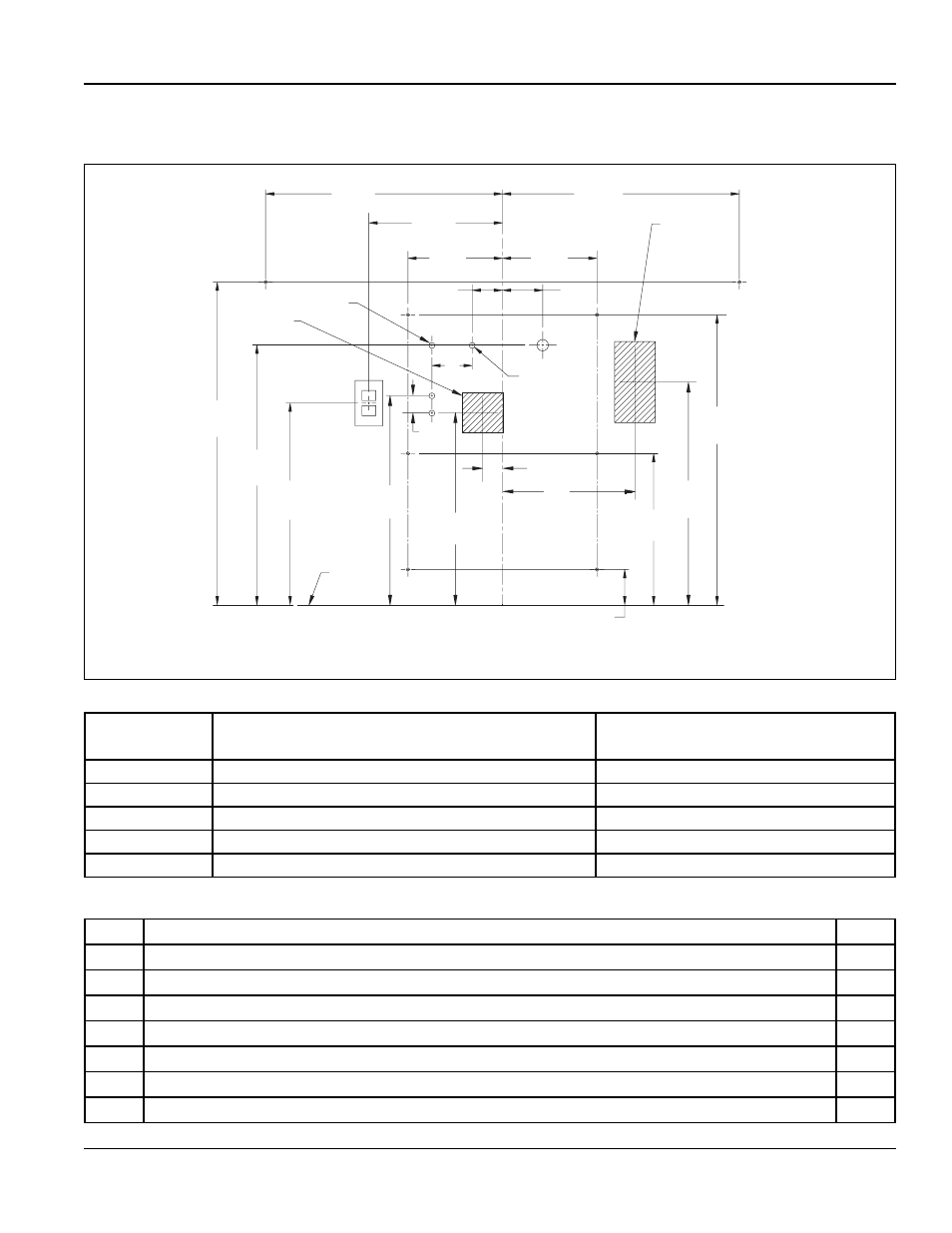

EXD-2N Express® Deck Lavatory System Dimensions
3-1/2"
(89mm)
20"
(508mm)
25-3/4"
(654mm)
32"
(813mm)
23-1/2"
(597mm)
9-3/8"
(238mm)
4"
(102mm)
3"
(76mm)
13-1/4"
(337mm)
15"
(381mm)
F
A
A
B
B
B
B
C
C
D
D
E
23-1/2"
(597mm)
9-3/8"
(238mm)
4"
(102mm)
COLD OR
TEMPERED
SUPPLY
OPTION
* OPTION 1 - RECOMMENDED 240V/208V OR 277V
ELECTRICAL BOX LOCATION (4"L x 4"W x 8"H)
or
** OPTION 2 - RECOMMENDED 240V/208V OR 277V
ELECTRICAL BOX LOCATION (4"L x 4"W x 4"H)
HOT SUPPLY
19"
(483mm)
FLOOR
2" (51mm)
13"
(330mm)
22"
(559mm)
28-3/4"
(730mm)
C
L
OPTION #1*
OPTION #2**
21"
(533mm)
1-3/8"
(35mm)
G
G
Figure 1
RIM HEIGHT
VERTICAL HEIGHT ADJUSTMENTS
“A” THROUGH “F”
FIXTURE STYLE
34"
NONE
STANDARD HEIGHT
34"
NONE
WALL HUNG
32"
SUBTRACT 2"
TAS, GRADES 6 THRU 8/9
31"
SUBTRACT 3"
JUVENILE HEIGHT
30"
SUBTRACT 4"
TAS, PRE-K THROUGH 5/6
CODE
DESCRIPTION
QTY.
“A”
3/8" BOWL WALL ANCHORS WITH A MINIMUM PULL-OUT FORCE OF 1,000 LBS.
2
“B”
3/8" MAIN FRAME WALL ANCHORS WITH A MINIMUM PULL-OUT FORCE OF 1,000 LBS.
6
“C”
3/8" BASE FRAME WALL ANCHORS, STANDARD FRAME OPTION ONLY.
2
“D”
1/2" NPT HOT/COLD SUPPLIES, STUB OUT 2" FROM WALL
2
“E”
1-1/2" NPT DRAIN, STUB OUT 2" FROM WALL
1
“F”
110V GFCI PROTECTED ELECTRIC OUTLET (FOR OPTIONAL ELECTRONIC FAUCETS)
1
“G”
#10 WALL ANCHORS/FASTENERS FOR OPTIONAL VERNATHERM™ VALVE MOUNTING
2
CHART 1
CHART 2
