Determining the location of the TV
After the Monitor Arms (MA) have been attached to the TV, measure the distance from
the center of the monitor arms to the top and bottom of the TV to help determine the
desired height of the TV on your wall. The reason that you need to take these
measurements is because many TVs do not have the mounting location centered on the
back of the monitor. To determine the exact height you want to mount the brackets, use
the convenient Installation Template (IT) rather than holding the TV in place while you
do all this measuring. Always make sure to use a level when placing the template. Measure
from the floor up as shown in Figure 4, and using a pencil, make small marks on the wall to
help you determine the desired TV height.

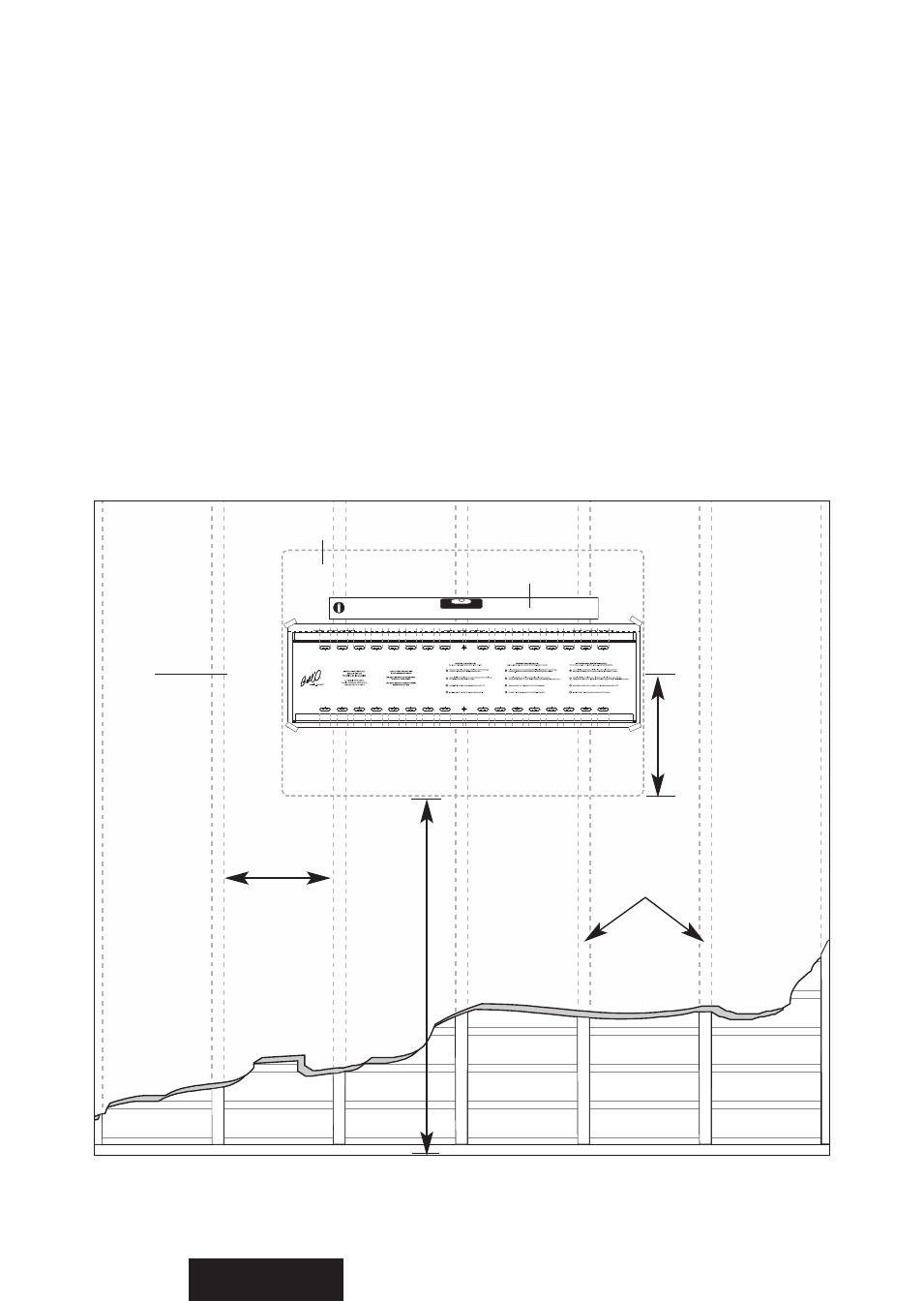

Figure 4
16
Inches
(406mm)
H
e
ig
h
t
to
b
o
tt
o
m
o
f
T
V
Distance from
Bottom of TV
to Center of
Monitor Arms
Wood
Studs
IT
Level
Desired Location of TV
