3. Connect the speaker wires to the
speaker output terminals.
• Fix the speaker wires securely with the termi-
nal screws.
Using the Speaker Input
Connect the car stereo speaker output
wires to the amplifiers using the supplied
speaker input connector.
• Do not connect both the RCA input and the
speaker input at the same time.

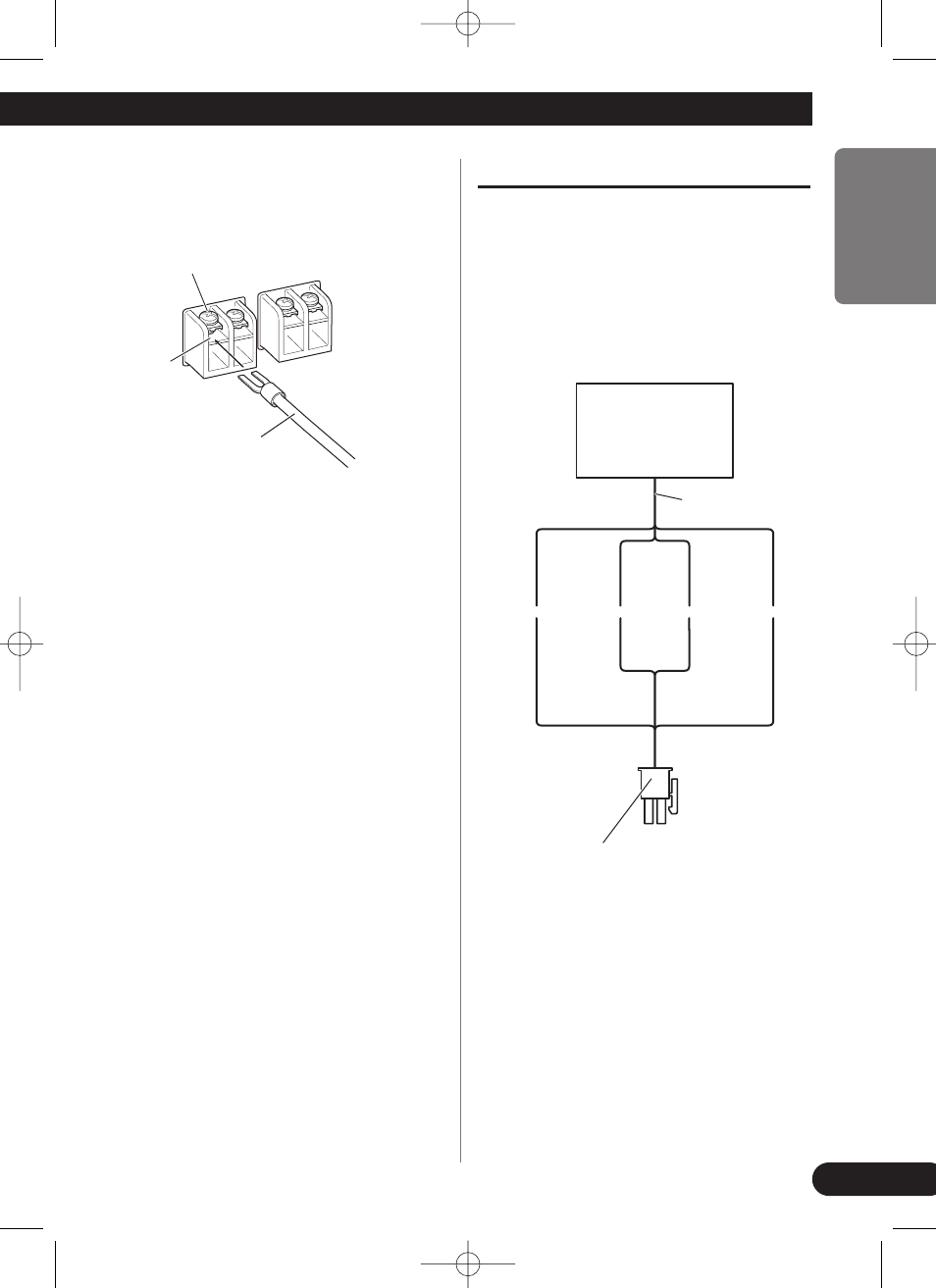

7 Connections when using the speaker
input
Speaker
output
terminal
Terminal screw
Speaker wire
Speaker output
Car Stereo
Speaker input connector
To speaker input terminal of
this unit.
White:
Left + Gray:
Right +
White/black:
Left ≠ Gray/black:
Right ≠
