Connecting the system 02
Section
8
Engb

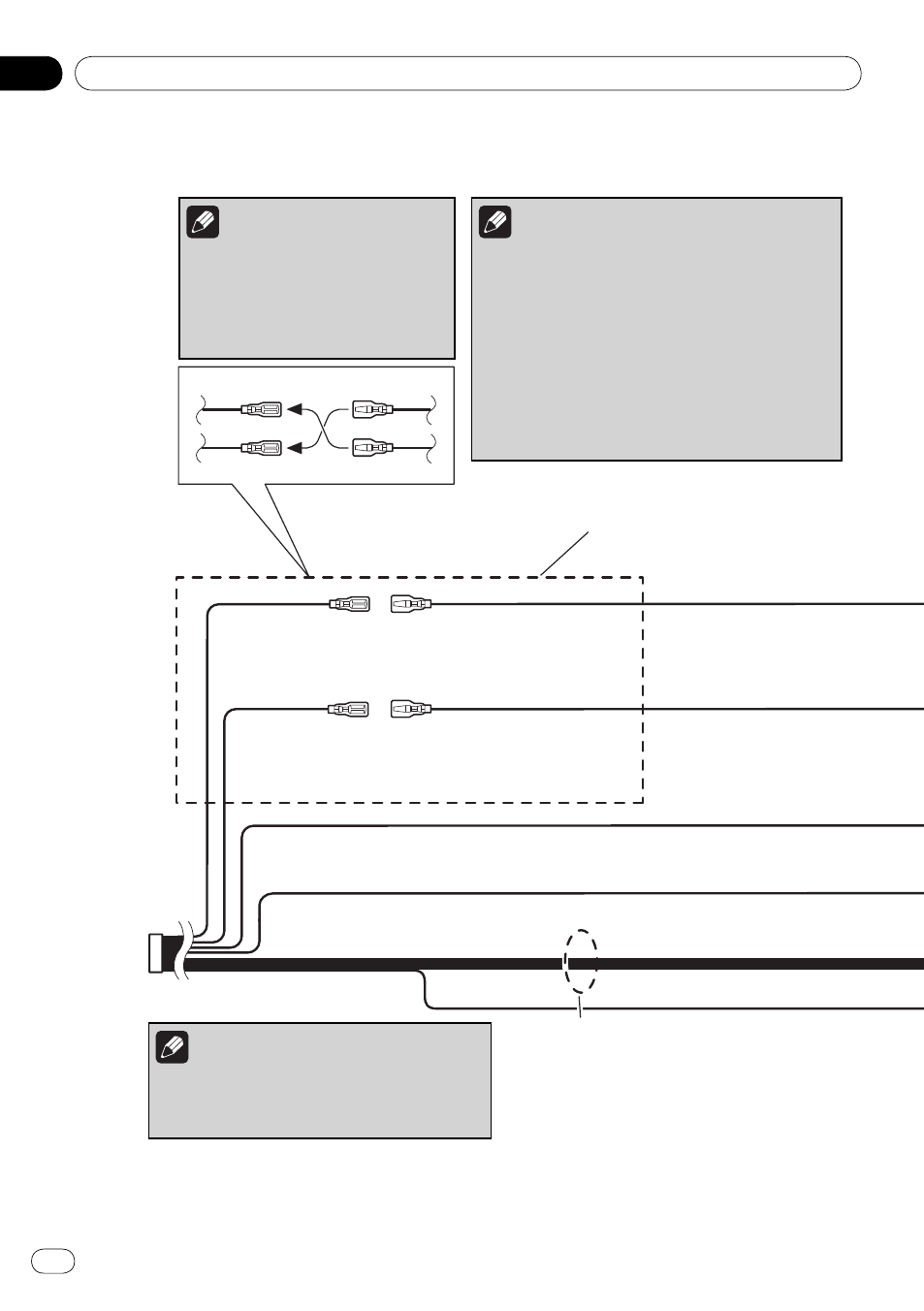

Connecting the power cord (1)
Note
Depending on the vehicle type,
the function of *2 and *4 may be
different. In this case, be sure to
connect *1 to *4 and *3 to *2 as
shown in the figure.
Notes
When a subwoofer (*5) is connected to this
product instead of a rear speaker, change
the rear output setting in the initial setting.
(Refer to the Operation Manual.) The sub-
woofer output of this product is monaural.
When using a subwoofer of 70 W (2 Ω), be
sure to connect with the violet and violet/
black leads of this product. Do not connect
anything with the green and green/black
leads. •
•
Connect leads of the same colour to
each other.
Yellow (*2)
Back-up
(or accessory) Yellow (*1)
To terminal supplied with power
regardless of ignition switch position.
Red (*4)
Accessory
(or back-up) Red (*3)
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Orange/white
To lighting switch terminal.
Black (earth)
To vehicle (metal) body.
ISO connector
Speaker leads
White: Front
left 
White/black: Front left 
Grey: Front right 
Grey/black: Front right 
Green: Rear left  or Subwoofer  (*5)
Green/black: Rear left  or Subwoofer  (*5)
Violet: Rear right  or Subwoofer  (*5)
Violet/black: Rear right  or Subwoofer  (*5)
Note
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to
connect to both connectors.
*2 *1
*4 *3
