ENGLISH
E-2

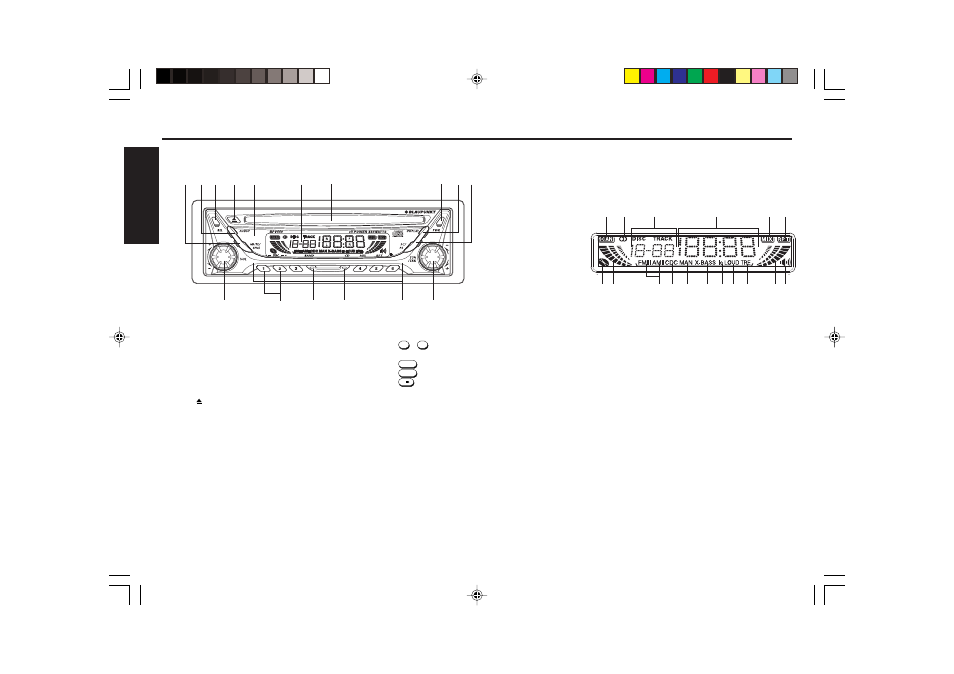

Identification of Controls
CDC
CDC
MAN
MAN
FMlll
FMlll
AMll
AMll
X-BASS
X-BASS
TRE
TRE
lo LOUD
LOUD
1
MUTE/SENS button
Mutes the sound. Switches the seek sensitivity between
local and distance.
2
AUDIO button
Audio control selector; Bass, Treble, Loudness, X-BASS,
Balance, Fader & Level Meter.
3
REL button
Releases the detachable front panel.
4
Eject button
Ejects the CD. Reset the unit.
5
Infrared Sensor (behind acrylic facia)
Permits wireless remote control of AM/FM/CD and CD
changer with RC-823 credit card style remote.
6
LCD Display window
7
CD insertion slot
Insert the CD here.
8
PWR button
Turns the power of the unit on or off.
9
DISPLAY button
Display selector. Display priority setting.Clock adjustment.
10
SC/PS button
Scan tuning. Preset scan tuning. Scan play in CD/CDC
mode.
11
TUN/TRK dial
Used to tune in to the desired station.
12
PRESET MEMORY button
During radio reception :
1
-
6
; For Preset memory
During CD mode :
4/MIX
; For Mix play (Mix & Mix all during CDC)
5/RPT
; For Repeat play
6/
; For Pause
13
CD button
Selects the operating source (CD, CD changer or AUX).
14
BAND button
Selects the AM/FM band & Travel store.
15
DISC SELECT button
Select the desired CD in CDC (CD changer) mode.
16
VOL dial
Adjusts the volume level and audio control.
Remote Control (Optional)
You can operate your receivers basic AM, FM, CD & CDC
features via an optional IR Remote Control. Optional Credit
Card type and Steering Wheel mounted remotes are avail-
able.
3
4
5
2
1
6
7
8
9 10
11
12
13
16
Front Panel
LCD Display
1
SCAN indicator
2
STEREO signal indicator
3
DISC/TRACK Number indicator
4
Main display section
5
MIX Mode indicator
6
RPT Mode indicator
7
X-BASS level indicator
8
R-ch Level Meter
9
Treble indicator
10
LOUD indicator
11
lo(Local) indicator
12
X-BASS/BAS indicator
13
MAN(Manual tuning) indicator
14
CD Changer indicator
15
AM/FM indicator
16
L-ch Level Meter
17
DISC IN indicator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
14
15
