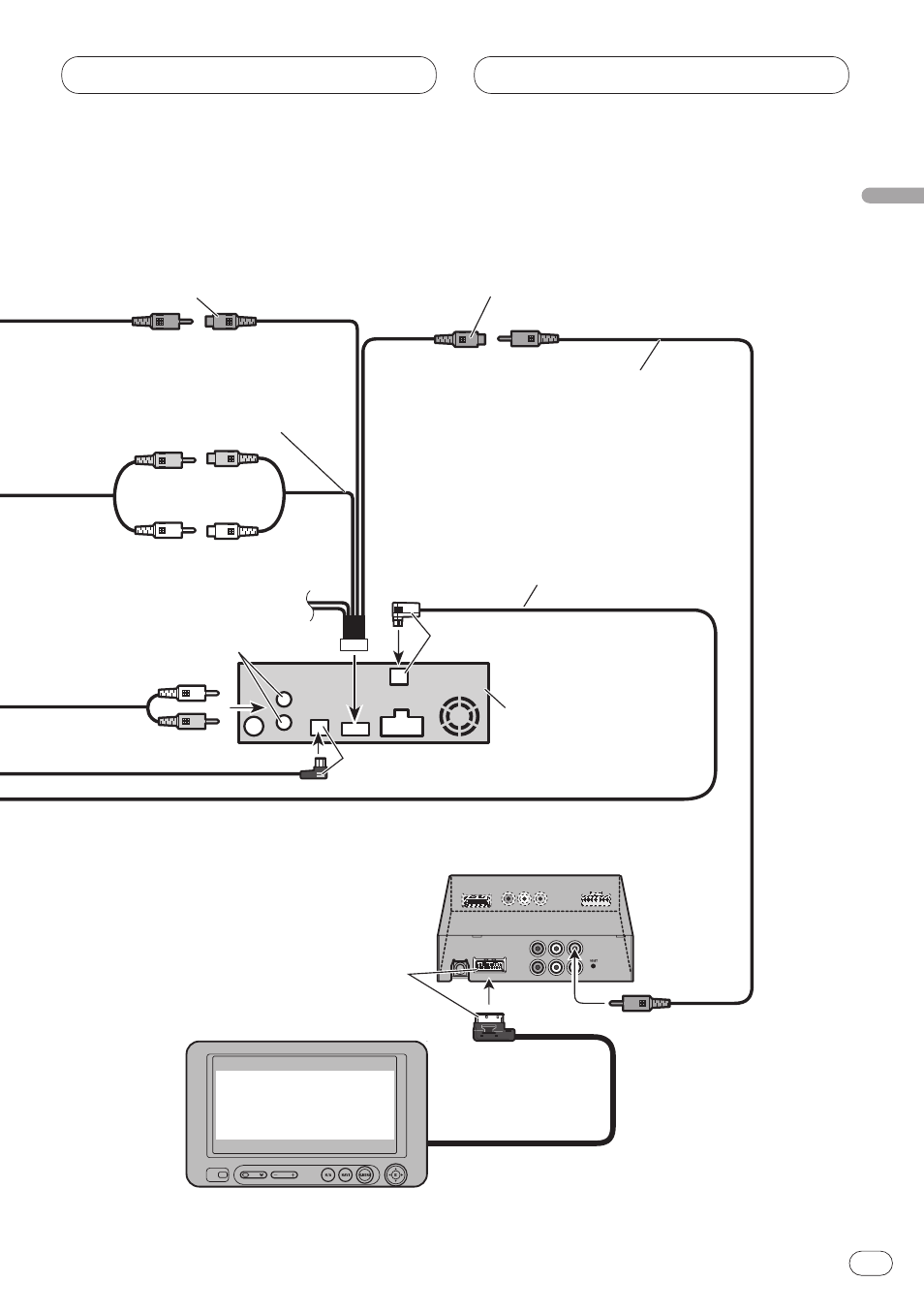

Connecting the Units
En 9
English
Español
Deutsch
Français
Italiano
Nederlands
Rear video output
(REAR VIDEO OUTPUT)
(Yellow)
Optical cable
(supplied with multi-channel processor)
Right (Red)
Left (White)
RCA cable (supplied)
Rear audio output
Right (Red)
Left (White)
6 m
23 cm
23 cm
15 cm
Brown
6 m
Front video output
(FRONT VIDEO
OUTPUT) (Yellow)
Subwoofer output or non fading
output (SUBWOOFER OUTPUT
or NON-FADING OUTPUT)
This product
Black
Blue
16:9 touchscreen
display (AVD-W6210)
(sold separately)
