Page 3
Black plate (3,1)

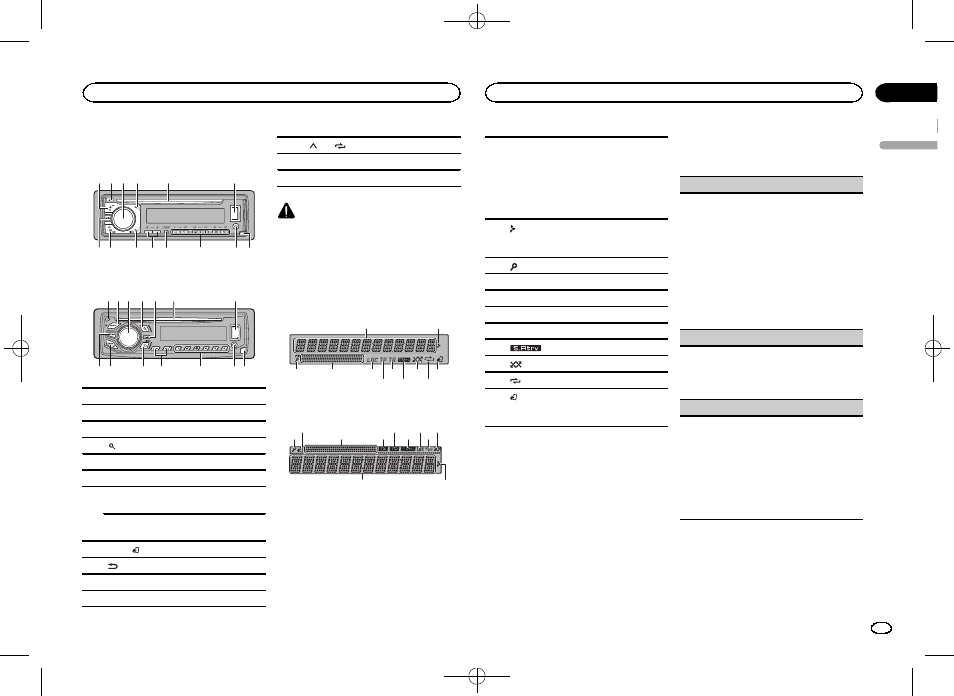

Head unit
DEH-X3600UI
2
4
6
5
3
d
8
9
e
7
a b
c
1
DEH-2600UI
6
2
4
5
3
1
8
9
de
7
b
c
a
1
SRC/OFF
2
h (eject)
3
MULTI-CONTROL (M.C.)
4
(list)
5
Disc loading slot
6
USB port
7
MIX (MIXTRAX)
DEH-X3600UI
iPod
DEH-2600UI
8
BAND/
(iPod control)
9
(back)/
DIMMER (dimmer)
a
c/d
b
DISP
c
1/
to
6/
d
AUX input jack (3.5 mm stereo jack)
e
Detach button
CAUTION
Use an optional Pioneer USB cable (CD-U50E)
to connect the USB storage device as any device
connected directly to the unit will protrude out
from the unit, which could be dangerous.
Display indication
DEH-X3600UI
1
7
b
9
6 8
a
5
4
2
3
DEH-2600UI
4
3
7
a
8
2
1
b
6
5 9
1
Main information section
! Tuner: band and frequency
! RDS: program service name, PTY infor-
mation and other literal information
! CD player, USB storage device and iPod:
elapsed playback time and text informa-
tion
2
Appears when a lower tier of folder or menu
exists.
3
(list)
4
Sub information section
5
LOC (local seek tuning)
6
TP (traffic program identification)
7
TA (traffic announcements)
8
(sound retriever)
9
(random/shuffle)
a
(repeat)
b
(iPod control)
This unit
’s iPod function is operated from
your iPod.
Set up menu
1
After installation of this unit, turn the
ignition switch to ON.
SET UP appears.
2
Turn M.C. to switch to YES.
# If you do not use the unit for 30 seconds, the set
up menu will not be displayed.
# If you prefer not to set up at this time, turn M.C.
to switch to
NO.
3
Press M.C. to select.
4
Follow these steps to set the menu.
To proceed to the next menu option, you need to
confirm your selection.
LANGUAGE (multi-language)
This unit can display the text information from a
compressed audio file even for information em-
bedded in English, Russian or Turkish.
! If the embedded language and the selected
language setting are not the same, text infor-
mation may not display properly.
! Some characters may not be displayed prop-
erly.
1 Turn M.C. to select the desired setting.
ENG (English)
—РУС (Russian)—TUR (Turk-
ish)
2 Press M.C. to confirm the selection.
CLOCK SET (setting the clock)
1 Turn M.C. to adjust hour.
2 Press M.C. to select minute.
3 Turn M.C. to adjust minute.
4 Press M.C. to confirm the selection.
FM STEP (FM tuning step)
Use
FM STEP to set FM tuning step options (seek
step settings).
1 Turn M.C. to select the FM tuning step.
100 (100 kHz)
—50 (50 kHz)
2 Press M.C. to confirm the selection.
QUIT appears.
! The manual tuning step is fixed at 50 kHz.
! When AF and TA are turned off, the seek step
is fixed at 50 kHz even if set to
100.
5
To finish your settings, turn M.C. to select
YES.
# If you prefer to change your setting again, turn
M.C. to switch to NO.
6
Press M.C. to select.
English
Using this unit
3
Section
Using this unit
En
02
