Connecting the power cord (1) – Pioneer AVG-VDP1 User Manual
Page 7
6
English
Español
Deutsch
Français
Italiano
Nederlands

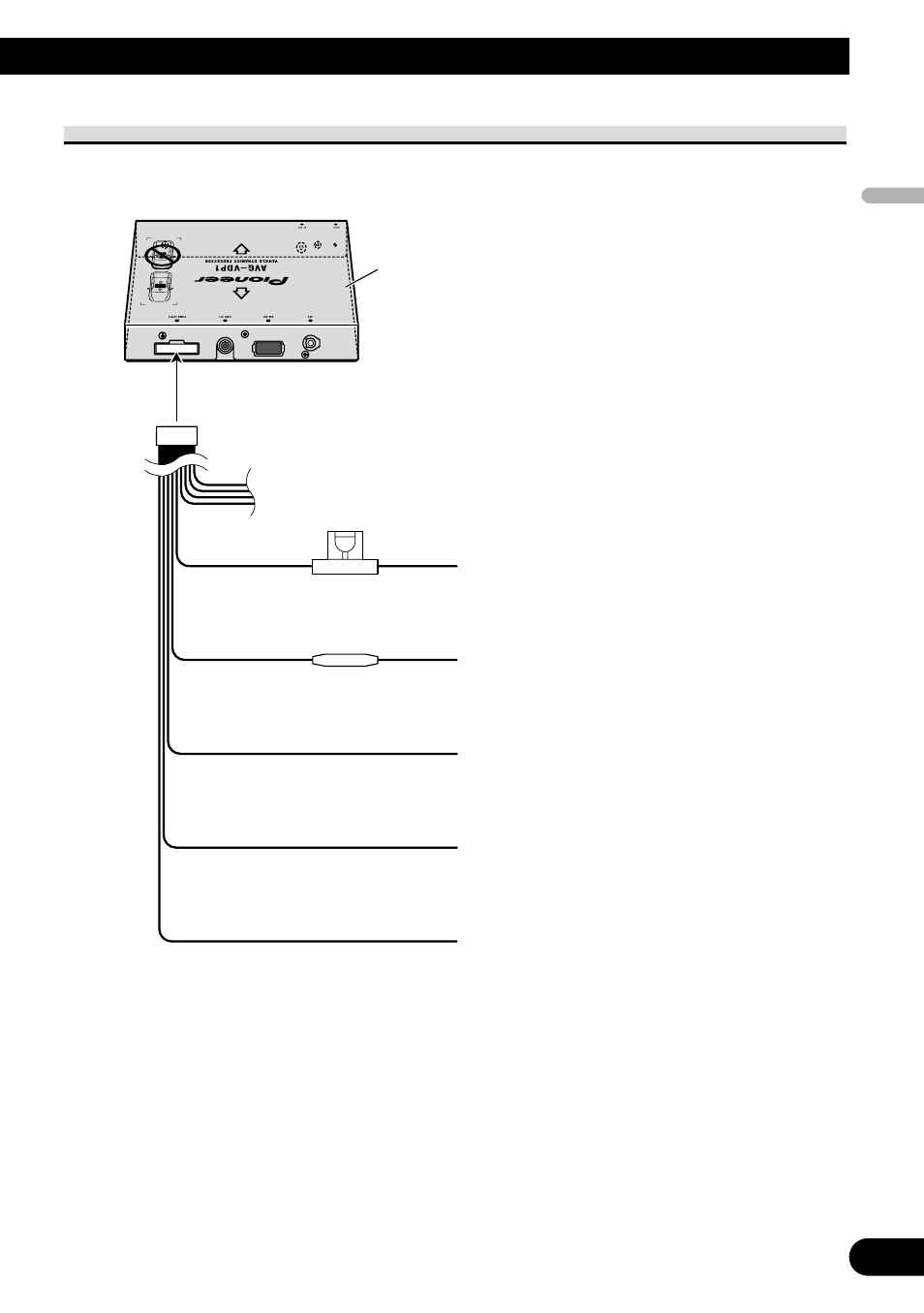

Connecting the power cord (1)
Fuse (4 A)
This unit
Fuse resistor
Yellow
To terminal always supplied with power
regardless of ignition switch position.
Red
To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.
Black (ground)
To vehicle (metal) body.
White/black
To negative pole of the front left speaker
lead.
Gray/black
To negative pole of the front right speaker
lead.
