Pioneer AVIC-F8430BT - Manual

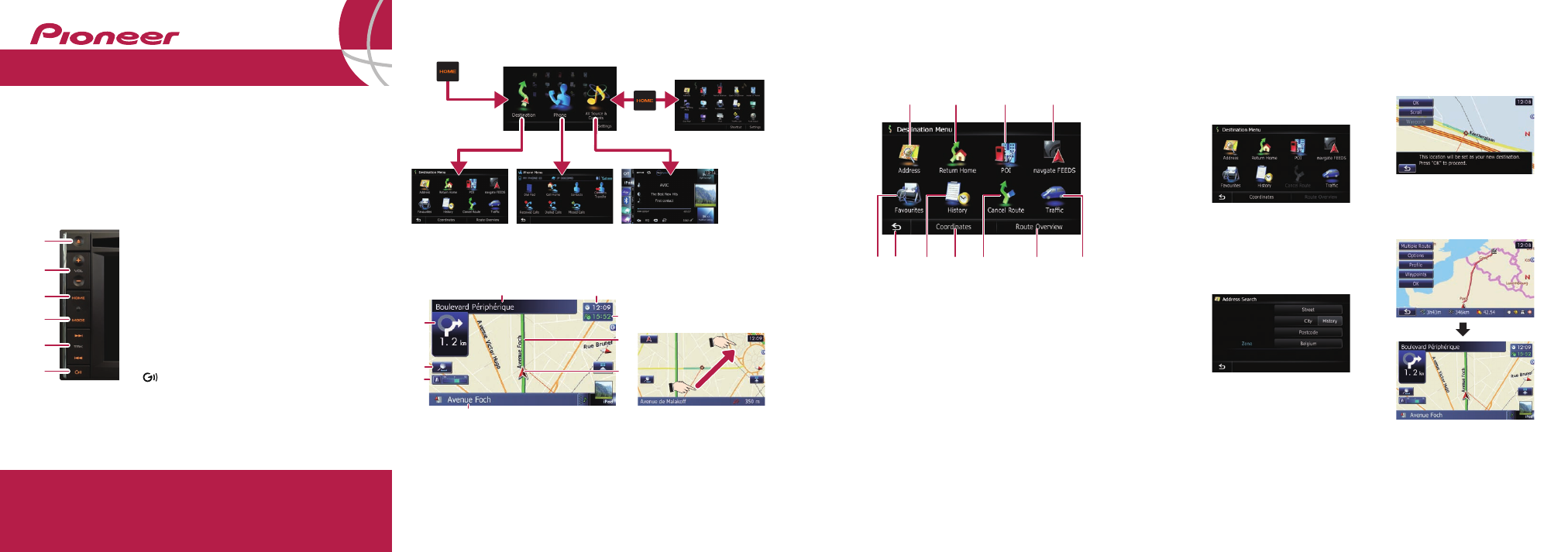

Basic hardware buttons
Quick Start Guide
This guide is intended to guide you through the basic functions of this navi-
gation system. For details, please refer to Operation Manual.
Searching for your destination
by address
1
Display the “ Destination
Menu ” screen and touch
Address .
2
Select the country you
desire.
3
Input the information that
you want to set as the des-
tination.
Touch one of the options. After
narrowing down your destina-
tion, the Location confirmation
screen will appear.
4
Touch OK .
After searching for the destina-
tion, the Route confirmation
screen appears.
5
Touch OK .
The navigation system gives you
route guidance both visually and
by voice.
Screen switching overview
© 2012 PIONEER CORPORATION.
All rights reserved.
Printed in Thailand
<12F00000> EU
NAVIGATION AV SYSTEM
AVIC-F8430BT
Destination Menu
Touch Destination on the “ Top Menu ” screen.
4 1
6
2 3
1  button
Press to display the touch panel keys for
ejecting the media.
2 VOL (+/–) button
Press to adjust the AV (Audio and Video)
source volume.
3 HOME button
Press to display the “ Top Menu ” screen.
4 MODE button
Press to switch between the map screen
and the AV operation screen.
5 TRK (o/p) button
6 button
Press briefly to hear the current route guid-
ance.
Press and hold to mute the AV source.
1 Searches for a location by
address
2 Calculates the route to your
home
3 Searches for a place such as
stores, restaurants, and
other facilities (Points Of
Interest – POI) in the data-
base
4 Searches for POIs by using
the data on the microSD
card
5 Stores and selects your
favourite locations
6 Returns to the previous
screen
7 Selects a previously routed
destination
8 Searches for a location by
coordinates
9 Cancels your current route
guidance
a Displays the current route
information
b Displays traffic information
5 7 8 a 9 b
Basic items on the map
1 Name of the street to be used
(or next guidance point)
2 Current time
3 Estimated time of arrival
(default)
4 Current route
5 Current position
6 Street name that your vehicle
is travelling along
7 Eco-Meter
8 Map control
9 Next direction of travel
Dragging the map
allows scrolling.
AV operation screen Destination Menu Phone Menu
Shortcut Menu
1
8
5
4
3
2
9
7
6
Top Menu (Classic Menu)
3
4
5
2
1
6
