Beverage-Air GRINDMASTER 3311 - Manual (Page 27)

Model 3311 Page 25
Model 3311

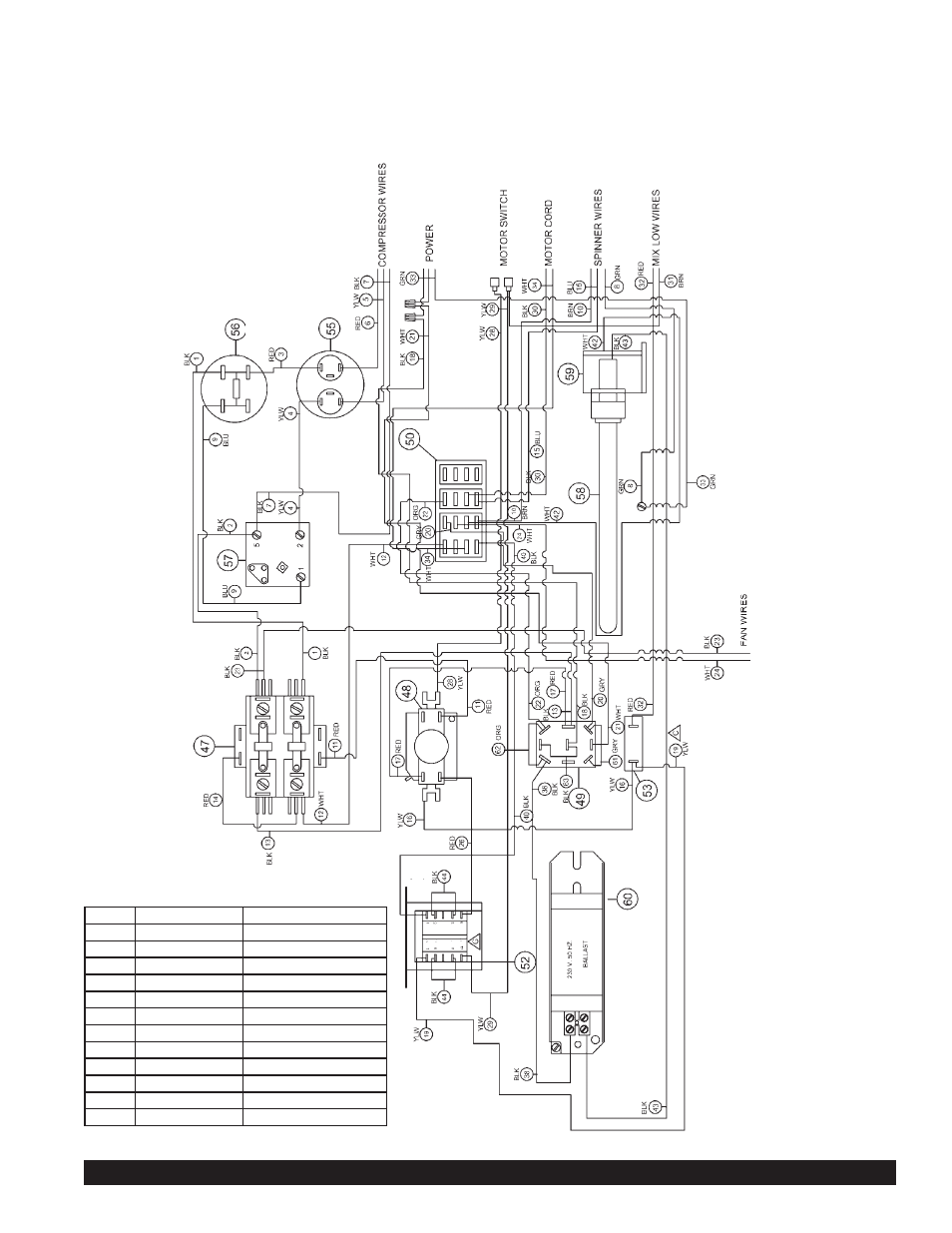

Wiring Diagram
220V Air-Cooled Model
ITEM PART NUMBER DESCRIPTION
47 W0570872 CONTACTOR RELAY
48 W0570651 TIME DELAY RELAY
49 W0570940 TOGGLE SWITCH
50 W0570235 TERMINAL BLOCK
52 W0570871 TRANSFORMER
53 W0570018 INDICATOR LIGHT
55 W0570667 RUN CAPACITOR
56 W0570666 START CAPACITOR
57 W0570559 COMPRESSOR RELAY
58 W0570055 LIGHT BULB
59 W0570054 LIGHT SOCKET
60 W0570053 50 HZ BALLAST
