CAM25
REAR VIEW CAMERA
Congratulations on your purchase of a BOSS
AUDIO SYSTEMS CAM25 Rear View Camera.
Thank you for making BOSS AUDIO SYSTEMS
your choice for mobile audio/video
entertainment.
SAFETY PRECAUTIONS
• Do not operate any mobile video equipment
while driving – safe driving should always be
your highest priority.
• Do not open or attempt to repair this unit
yourself. Refer any repairs to a qualified BOSS
AUDIO SYSTEMS technician.
• If there is smoke or any peculiar odor present
during use or if there is damage to any of the
component enclosures, immediately remove
it from your system and send to your local
dealer or service center as soon as possible.
User’s Manual
SPECIFICATIONS
Model No.
CAM25
Image Device
1/4" (6.3mm) Color
Effective Pixels
NTSC: 628 x 582
Signal System
NTSC
Sensing Area
5.78mm x 4.19mm
Sync. System Internal
Resolution
420 TV Lines
Minimum Illumination
3Lux/F1.2 (O Lux when
Infrared LED on)
Lens
2.8mm/120deg
Night Vision Range
6m
S/N Ratio
> 48db
Electronic Shutter
1/60 - 1/15,000 sec.
Video Output
RCA Connector,
1.0vp-p, 75 Ohm
Current Consumption
130mA
Power Supply
12V DC
Operating Temperature
-30º to 50º C
Storage Temperature
-30º to 60º C
Other Items
Automatic White
Balance, AGC and BLC
Dimensions: 1.1" x 1.6"
28mm x 42mm

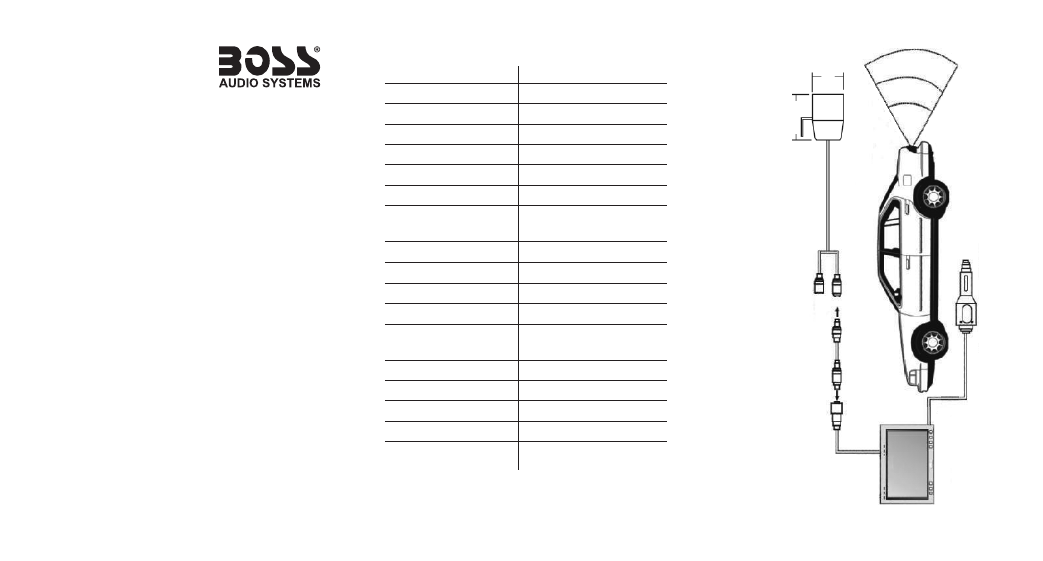

TY
PIC
AL SY
STEM C
ONFIGUR
A
TION
V
ideo
Monit
or
Po
w
er Input DC 12V
C
AM25
Po
w
er Input
DC 12V
V
ideo O
utput
Field of
V
ie
w - 92
º
40mm
28mm
