Step 4 Connecting the Transmitter to the Receiver

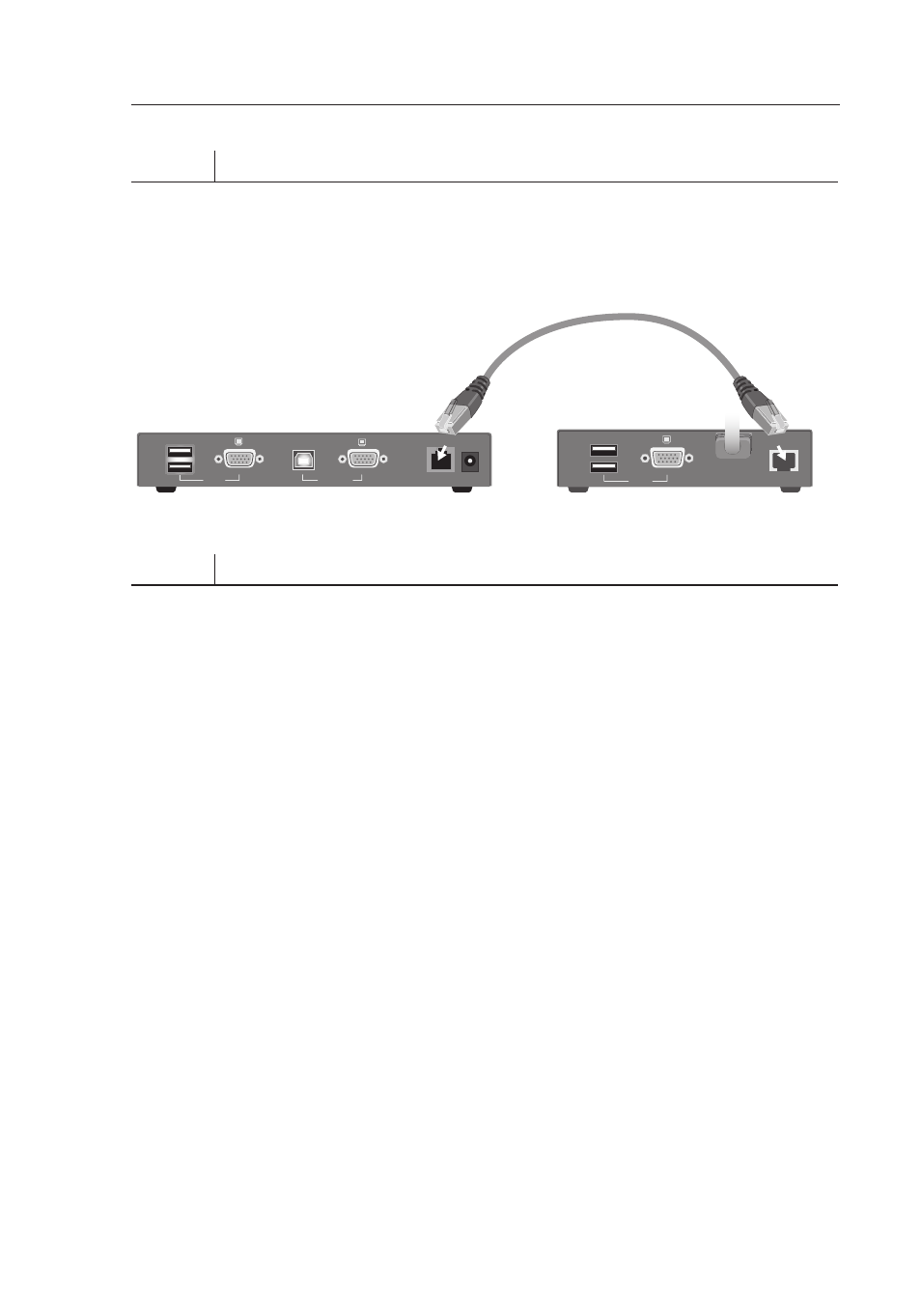

Using a CAT5 cable, connect one end into the RJ45 port on the Transmitter
unit. Connect the other end to the RJ45 port on the Receiver unit. (Refer to
diagram below.)
Console Local CPU
USB
Remote CPU 5V/ 2.5A Console RJ45
USB
Step 5 Powering up the Systems
5.1 Attach the power adapter to the power jack on the Receiver unit.
Connect the adapter to a power source to power up the Receiver
unit. The Transmitter unit will receive power from the computer or
KVM switch to which it is connected.
5.2 Power up your computers and KVM switch.
