INSTALLATION INSTRUCTIONS

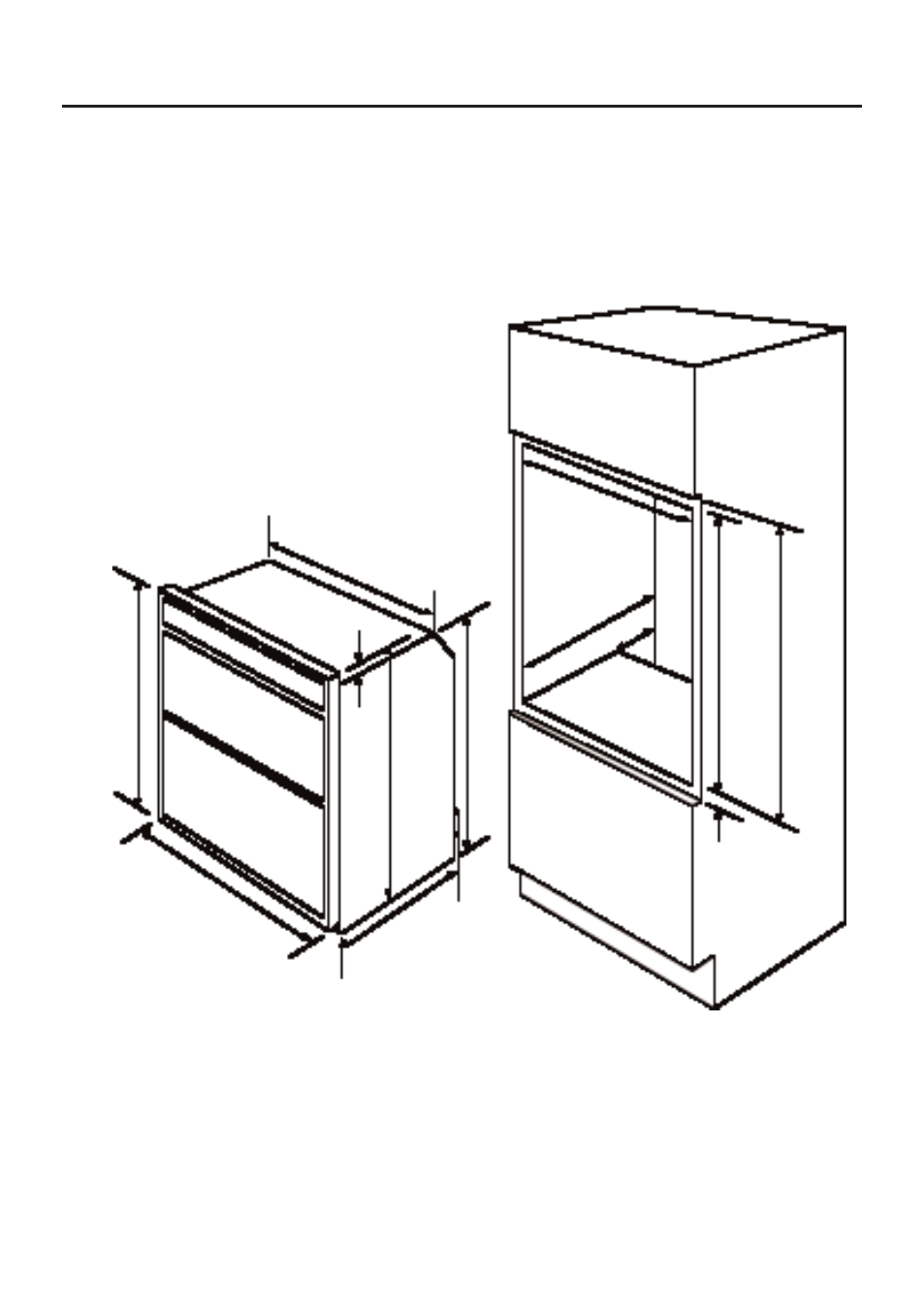

Installation diagram
547mm
20mm
885mm
888
mm
595mm
550mm
569
mm
min
560mm
550mm
min
30-80mm
min
880
mm
min
890
mm
min
6mm
12mm
gap in plinth
