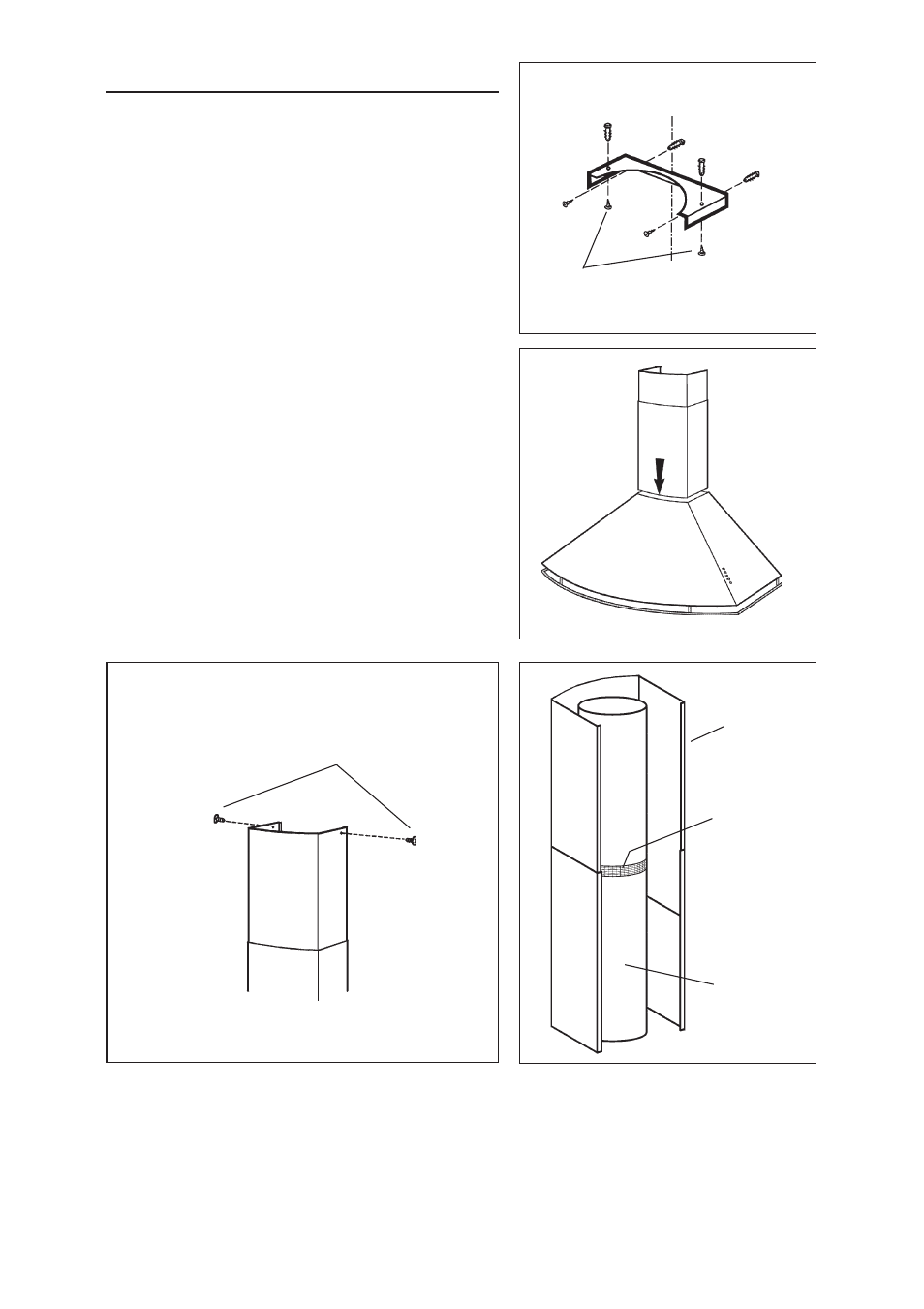

FASTEN FLUE TO
BRACKET WITH MOUNTING
SCREWS (3.2x13mm)
6" ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
FLUE MOUNTING BRACKET
CONNECT DUCTWORK
1. Use screws (4.8x38mm) and wall anchors
(supplied) to secure flue mounting bracket
to the ceiling or wall as shown.
2. Use 6" round metal duct to connect the
duct collar on the hood to the ductwork
above.
3. Use duct tape to make all joints secure
and air tight.
4. Carefully place the lower decorative flue
into the recessed area of the range hood
top.
5. Extend the upper flue to the ceiling and
secure with the two mounting screws
(3.2x13mm).
MOUNTING
SCREWS
(4.8x38mm)
