16

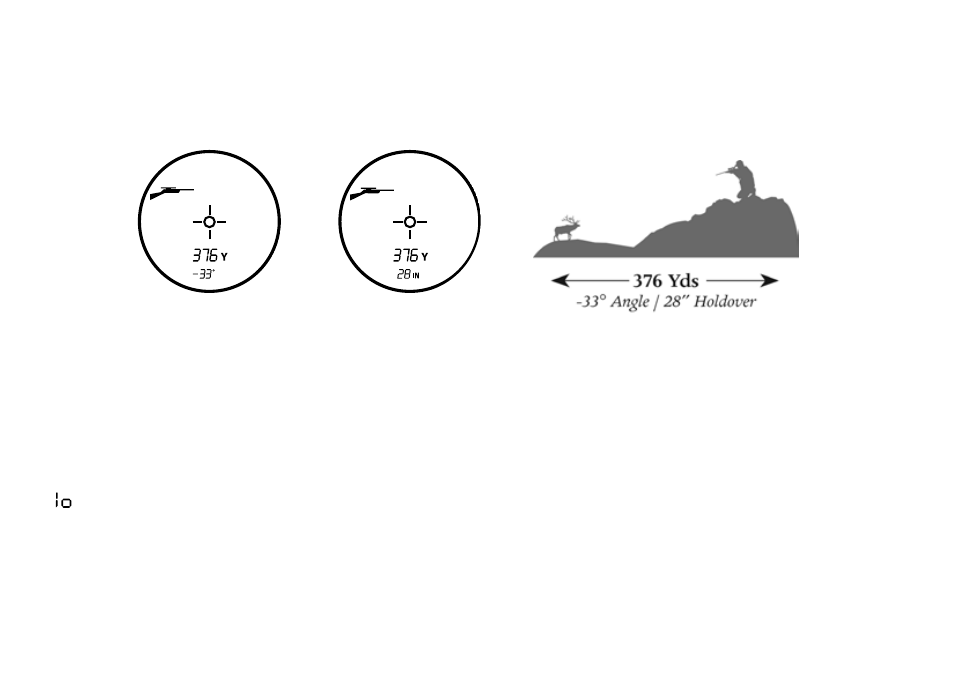

RIFLE MODE EXAMPLE
Line of sight is 376 yards, angle is -33 degrees, and the bullet-drop/holdover is 28 inches. ARC not only takes into
account ballistic data based off your caliber and load from distances of 100-800 yards, but also compensates for any
uphill and downhill angles which also affect bullet-drop.
Line of Sight = 376 Yards
Holdover/Bulletdrop =
28 Inches
Line of Sight = 376 Yards
Degree of Angle = -33°
If in RIFLE mode, the ballistic group will be displayed in the bullet drop numeric field anytime that the primary
numeric display is showing dashes (i.e. no target acquired). When a target is acquired in RIFLE mode, the line of sight
distance will display in the secondary numeric displays. The “IN” icon (i.e. inches) will light next to the bullet drop
numeric display, if the unit of measure is set to Yards (Y). If the unit of measure is set to Meters (M), the bullet drop
will be calculated and displayed in centimeters and the “IN” icon will be turned off. If the bullet drop / hold over reads
“ ,” this means the compensated distance is beyond what can be displayed, and or beyond ballistic calculations and
user will need to hold low.
REGULAR MODE
This mode does not provide any degree of elevation or compensated distance, but instead, line of sight distance only.
The will still appear below the line of sight numeric display, but there will not be any information displayed in this
secondary numeric display.
