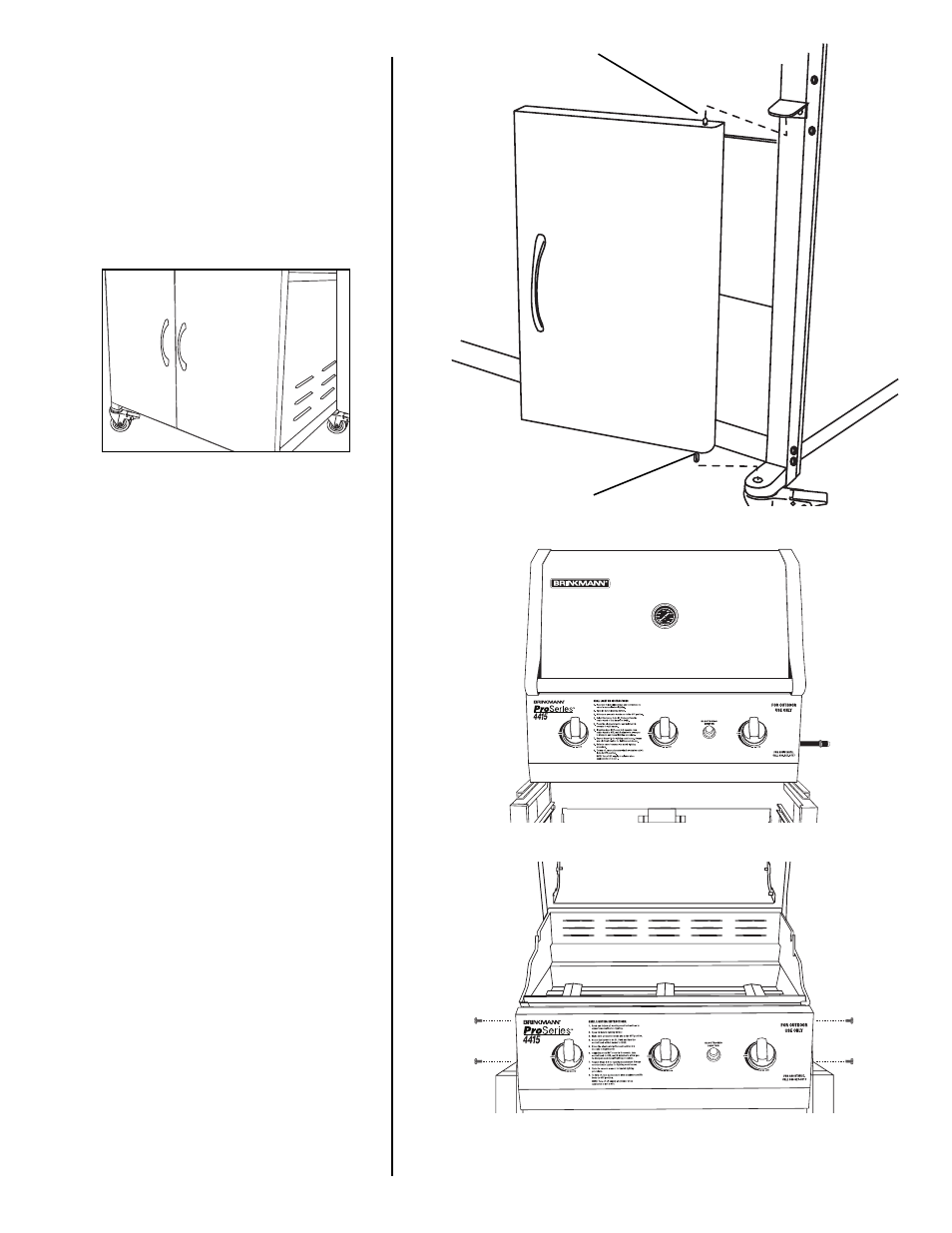

Step 8
Insert right side door pivot into the
hole in bottom cart shelf. Then align
door with cart frame, depress
spring pin located on top edge of
door and slide door toward side
cart panel until spring pin locks into
hole in door bracket. Repeat for
other door.
NOTE: When performing Step 9,
Lift grill body from front and
rear panels to avoid injury
to hands and fingers.
Step 9
With the help of a friend, place grill
body assembly on grill cart. Grill
body will rest between upper side
sections of cart. Align bolt holes
located on the outside of the grill
body assembly. Secure using four
M6 X 15mm bolts. At this point, fully
tighten four bolts holding back
panel from Step 4 and the four
bolts holding door bracket from
Step 5.
26
Spring Pin
Door Pivot
