• Cut off the mains cable and discard it.

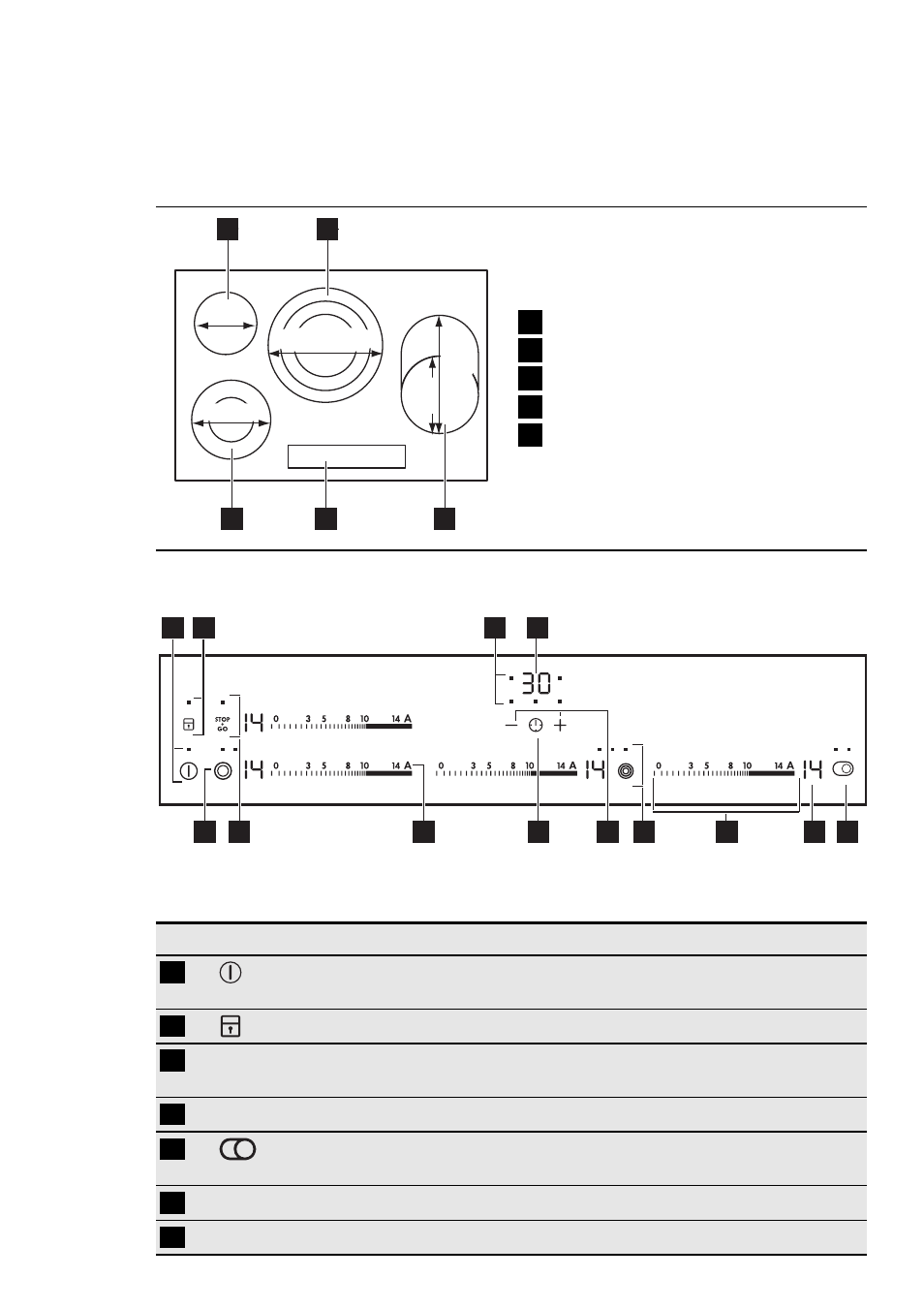

3. PRODUCT DESCRIPTION
1 2
3 5
145
mm
120/180
mm
145/210/270
mm
170
mm
265
mm
4
1
Cooking zone
2
Cooking zone
3
Cooking zone
4
Control panel
5
Cooking zone
3.1 Control panel layout
12 8 9 10 7 11 6 13 5
3 4 1 2
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
Sensor field Function
1 To activate and deactivate the appli-
ance.
2
To lock / unlock the control panel.
3
Timer indicator of the cooking
zones To show for which zone you set the
time.
4 The timer display To show the time in minutes.
5
To activate and deactivate the outer
ring.
6 A heat setting display To show the heat setting.
7 A control bar To set the heat setting.
