Features
Specifications
▲ 320 X 240 Color LCD with CCFL backlighting
and integral touchscreen
▲ 32-bit, 92Mhz RISC processor
▲ 1MB Flash program memory
▲ 4MB Flash data memory
▲ RS-485 for control of Audioaccess products
▲ RS-485 port for future use
▲ Bi-directional RS-232 (under bezel) for
programming
▲ Transmit only RS-232 port for subsystem
control
▲ RJ-45 connector for power and data
Dimensions
▲ Bezel: 6-3/8" W x 4-1/2" H x 5/16" D
(162mm X 114mm x 8mm)
▲ Mounting depth from wall surface: 1-3/4"
(45mm) without cable
▲ Wall cutout: 5-1/2" W x 4-1/16" H
(140mm x 104mm)
Wiring Information
▲ Four pair, 24 AWG (CAT5) up to approxi-
mately 250 feet (2 pairs required for RS-485
bus and power; 1 pair required for transmit-
only RS-232; 1 pair required for future use)
▲ RJ-45 connectors used for termination
▲ Exclusive, built-in text-based Librarian
function controls high-capacity sources
by selecting genre, artist and title of disc,
station or channel
▲ Controls separate RS-232-based residential
(sub) system like lighting, security or HVAC
▲ Built-in templates for basic and expanded
control of PX-700 multiroom system
with eight sources, library functions, zone
selection and scheduled events
▲ Create your own screens, import bitmaps
or use additional templates available to
customize any system
▲ Screens, navigation and actions are fully
programmable using EasyTouch II application
(Windows
® -based)
▲ Real-time clock and event scheduler for
programmable events
▲ Four mechanical, dedicated function buttons
(On/Off, Volume Up, Volume Down and
Volume Mute)
▲ IR receiver works with Audioaccess remotes
▲ Firmware is upgradeable by downloading,
using RS-232 port
▲ The outside dimensions of bezel match the
size of standard U.S. three-gang wall plate
▲ CATC mounts to any wall surface, tabletop
enclosure or other suitable flat surface
▲ Custom metal mounting kit and custom
metal back box available separately, for
use in new construction or retrofit
▲ RS-232 interface board available separately
▲ Intelligent RS-232 interface for bi-directional
communication and feedback available
separately
▲ Ambient light sensor automatically dims
backlight
A Harman International Company
Audioaccess
250 Crossways Park Drive
Woodbury, NY 11797
www.audioaccess.com
516.496.3400
Fax: 516.682.3510
©2004 Harman International Industries, Incorporated
Part No. AACATCPI6/04

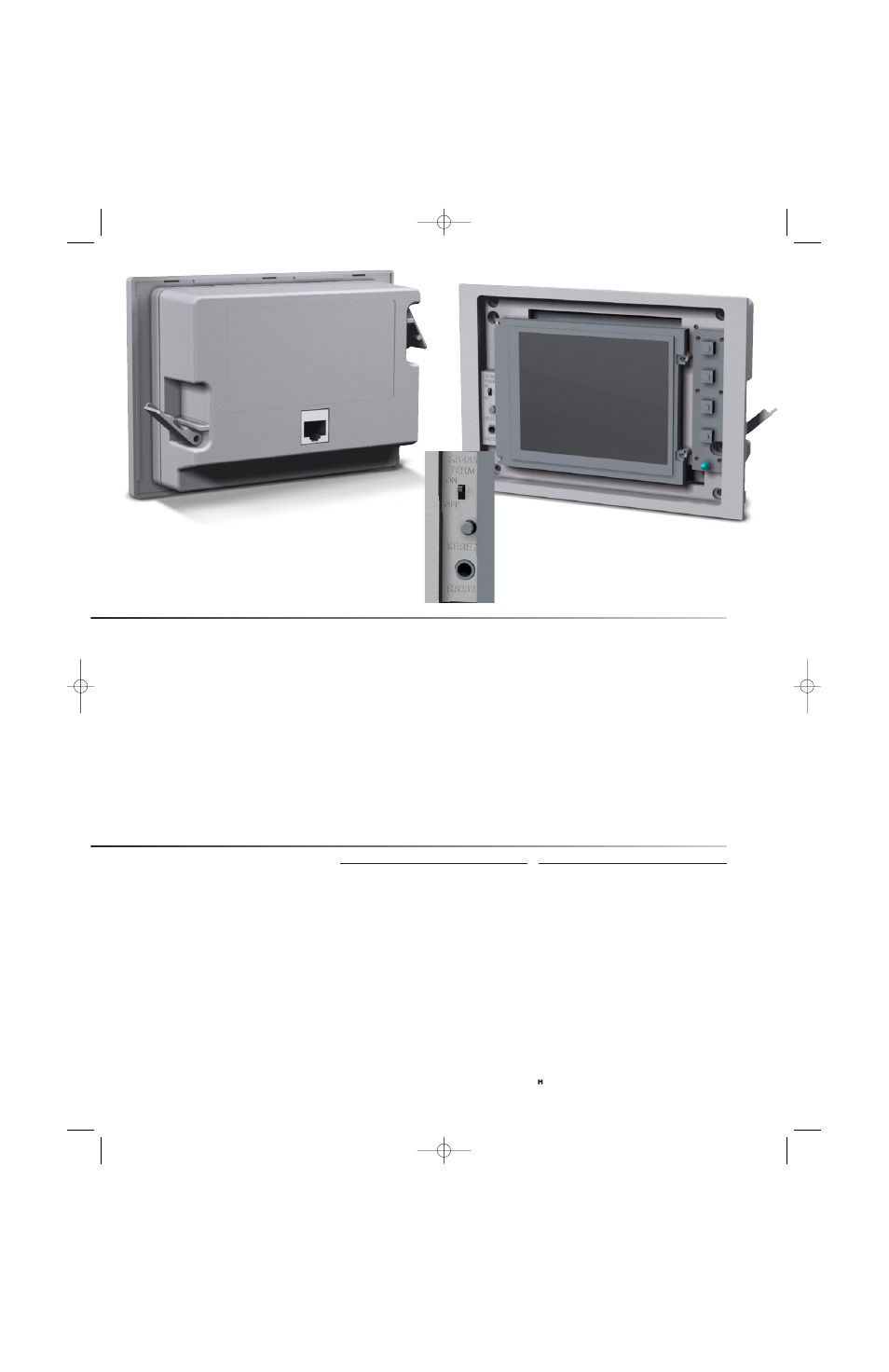

The touchscreen mounts in a wall opening using
the built-in wing clamps. It may be used with or
without the optional metal mounting kit.
Note: A standard US three-gang back box
does not fit the CATC.
The front bezel can be removed for programming and
touchscreen resetting, and to adjust the termination switch
without the need to remove the unit from the wall. Optional
bezels in Black, Ivory, White or Almond may be purchased
separately to replace the standard white bezel.
