SPECIFICATIONS
Model Number
AD9410 . . . . . . . . . . . . . . . . . . . . . .Monitor, Color, 10 in, 280 TV lines,
NTSC/PAL
Operational
Picture Tube . . . . . . . . . . . . . . . . . .10-inch diagonal, 90° deflection angle,
flat-square type CRT
Resolution . . . . . . . . . . . . . . . . . . .280 TV lines
Video Input
Level . . . . . . . . . . . . . . . . . . . . . . . .0.5 to 2.0 Vp-p, composite
Impedance . . . . . . . . . . . . . . . . . .HiZ/75 Ω, auto termination
Audio Output . . . . . . . . . . . . . . . .0.8 watt
Front Panel Controls
Tint . . . . . . . . . . . . . . . . . . . . . . . . . .Adjusts picture to obtain most natural
colors (skin tones)
Color . . . . . . . . . . . . . . . . . . . . . . . .Adjusts depth of saturation of color; used
to select individual viewer's preference in
color saturation
Bright . . . . . . . . . . . . . . . . . . . . . . . .Adjusts overall shading of picture and
establishes picture brightness
Contrast . . . . . . . . . . . . . . . . . . . . .Adjusts relationship between light and
dark areas of picture
Sharp . . . . . . . . . . . . . . . . . . . . . . . .Adjusts sharpness of picture
Volume +/- . . . . . . . . . . . . . . . . . . .Adjusts volume higher and lower
Video A/B . . . . . . . . . . . . . . . . . . . .Selects video input A/B
Power . . . . . . . . . . . . . . . . . . . . . . . .Turns monitor on and off
Connectors
Video A & B . . . . . . . . . . . . . . . . . .Two sets of BNC pairs for loop-through
operation
Audio A & B . . . . . . . . . . . . . . . . . .Two sets of RCA connectors for
loop-through operation
AC Input Connector . . . . . . . . . . .IEC 320 type connector for AC input
Power Cables
North American . . . . . . . . . . . . .NEMA 5-15P, UL
Continental European . . . . . . .CEE7/7, GS
Electrical
Voltage . . . . . . . . . . . . . . . . . . . . . . .100 to 240 VAC (50/60 Hz)
Power . . . . . . . . . . . . . . . . . . . . . . . .50 watts
Mechanical
Dimensions (H x W x D)
Cabinet . . . . . . . . . . . . . . . . . . . . .26.0 x 26.5 x 33.0 cm
(10.24 x 10.43 x 13.0 in)
Rack Mount . . . . . . . . . . . . . . . . .31.1 x 48.3 x 29.5 cm
(12.25 x 19.0 x 11.63 in)
Unit Weight . . . . . . . . . . . . . . . . . .8.5 kg (18.76 lbs)
Shipping Weight . . . . . . . . . . . . . .10 kg (22.08 lbs)
Color . . . . . . . . . . . . . . . . . . . . . . . .Black
Construction . . . . . . . . . . . . . . . . .Metal cabinet
Environmental
Operating Temperature . . . . . . . .0° to 40° C (32° to 104° F)
Humidity . . . . . . . . . . . . . . . . . . . . .90% RH (non-condensing)
Storage Temperature . . . . . . . . . .-10° to 50° C (14° to 122° F)
Regulatory
Emissions . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Subpart B, Class A
CE: EN55022, Meets Canadian ICES-003
Meets Australian and New Zealand EMC
Immunity . . . . . . . . . . . . . . . . . . . .CE: EN50130-4, Meets Australian and
New Zealand EMC
Safety . . . . . . . . . . . . . . . . . . . . . . . .UL1410, CSA 22.2, No. 1
CE: EN60065, DHHS: Rules 21,
Subchapter J ROV
Options
AD9410RK . . . . . . . . . . . . . . . . . . .Rack Mount Kit (single rack)
AMERICAN DYNAMICS AD9410 10-INCH COLOR MONITOR
VS266-02 01/03 L
©2003 Sensormatic Electronics Corporation
Product specifications and availability subject to change without notice.
Certain product names mentioned herein may be trade names and/or registered
trademarks of other companies.
SHARP TINT COLOR BRIGHT CONTRAST VOLUME
DATA
VIDEO POWER
AC IN
Video A
IN
VIDEO LINE AUDIO LINE
OUT
IN
A
B
OUT
Video B
IN OUT
CAUTION
A
B

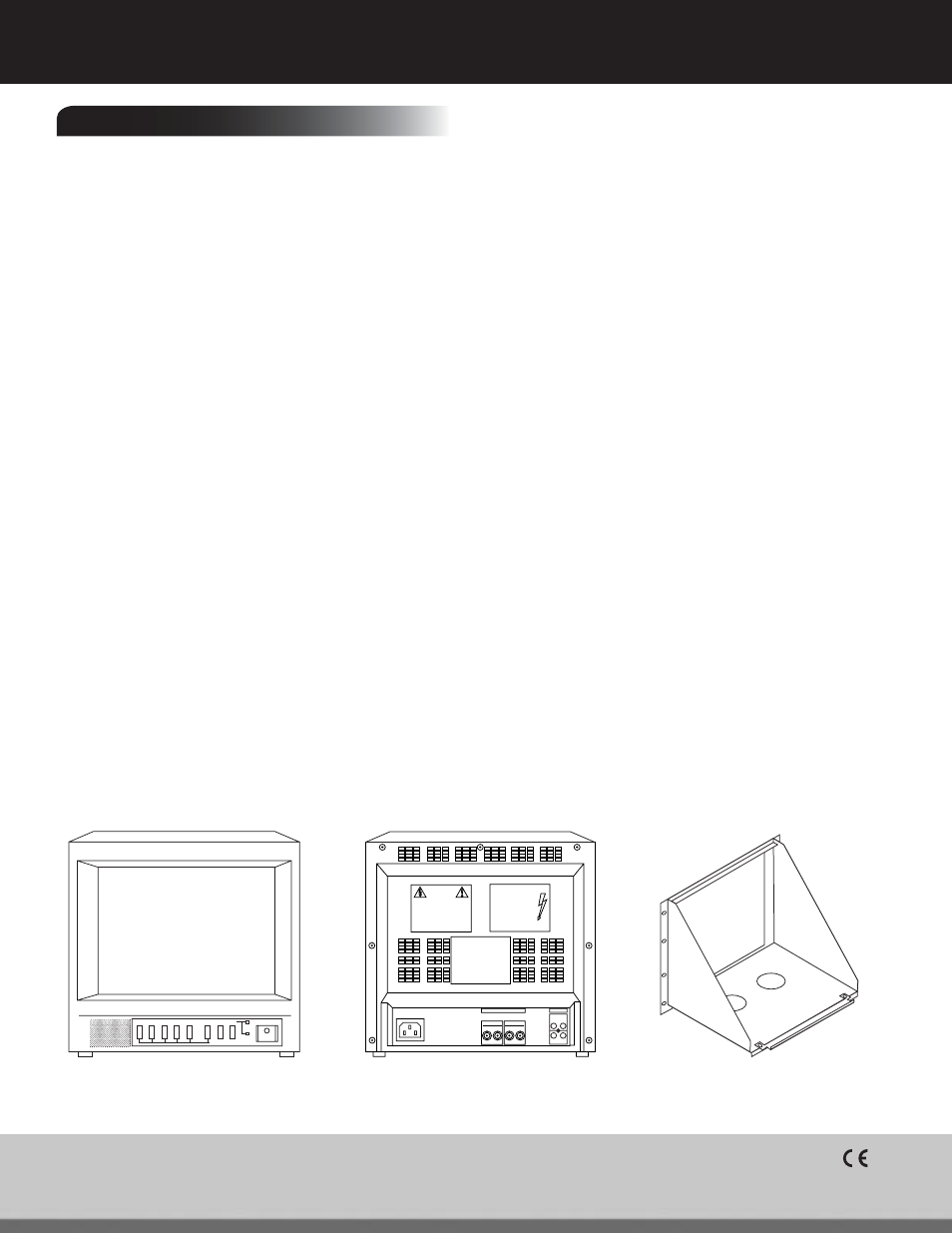

Front Panel Rear Panel AD9410 Rack Mount Kit
