HD TV Antenna
Quick Start Guide ATVA100
qsg Q10122 Copyright © 2009 Aluratek, Inc. All Rights Reserved.
aluratek.com
CAUTIONS:
1. Please read through the instructions before use.
2. Please keep this unit out of reach of children and pets.
3. Please unplug the power cord if you plan to travel for some time or to stop use of this unit for a long time.
!
HOW TO USE:
1. Connect the “TO TV” cable for signal output from this unit into the signal input jack on the back of your HD/ATSC TV
or digital converter box
2. Insert the power plug from this unit into a power outlet
3. (Optional) Connect an external antenna for signal input to the “EXT ANT” jack on the unit.
4. Use the control knob on the back panel of this unit to power on the device and to adjust the gain.
* For receiving VHF signals, first turn the antenna to a proper position, then adjust the antenna’s length and angle to
improve the receiving effect. Adjust the control knob to obtain a proper gain for best receiving effect.
* For receiving UHF signals, first adjust the frame down or to the sides to a proper position, then adjust the control knob
to obtain a proper gain for best receiving effect.
5. Place the antenna in an area for best optimal viewing. Picture quality may vary from channel to channel.
Package Contents:
• Compatible TV or TV receiver
Requirements:
• HD TV Antenna
(all cables required attached)
• Quick Start Guide
• Warranty / Registration Card
• Amplified indoor HDTV antenna to receive UHF and VHF channels
• Optimized to receive all free local HD TV channels
for HDTV ready TV or TV with a digital converter box
• High gain antenna can be oriented horizontally or
vertically for optimum reception
• 1 Year limited warranty
Features:
Type: Indoor
Interface: Connects directly to your
television or digital converter box
Amplified: Yes
Frequency Range: 40-230, 450-862 MHz
HDTV reception: Yes
Channel: VHF: 1-12 UHF: 13 to 69
Gain: VHF: 32dB UHF: 40dB
Output / Input resistance: 75 ohms
Power voltage: AC110V ~ 60Hz
Specifications:

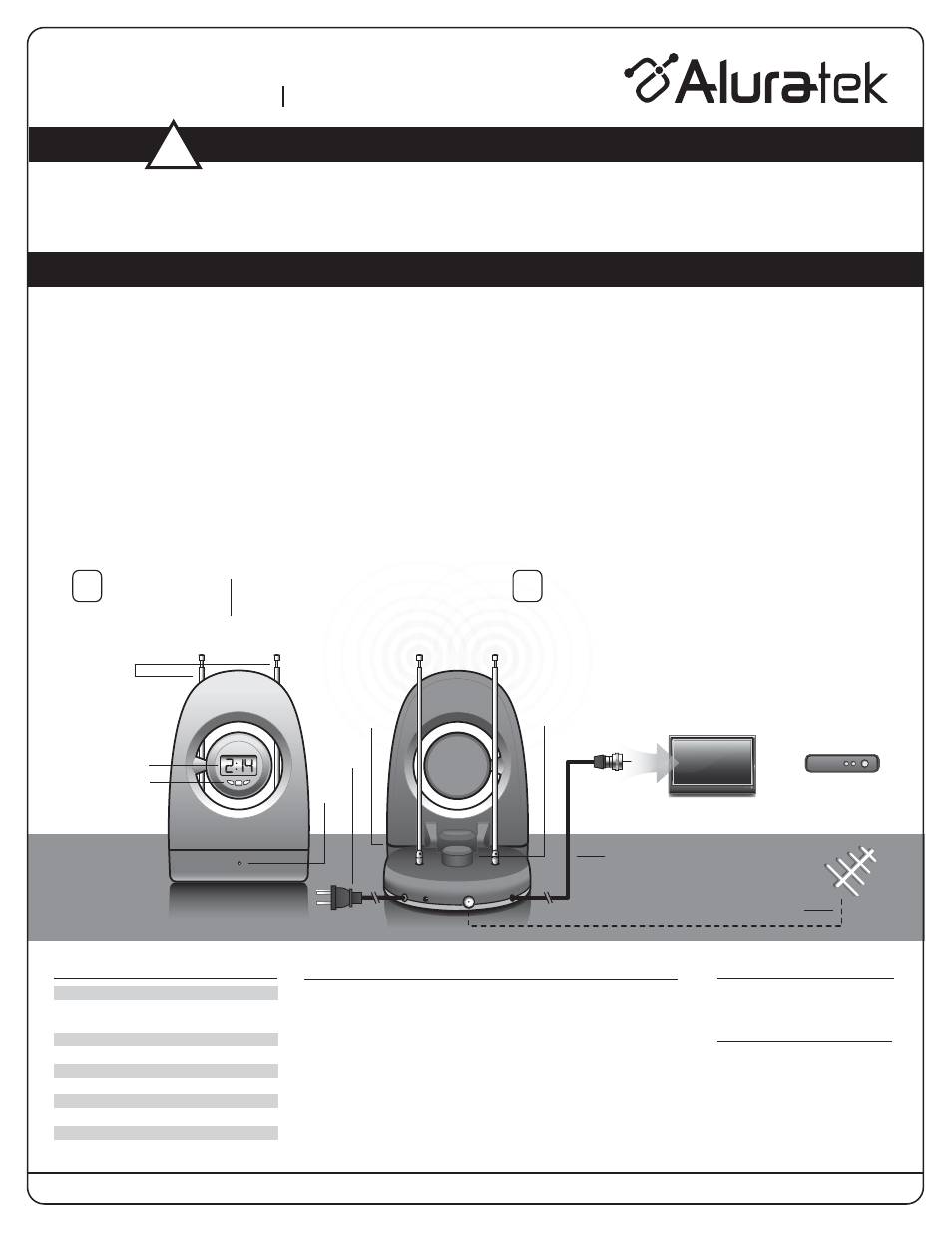

1
CONNECT
2
VIEW ALL AVAILABLE UHF, VHF
& LOCAL HD TV BROADCASTS
Simply connect the Signal Output
Cable (OUT TO TV) directly to your
TV or digital converter box.
Digital clock
Signal Output Cable (OUT TO TV)
Clock setting
buttons
Antennas
LED
Power
Cord
Signal Input Cable
(EXTERNAL ANTENNA IN)
(Optional)
ON / OFF Knob,
GAIN adjustment
OR
HD/ATSC TV Digital
Converter Box
Tiltable for
optimal viewing
