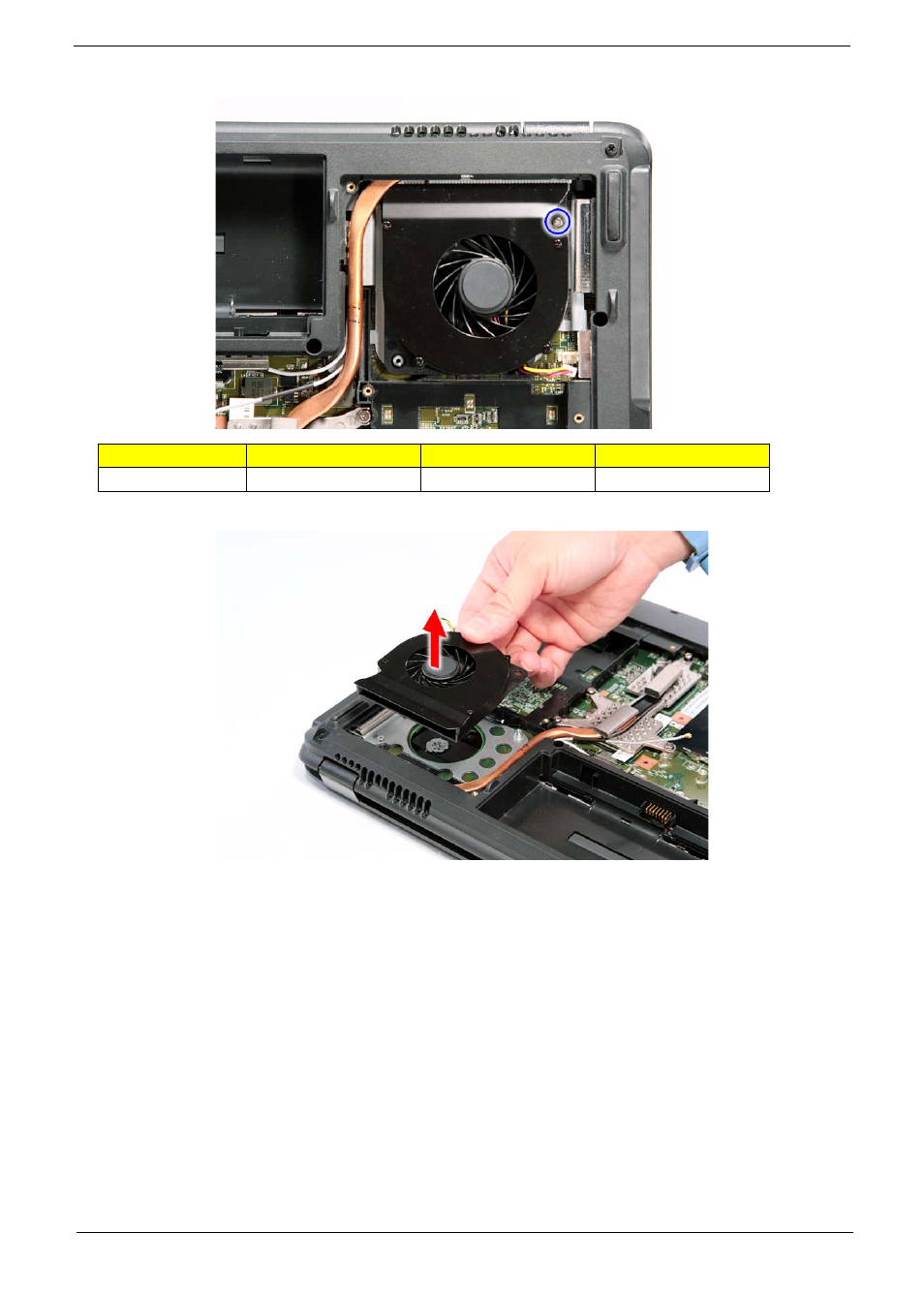

4. Remove the one screw (C) securing the heatsink fan module in place.
5. Carefully lift up the heatsink fan module.
Removing the CPU Heatsink Module
1. See “Removing the Battery Pack” on page 50.
2. See “Removing the Lower Cover” on page 52.
3. See “Removing the Heatsink Fan Module” on page 64.
Step Size (Quantity) Color Torque
1 M2 x L3 (1) Silver 1.6 kgf-cm
