INSTALLATION INSTRUCTIONS

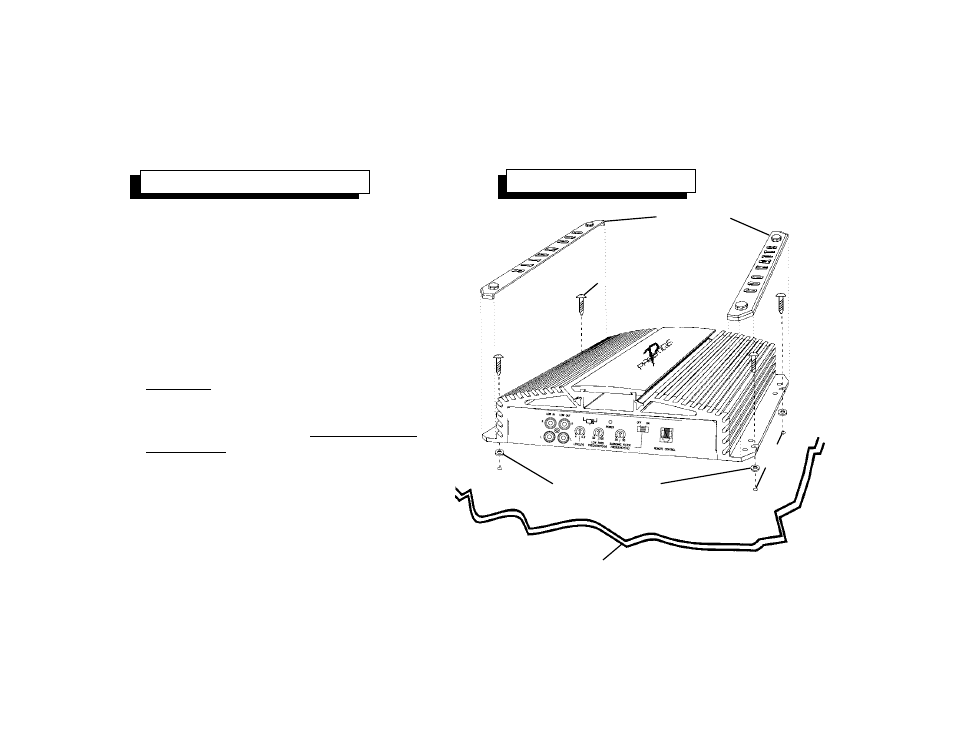

INSTALLATION DIAGRAM

1. Select a mounting area where the amplifier will

have sufficient air circulation for proper cooling.
Inadequate air circulation will cause the
temperature of the amplifier to rise and will
trigger the thermal protection mode.

2. Place the amplifier on the mounting surface and

mark the locations of the four mounting holes as
shown in the illustration at the right.

3. Remove the amplifier and drill a 1/8" hole at each

of the four locations.

CAUTION:

CAUTION: Before drilling the holes, look at the
underside of the mounting surface. Always
check carefully to avoid drilling into wiring,
braces, fuel or brake lines. CHECK BEFORE

CHECK BEFORE

YOU DRILL !

4. Apply a self-adhesive rubber washer to the

bottom of the amplifier at each of the 4 screw
locations. Secure the amplifier to the mounting
surface using the self-tapping screws provided.

5. Attach the plastic end panels to the amplifier

by pressing them into position on the amplifier.

-3-

MOUNTING SURFACE

1/8" DIA.

HOLE

SELF-TAPPING SCREW

END PANELS

RUBBER WASHERS

REMOTE CONTROL

OFF 12dB 18dB

OFF 18dB/60Hz

BASS BOOST

12dB/45Hz
