PMW6220
22” wide screen open frame LCD
Pressing this button, a new window will be popped-up at the location when the touchscreen was
mapped to area for this touch system to guide the user do 25 points calibration. User should follows
the guide to touch and hold the blinking X symbol in the calibration window until it does not blink to
make sure that the utility can gather enough data for computation. In addition, a time line bar is shown
in the bottom of the window to indi- cate time elapsed. If the touchscreen was not touched before the
time line bar going to right end, the calibra- tion task will be terminated automatically.
5. Draw Test

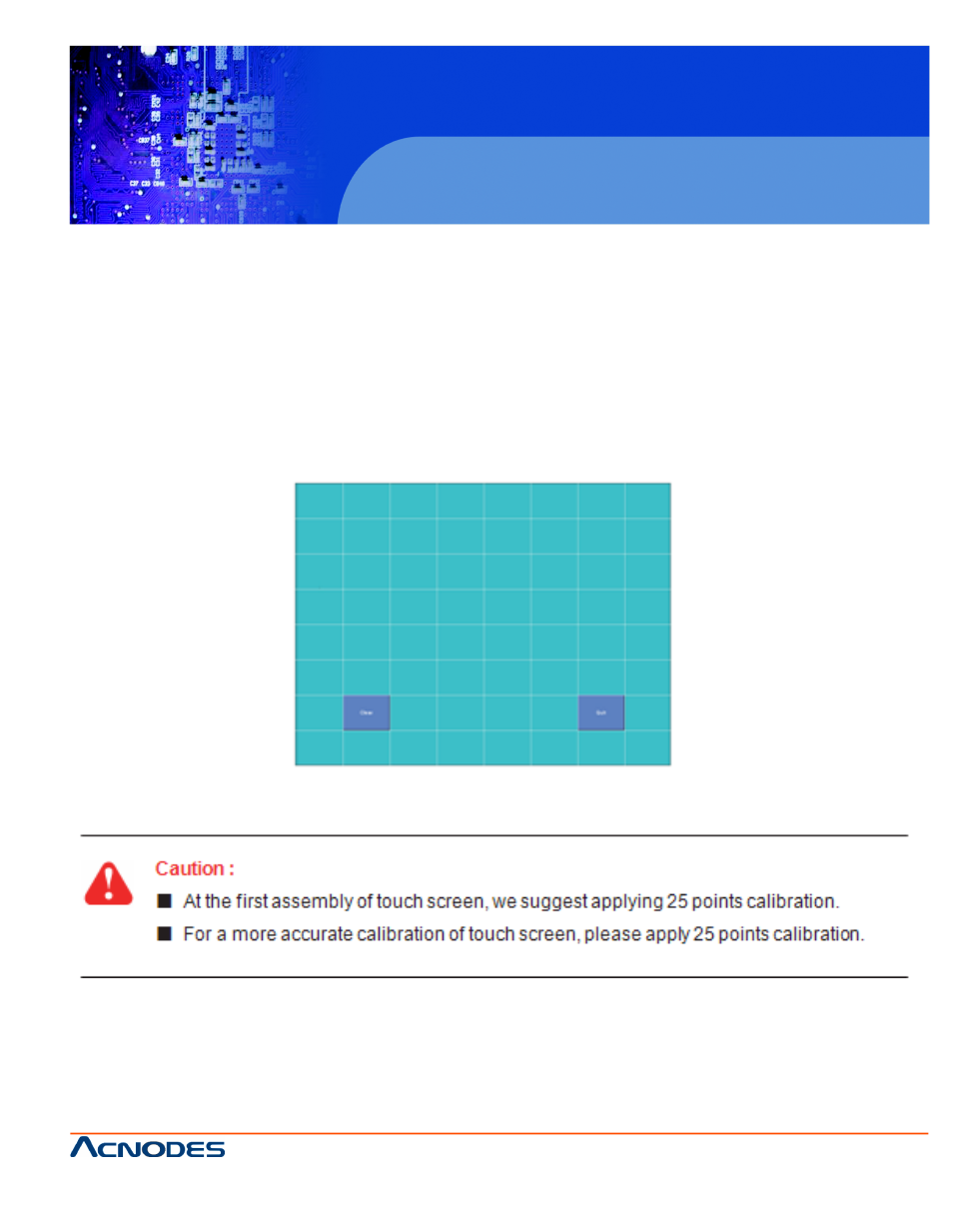

This function is used for accuracy and performance check. Press this button and a new pop up window
will be popped up in the location where the touchscreen was mapped to the touch system as below,
User can press the Clear button to clear the window. Press Quit button to terminate this draw test.
