2. CONNECTIONS
continued …

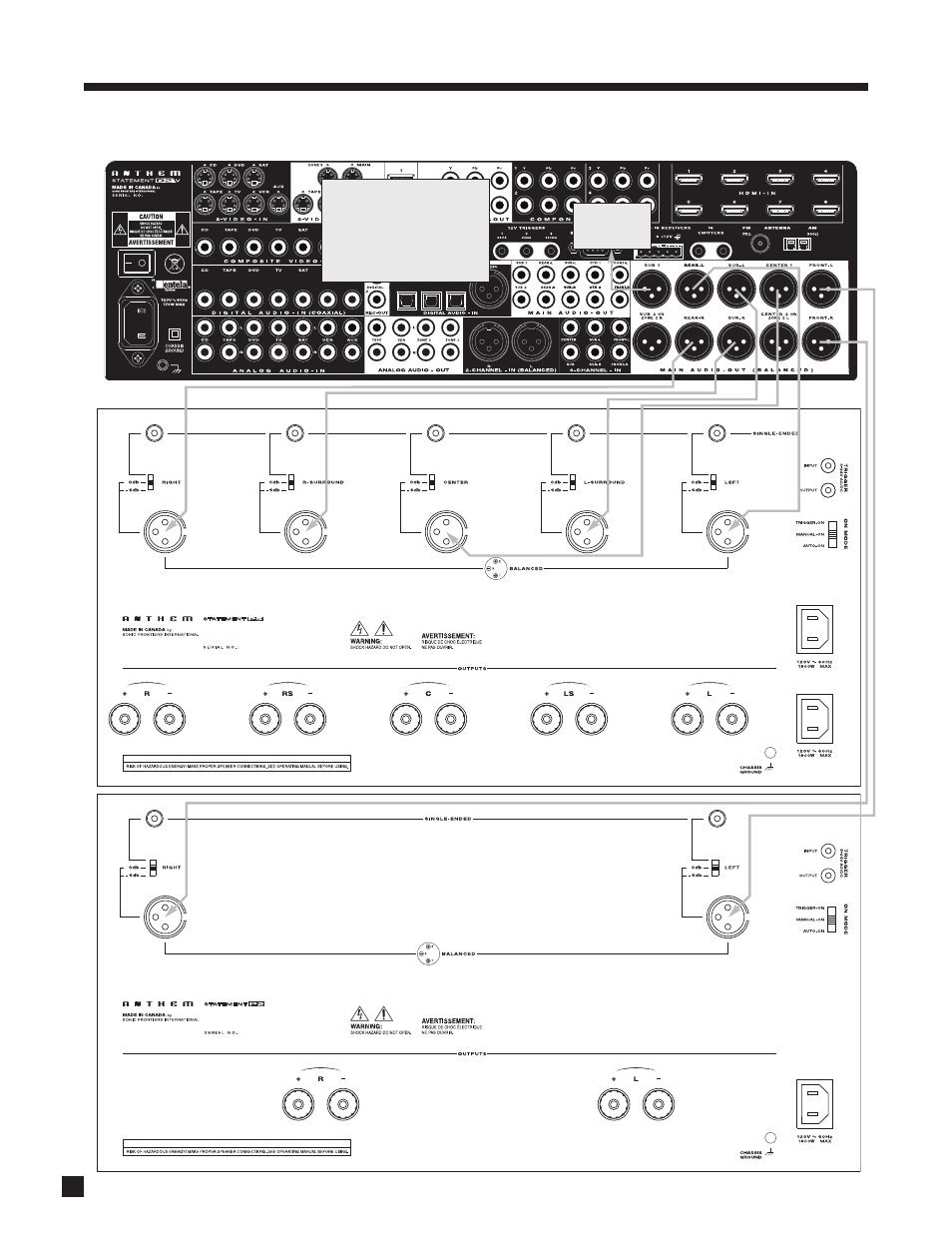

Example 3: Processor to amplifiers and subwoofer
(Balanced connection shown, single-ended is similar)
WARNING
To powered
subwoofer
WARNING
Trigger Setup Suggestion:
If it is not necessary to have both
amplifiers turned on when stereo
sources are playing, set triggers
to turn on only the 2-channel
amplifier when a stereo source is
selected (see section 3.11).
