SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
Ratings
Natural Gas
Propane Gas
Orifice Screw
Orifice Screw
Cooktop
Wok burner
15,000Btu/hr internal 110
82
15,000Btu/hr internal 71
49
external 166
external 93
Large Burner
12,000Btu/hr
170
70
12,000Btu/hr
106
38
Medium Burners
9,200Btu/hr
150
53
8,000Btu/hr
84
31
Small Burner
5,000Btu/hr
107
43
4,200Btu/hr
61
22
Gas burner inputs based on Gross Calorific Value
Ovens
Left hand Multifunction Oven
Right hand Fan Oven
Fan element
2.5kW
2.5kW
Top element
1.2kW
Browning Element
1.15kW
Bottom element
1.0kW
Broiler
2.3kW
Maximum total electrical load at 240V 7.4kW*
*approximate total including oven lights, oven fan etc.

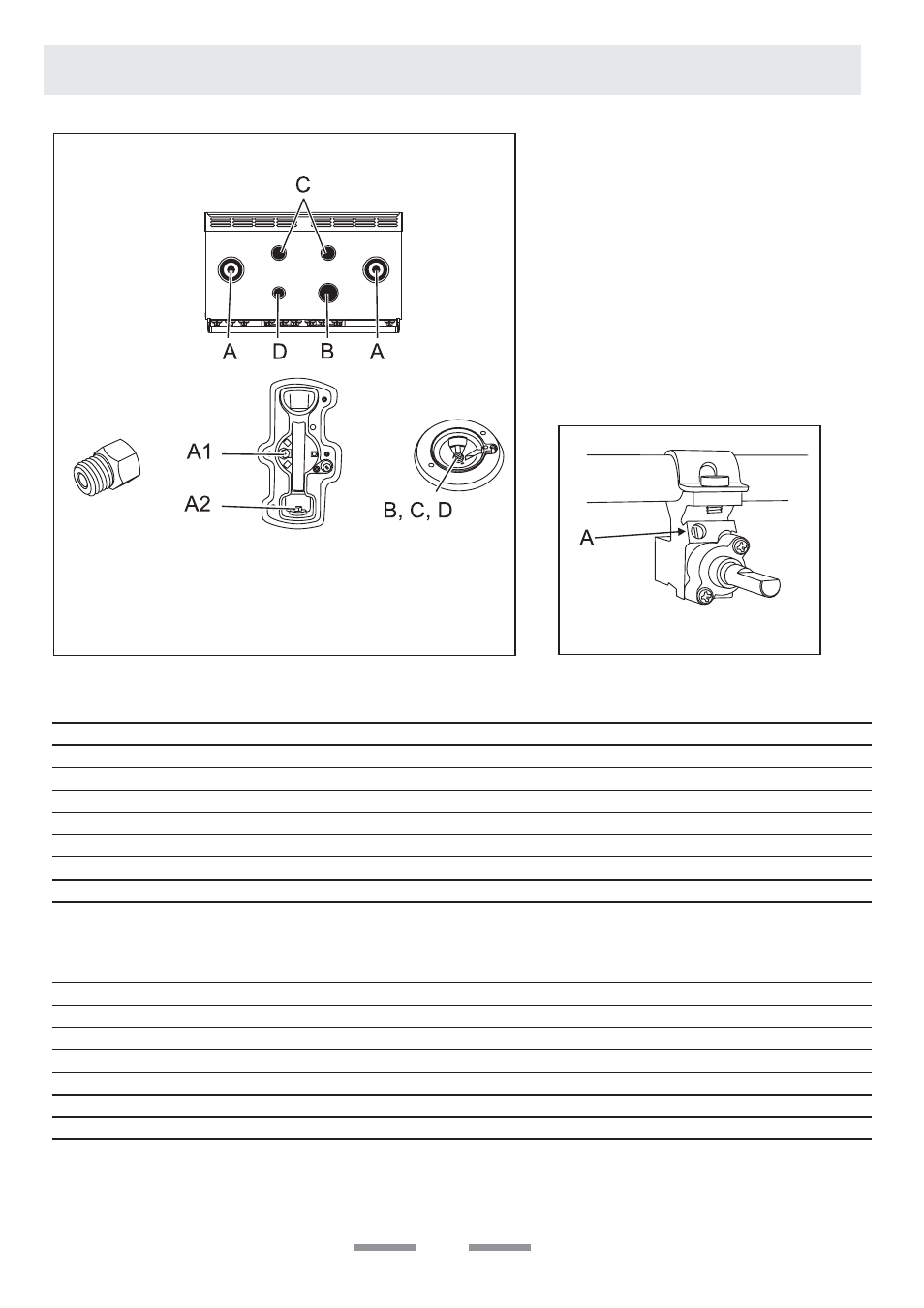

Orifices
A Wok burner
B Large Burner
C Medium Burners
D Small Burner
A valve bypass screw
