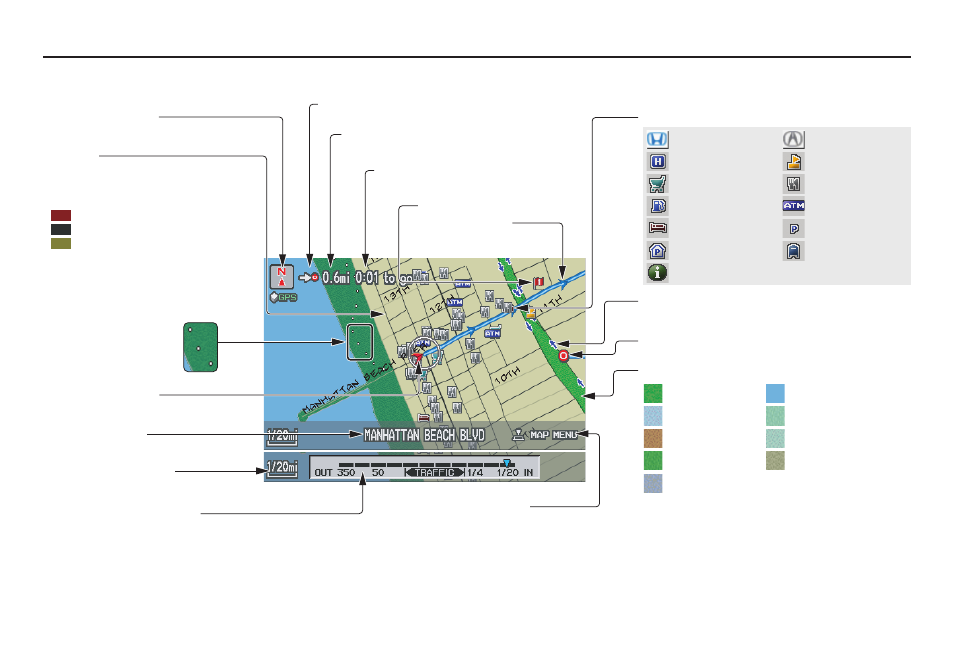

Map Screen Legend
Map Features
NOTE:
If you move the Interface Dial over an area (map
features shown above), the name is displayed on
the screen.
: Park
: Hospital
: Shopping Mall
: Golf Course
: Water Area
: Cemetery
: University
: Indian Reservation
: Airport/Stadium/Business
Acura Dealer
School
Restaurant
ATM
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information
Landmark Icon - Generic (see page 62)
Destination Icon (see page 61)
Map Scale Adjustment
(Mile or km per half-inch appears
only when you zoom in or out by
rotating the Interface Dial knob.)
(see page 60)
NOTE:
See
Map Legend on the Information screen for further explanation (see page 80).
Current Map Scale
(see page 60)
Current Street
(see page 6)
Vehicle Position
(see page 68)
“Breadcrumbs”
(see Off-road
Tracking on page 67)
Streets
(see Map Overview on page 6, or
Unverified Area Routing on
page 92)
Interstates or Freeways
Verified Streets
Unverified Streets
Direction of Destination (when en route)
(see page 56)
Map Orientation
(see page 61)
Distance to Destination
(see page 56)
Time to Destination
(see page 56)
Waypoint (see page 71)
Blue Line
Calculated route
(see page 53)
Map Menu (see page 56)
(Push in on the Interface Dial to view.)
One-Way Traffic Icon (1/20 mile scale
only) (see page 62)
Driving to Your Destination
