AVE 2PSWT User Manual
Page 4
4

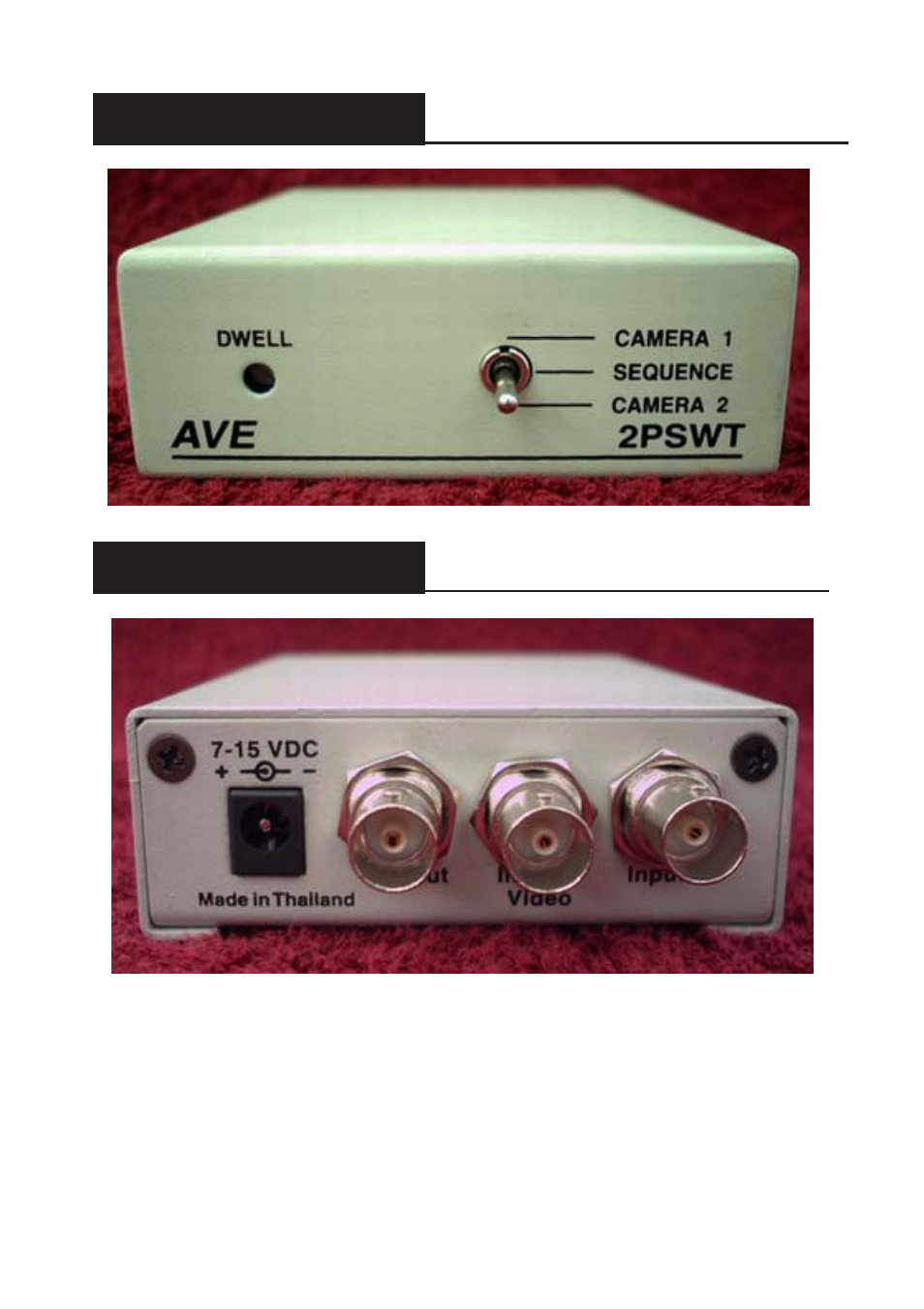

2PSWT Front Panel
2PSWT Rear Panel
Note:
The 2PSWT front panel toggle switch merely switches +voltage for
camera #1 and ground for camera #2. An external relay or transistor
could be user connected to this switch internally to produce a low
cost alarming 2 position switcher. Remove the toggle switch and
wire the alarm trigger to the center position and to ground on the
PCB.
