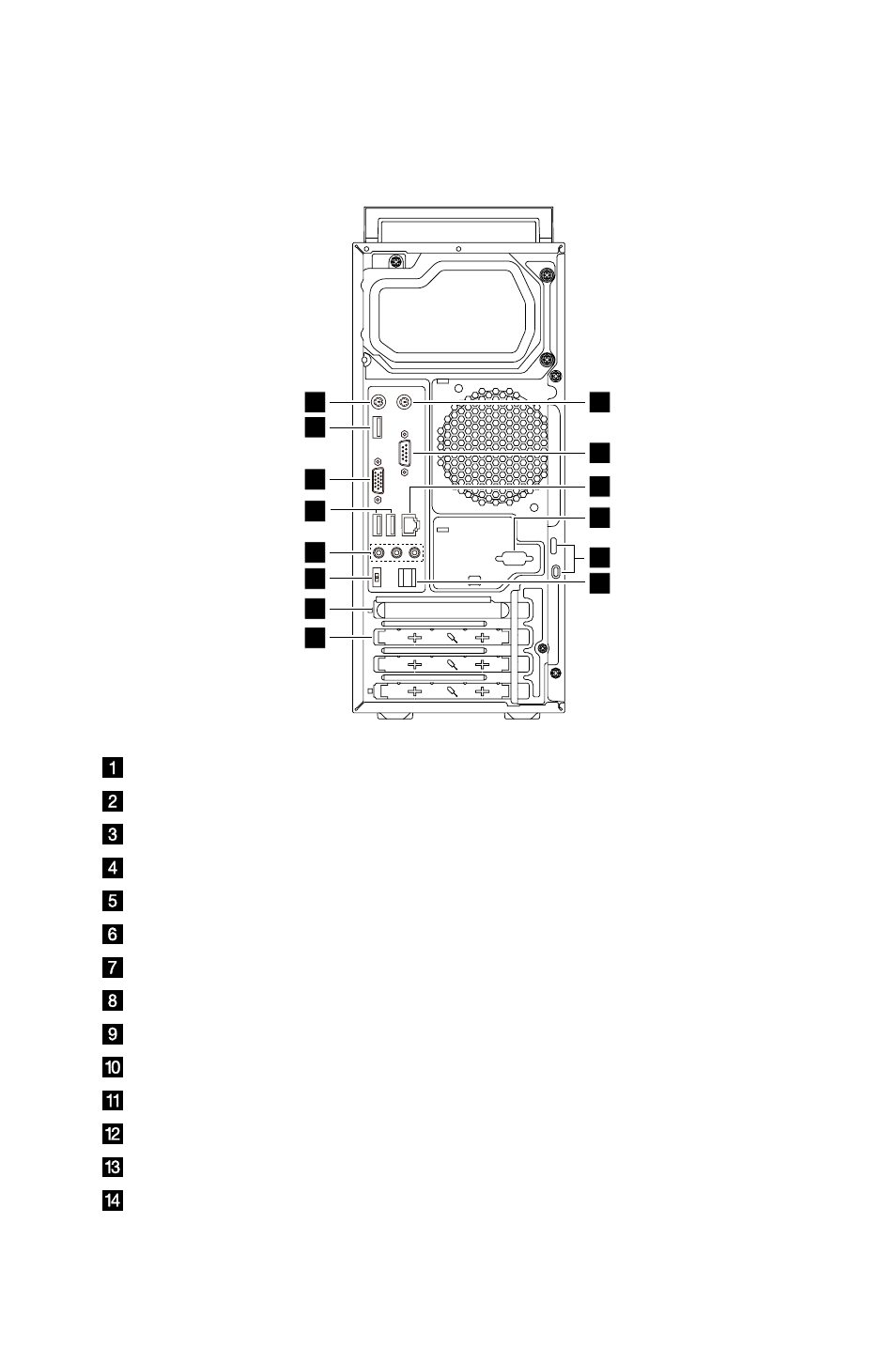

C.C Rear view of the chassis
(If the rear view configuration shown in this chapter is different from the rear of your
computer, please refer to the rear of your computer.)
1 2
6
8
10
11
12
13
14
7
9
3
5
4
PS/2 keyboard connector
PS/2 mouse connector
USB 3.0 connector
Serial port
VGA monitor connector
USB 2.0 connectors (2)
Ethernet connector
Audio connectors
Optional serial port
Integrated cable lock (Kensington lock) slot & Padlock loop
Power connector
Cable clip
PCI Express X 16 graphics card slot
PCI Express X 1 card slot
