56 Navigation System

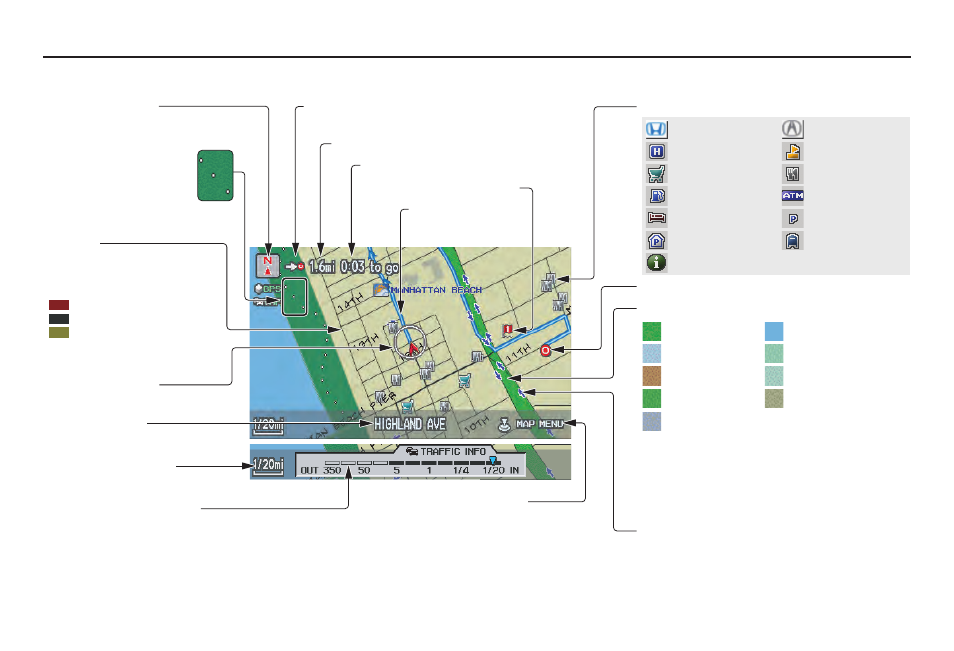

Map Screen Legend
Acura Dealer
School
Restaurant
ATM
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information
Landmark Icon - Generic (see page 64)
Destination Icon (see page 64)
Map Features
NOTE:
If you move the Interface Dial over an area (map
features shown above), the name is displayed on
the screen.
: Park
: Hospital
: Shopping Mall
: Golf Course
: Water Area
: Cemetery
: University
: Indian Reservation
: Airport/Stadium/Business
Map Scale Adjustment
(Mile or km per half inch appears
only when you zoom in or out by
rotating the Interface Dial knob.)
(see page 62)
NOTE:
See
Map Legend on the INFO screen ( Other ) for further explanation (see page 90).
Current Map Scale
(see page 62)
Current Street
(see page 71)
Vehicle Position
(see page 71)
“Breadcrumbs”
(see Off-road Tracking
on page 70)
Direction of Destination (when en route)
(see page 58) Map Orientation
(see page 63)
Distance to Destination (see page 58)
Time to Destination (see page 58)
Waypoint (see page 75)
Blue Line
Calculated route
(see page 55)
Map Menu (see page 58)
(Push in on the Interface Dial to view.)
One-Way Traffic Icon
(1/20 mile scale only) (see page 64)
Streets
(see Map Overview on
page 6, or Unverified Area
Routing on page 102)
Interstates or Freeways
Verified Streets
Unverified Streets
Driving to Your Destination
