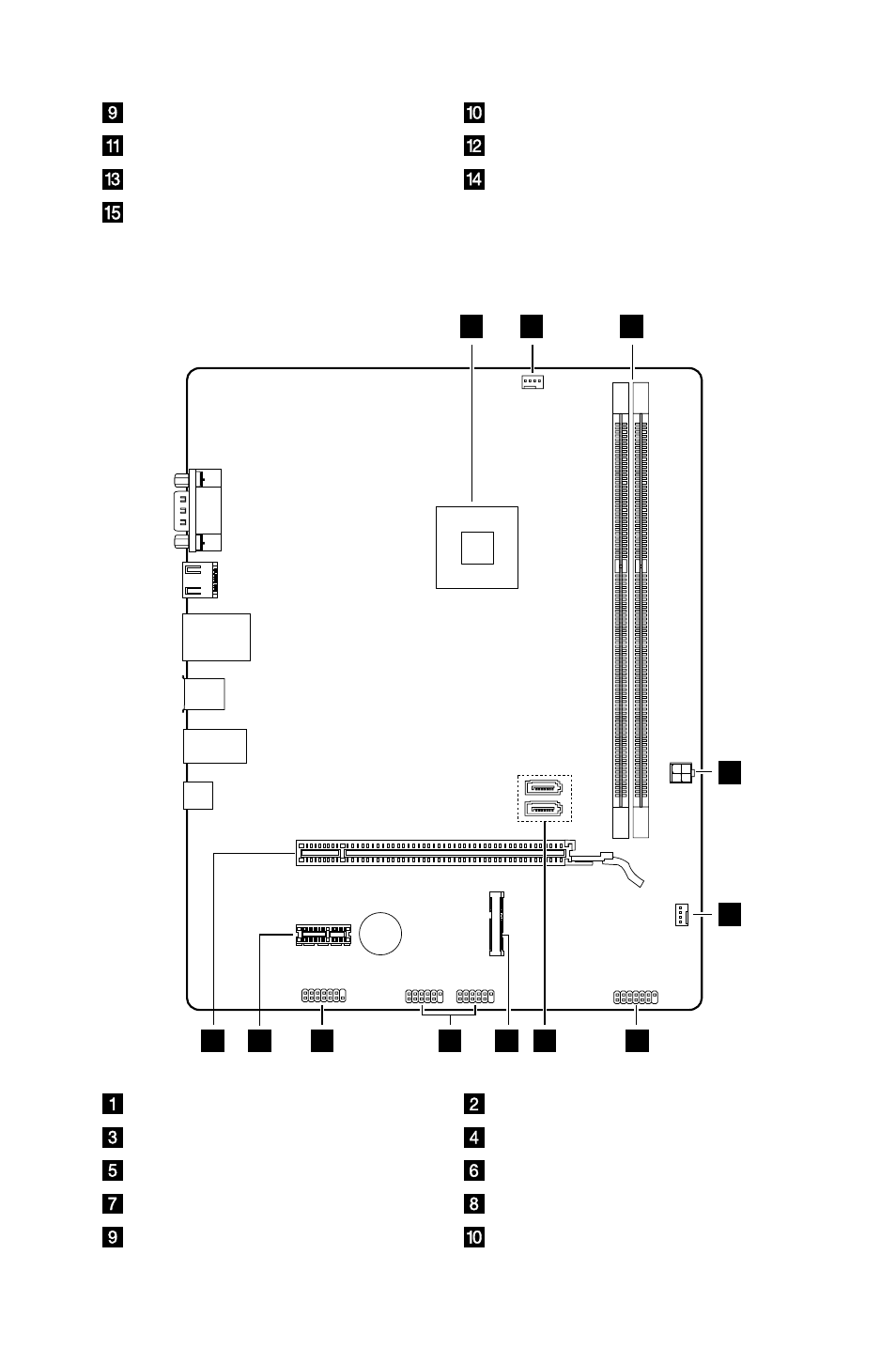

Hardware clear CMOS jumper

LPC debug header

Front panel connector

Power fan header

Front USB connectors (2)

Mini PCI-E slot

Front audio connector

Lenovo H50-05

2

1

3

4

5

6

7

8

11

10

12

9

Microprocessor and heat sink

Microprocessor fan header

Memory slots (2)

Hard disk drive power connector

Clear CMOS jumper

Front panel connector

SATA connectors (2)

Mini PCI-E slot

Front USB connectors (2)

Front audio connector
