MAIN

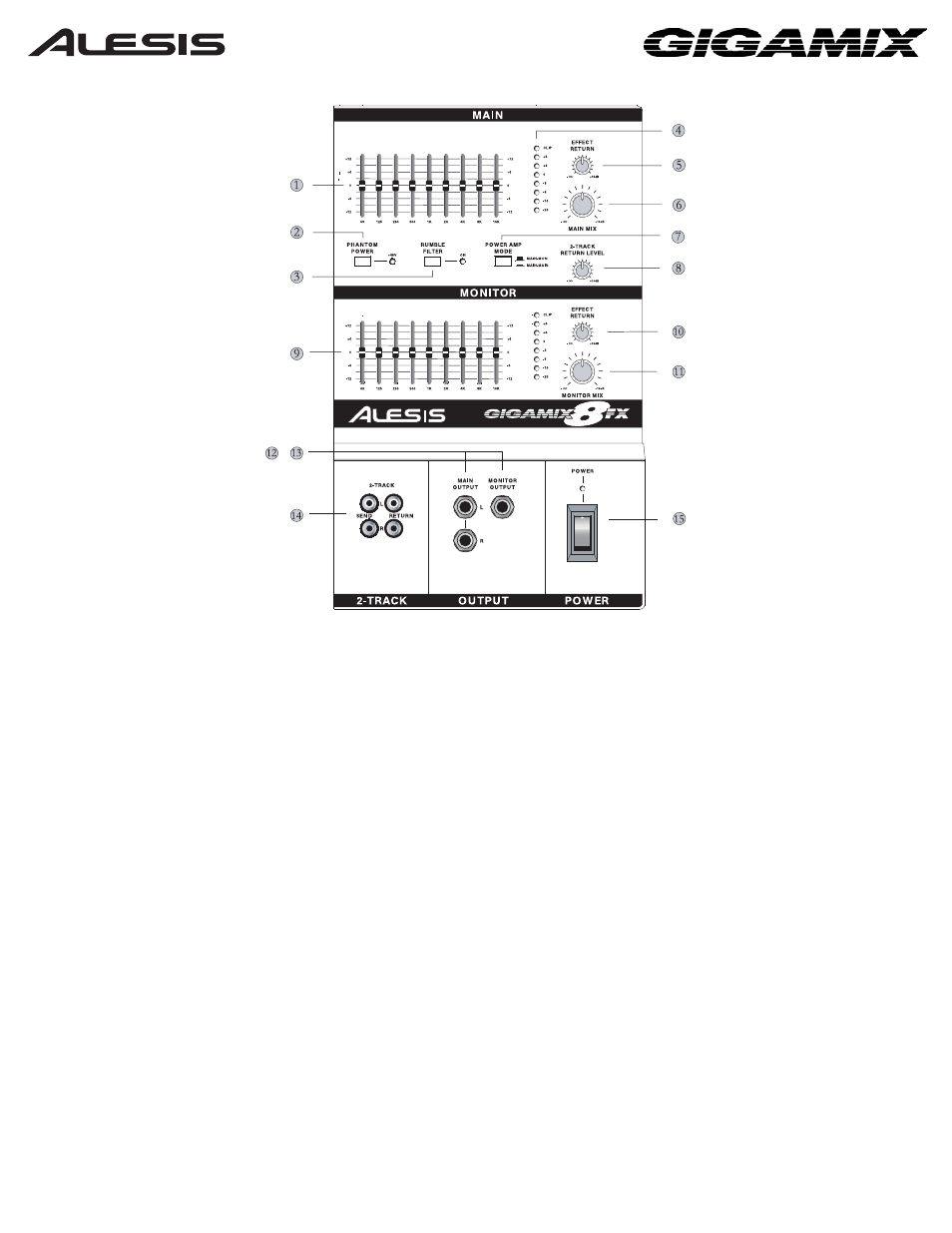

1. The Graphic Equalizer shapes the sound of the Main mix before it is sent to the main

speakers.

2. The PHANTOM POWER button provides a 48-volt source for microphones.

3. The RUMBLE FILTER helps filter out unwanted low-frequency noise.

4. The LEVEL/CLIP LEDs give visual feedback about the overall volume of the GigaMix.

5. The EFFECT RETURN knob controls the level of the effects for the Main mix.

6. The MAIN MIX knob boosts or reduces the level of the signal being sent to the Main

outputs.

7. The POWER AMP MODE button (GigaMix 6FX and -8FX only) toggles the output status.

8. The 2-TRACK RETURN LEVEL knob controls the level of the incoming 2-track signal.

MONITOR (GigaMix 6FX and -8FX only)

9. The Graphic Equalizer shapes the sound of the Monitor mix before it is sent to the

monitors.

10. The EFFECT RETURN knob controls the level of the effects for the Monitor mix.

11. The MAIN MIX knob boosts or reduces the level of the signal being sent to the

monitors.

OUTPUT

12. The MAIN OUTPUT provides a non-powered version of the Main mix.

13. The MONITOR OUTPUT provides a non-powered version of the Monitor mix.
