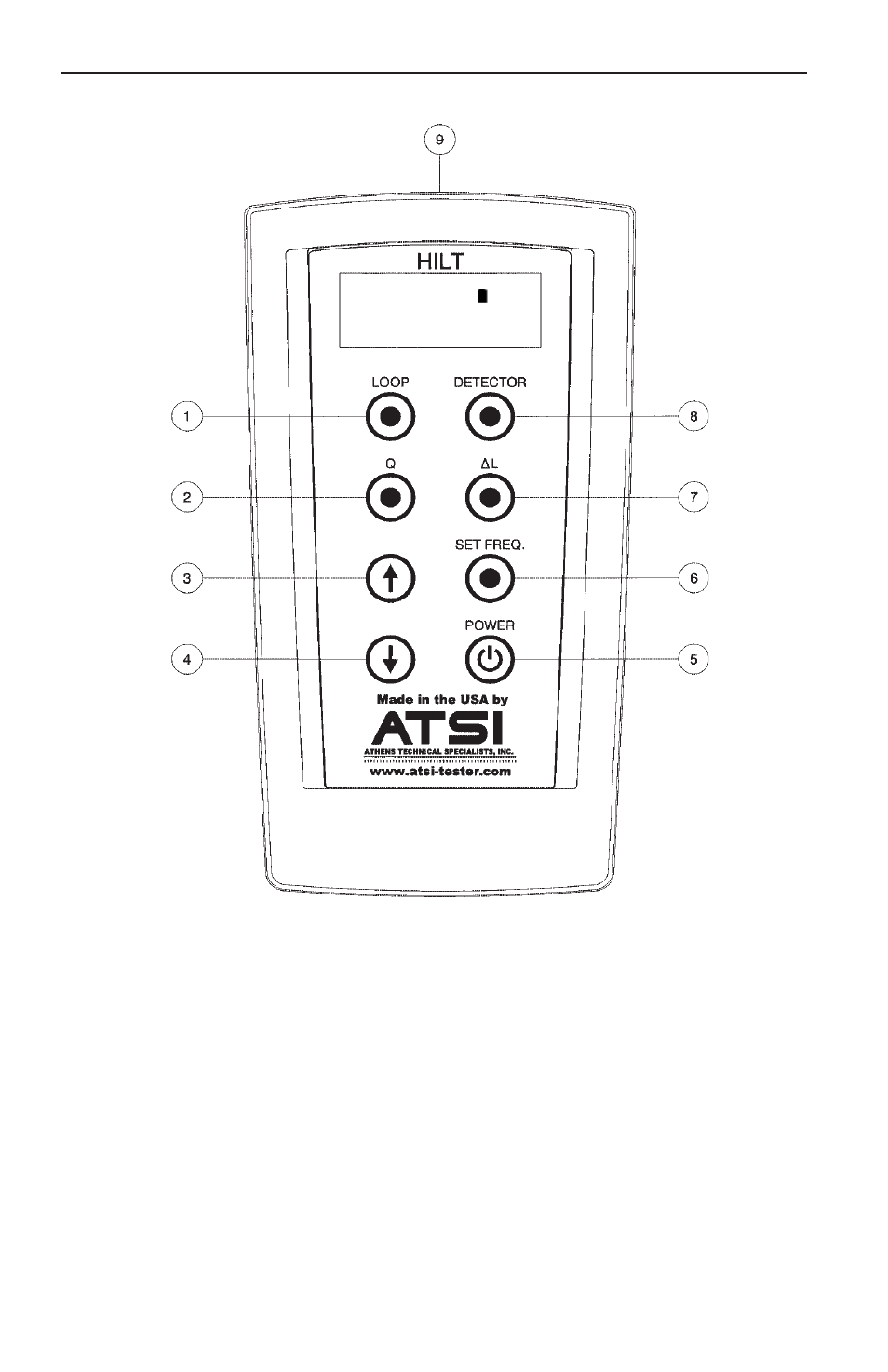

Overview of HILT 9000 Controls
1. LOOP: Measures R
DC
, L, and
Q. If Q>15, use Q push-
button to obtain actual value.
2.
Q: Measures high Q values
(when
Q is >15).
3. Used in SET FREQ mode to
increase frequency by 1KHz.
4. Used in SET FREQ mode to
decrease frequency by 1KHz.
5. POWER: Turns unit On/Off.
6. SET FREQ: Selects operating
frequency to measure L &
Q.
7.
∆∆∆∆∆
L: Measures change of
inductance.
8. DETECTOR: Measures
operating parameters of the
loop system: V
P-P
, Oscillating
frequency, and mode.
9. Input: Color coded input
connectors.
Ready: 100%
Select Function
Figure 1
