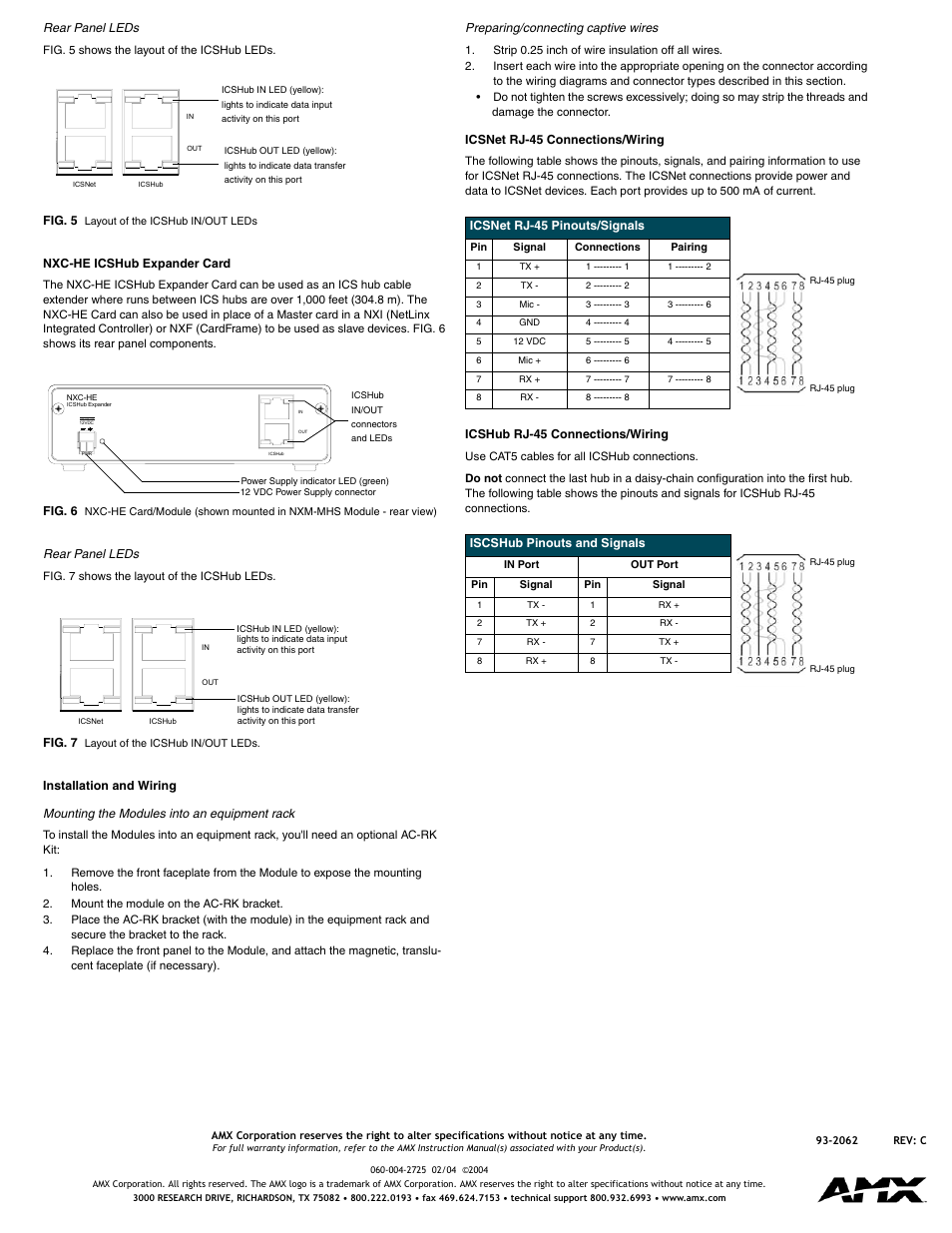

Rear panel leds, Nxc-he icshub expander card, Installation and wiring – AMX NetLinx Hub Cards and Modules NXC-NH/HS/HE User Manual

Page 2: Mounting the modules into an equipment rack, Preparing/connecting captive wires, Icsnet rj-45 connections/wiring, Icshub rj-45 connections/wiring

Rear panel leds, Nxc-he icshub expander card, Installation and wiring | Mounting the modules into an equipment rack, Preparing/connecting captive wires, Icsnet rj-45 connections/wiring, Icshub rj-45 connections/wiring | AMX NetLinx Hub Cards and Modules NXC-NH/HS/HE User Manual | Page 2 / 2 Rear panel leds, Nxc-he icshub expander card, Installation and wiring | Mounting the modules into an equipment rack, Preparing/connecting captive wires, Icsnet rj-45 connections/wiring, Icshub rj-45 connections/wiring | AMX NetLinx Hub Cards and Modules NXC-NH/HS/HE User Manual | Page 2 / 2
