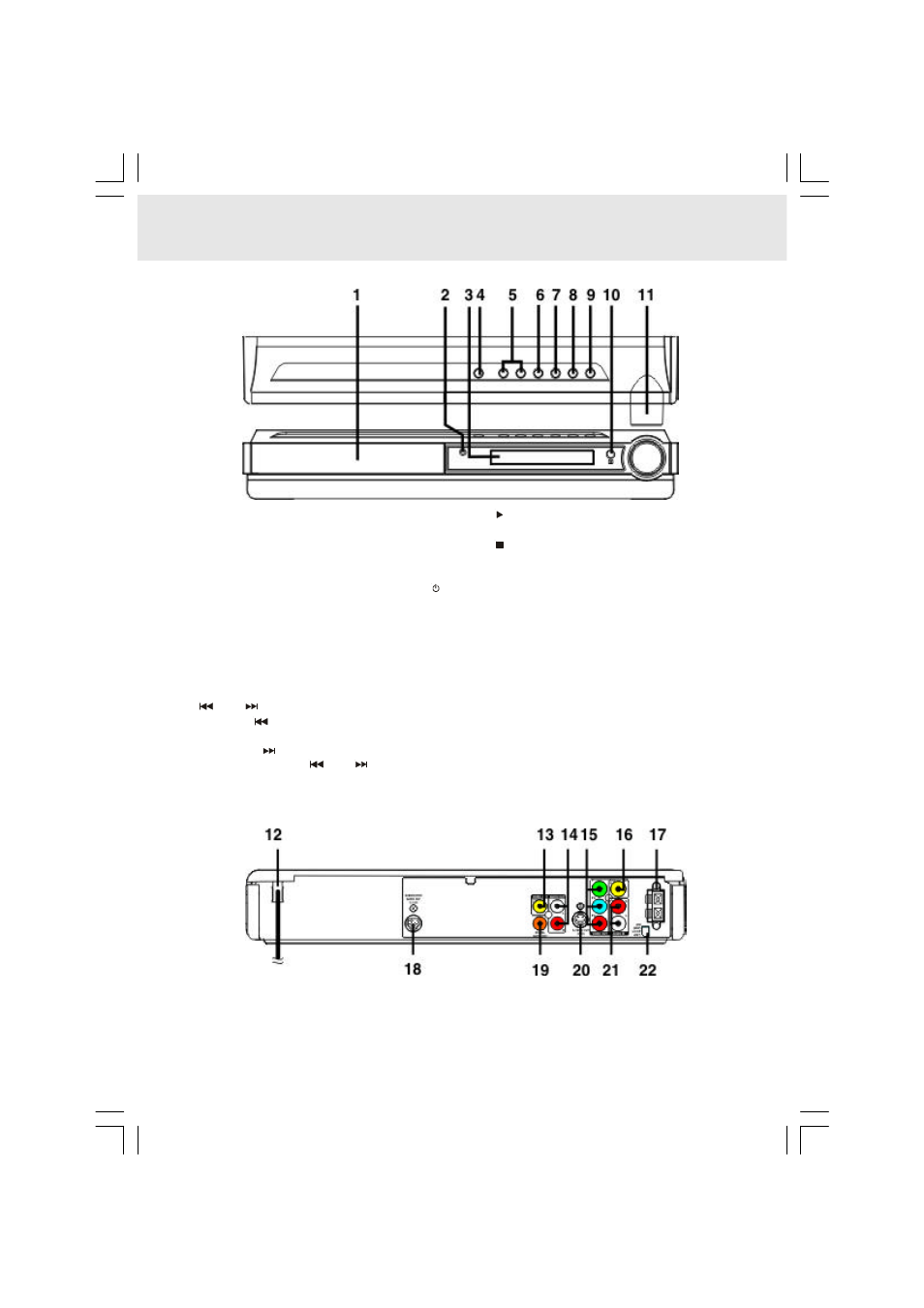

E - 8
Rear Panel
PARTS AND FUNCTIONS
12) Power cord
13) VIDEO OUT jack
14) Left/Right AUDIO OUT jacks
15) COMPONENT VIDEO jacks (Y, P
B /C B , P R /C R )
16) VIDEO IN (VCR) jack
17) FM ANTENNA jack
18) SUBWOOFER AUDIO OUT jack
19) DIGITAL AUDIO OUT jack
20) S-VIDEO OUT jack
21) AUDIO IN (R/L) jacks
22) AM(MW) LOOP ANTENNA terminal
Note:
Screen saver - If no button is pressed within 2 minutes,
the function will active, If you want to return the normal
screen, press any button.
1) Disc tray
Open or close tray by pushing OPEN/CLOSE button.
Place a disc on the disc tray, label side up.
2) STANDBY indicator
When the Unit is turned on by pressing the
STANDBY/ON button. If you press the STANDBY
I / /
ON button on the remote control, the Unit will turn
off and go into standby mode. The light will continue
to illuminate.
3) Display window
Display system information.
4) OPEN/CLOSE button
Use to open and close the disc tray.
5) SKIP buttons
Press SKIP button to go back to previous chapters/
tracks.
Press SKIP
button to advance to chapters /
tracks. Press and hold SKIP button to begin
fast scan. Four speeds are available.
Scan all available radio stations.
6) PLAY button
Press to start or resume playback
7) STOP button
Stop playing a disc.
8) FUNCTION button
Select the source.
9) STANDBY/ON button
Turn the power on or off.
10) Remote sensor
Receive the remote control unit signals.
11) VOLUME controls
Change the loudness of the sound from the speakers
connected to the Unit.
Front and Top Panel
