Lenovo IdeaCentre B350 All-in-One User Manual
Page 57
d.
Converter cable
e.
Power board cable

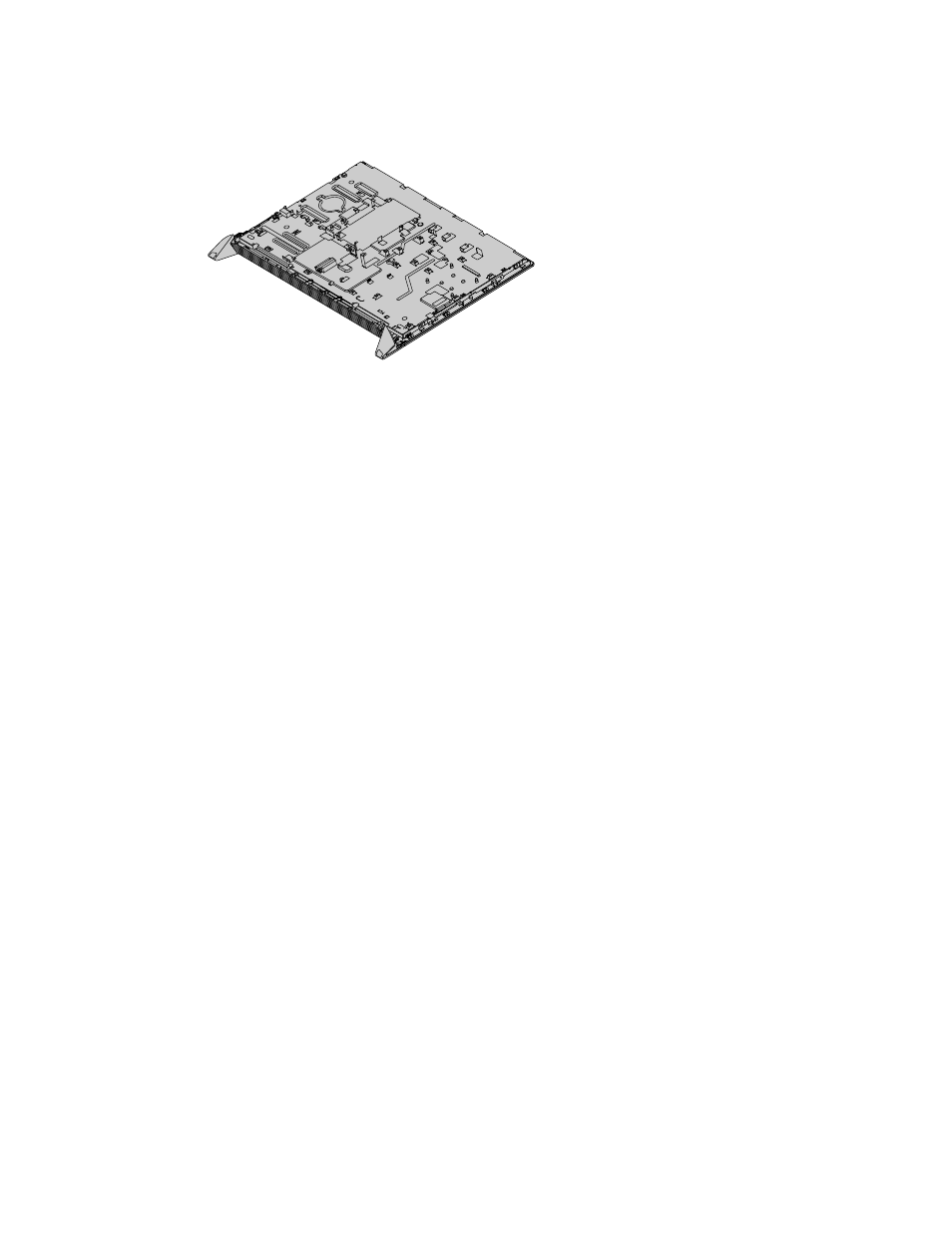

Step 22. To install the new the LED panel module:
a.
Attached the two feet to the chassis and secure them with the two screws.
b.
Attach the motherboard to the chassis, and secure it with the screws.
c.
Attach the Wi-Fi antenna cables to the front bezel.
d.
Install the hard disk drive and optical disk drive data and power connectors to the chassis.
e.
Attach the touch control board, camera, Wi-Fi card, rear I/O module, TV-Tuner card, power
supply, speaker system, CPU, heat-sink module, memory, system fan, converter board, hard
disk drive, to the motherboard and chassis.
Step 23. Reattach the EMI cover, middle cover, optical drive, computer stand and the rear cover.
Chapter 8
.
Replacing hardware
51
