OmniSwitch 6600 family switches are advanced 10/100 based stackable layer 3 workgroup
switches that provide wire rate L2+ switching, L3 routing and advanced services with high
availability for IP communications and mission-critical environments. A compact form factor, a
rich set of features and a high availability design makes the OS6600 a great choice for the
following applications:

Enterprise workgroups/LAN wiring closets

Edge deployments and branch offices

Converged voice and data environments

Power over Ethernet

100BaseFX fiber to the desktop

The OmniSwitch 6600 family consists of the OmniSwitch 6600 and OmniSwitch
6602 series switches. The OmniSwitch 6600 provides 24/48 10/100 ports in
a 1.5U form factor with two expansion slots for optional two port Gigabit
stacking modules and/or two port fiber or copper Gigabit uplinks and an
internal slot on the back of the chassis for pluggable backup power supply.

OmniSwitch 6600-24 - 24 10/100 RJ45 ports

OmniSwitch 6600-48 - 48 10/100 RJ45 ports

OmniSwitch 6600-U24 - 24 SFP based 100BaseFX ports that accept

industr y standard 100BaseFX optics.

OmniSwitch 6600-P24 - 24 10/100 RJ45 ports with standards-based

PoE (uses external backup power supply)

New to the OS6600 family is the reengineered OS6602 series that is based
on the OS6600, but comes in a new 1U design and has a fixed configuration
that includes two ports of SFP (small form plugware) for Gigabit connectivity
and two ports for stacking built in. The OS6602 is completely interoperable
with the OS6600 including a mixed stack virtual chassis.

OmniSwitch 6602-24 - 24 10/100 RJ45

OmniSwitch 6602-48 - 24 10/100 RJ45

The Alcatel enterprise 10/100 LAN offering also includes the value based
10/100 L2+ stackable switches OmniStack 6124 and 6148.

Complementing the OS6600 and OS6100 10/100 fixed configuration
switches, the OmniStack 6300 series is the first Alcatel fixed configuration
Gigabit Ethernet 10/100/1000 to the desktop series of switches.

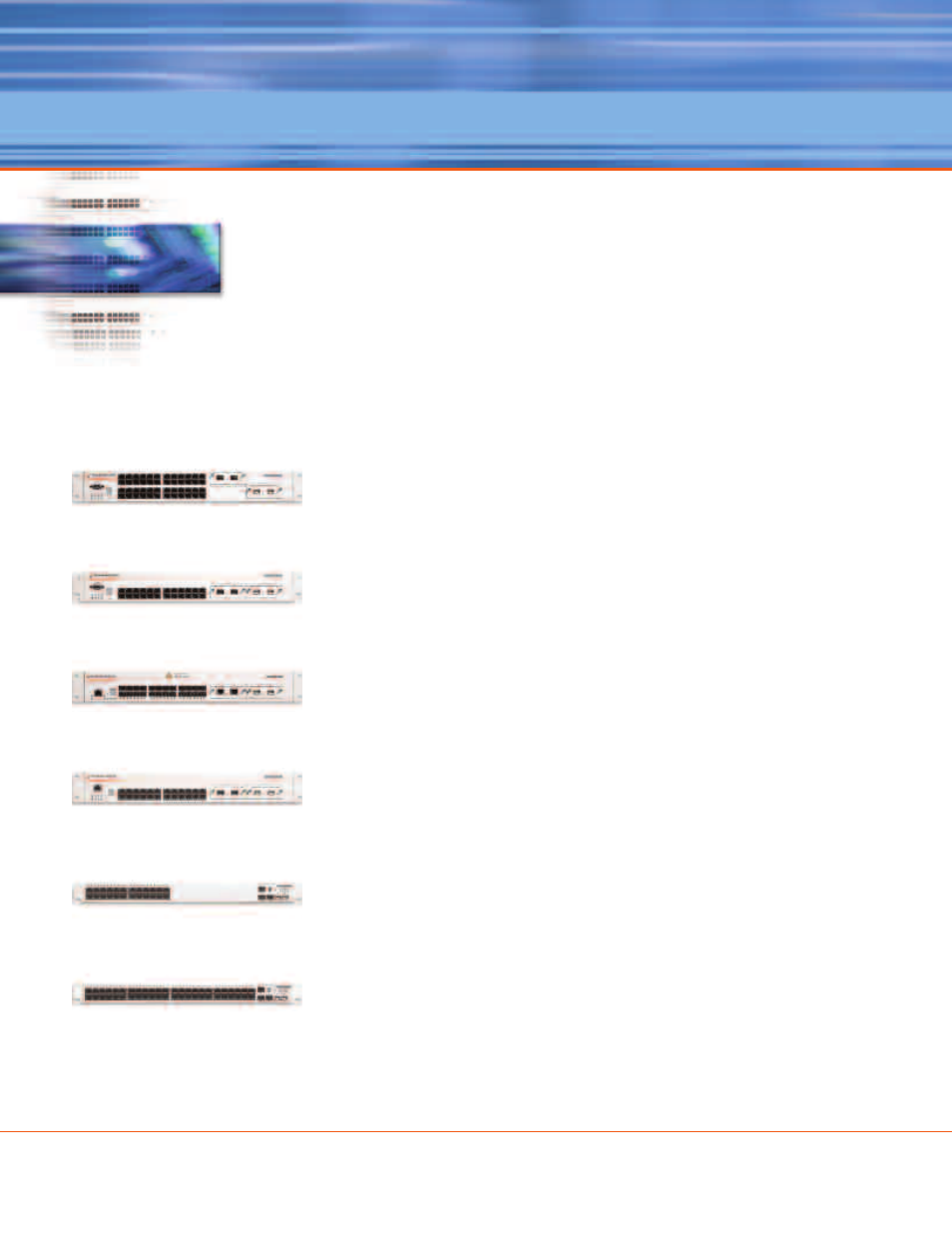

OmniSwitch OS6600-24

OmniSwitch OS6600-48

OmniSwitch OS6600-P24

OmniSwitch OS6600-U24

OmniSwitch OS6602-24

OmniSwitch OS6602-48
