Connector
Description
Microphone connector
Used to attach a microphone to your computer when you want to record sound or if
you use speech-recognition software.
USB connector
Used to attach a device that requires a USB connector, such as a USB keyboard, a
USB mouse, a USB scanner, or a USB printer. If you have more than six USB
devices, you can purchase a USB hub, which you can use to connect additional
USB devices.
VGA in control
Used to enable the VGA in connector after you attach your computer to a VGA
monitor connector on a second computer when you can use your computer in
monitor mode.
Locating connectors, controls, and indicators on the rear of your
computer
Figure 2 “Rear connector locations” on page 3 shows the locations of the connectors on the rear of your
computer. Some connectors on the rear of your computer are color-coded to help you determine where to
connect the cables on your computer.

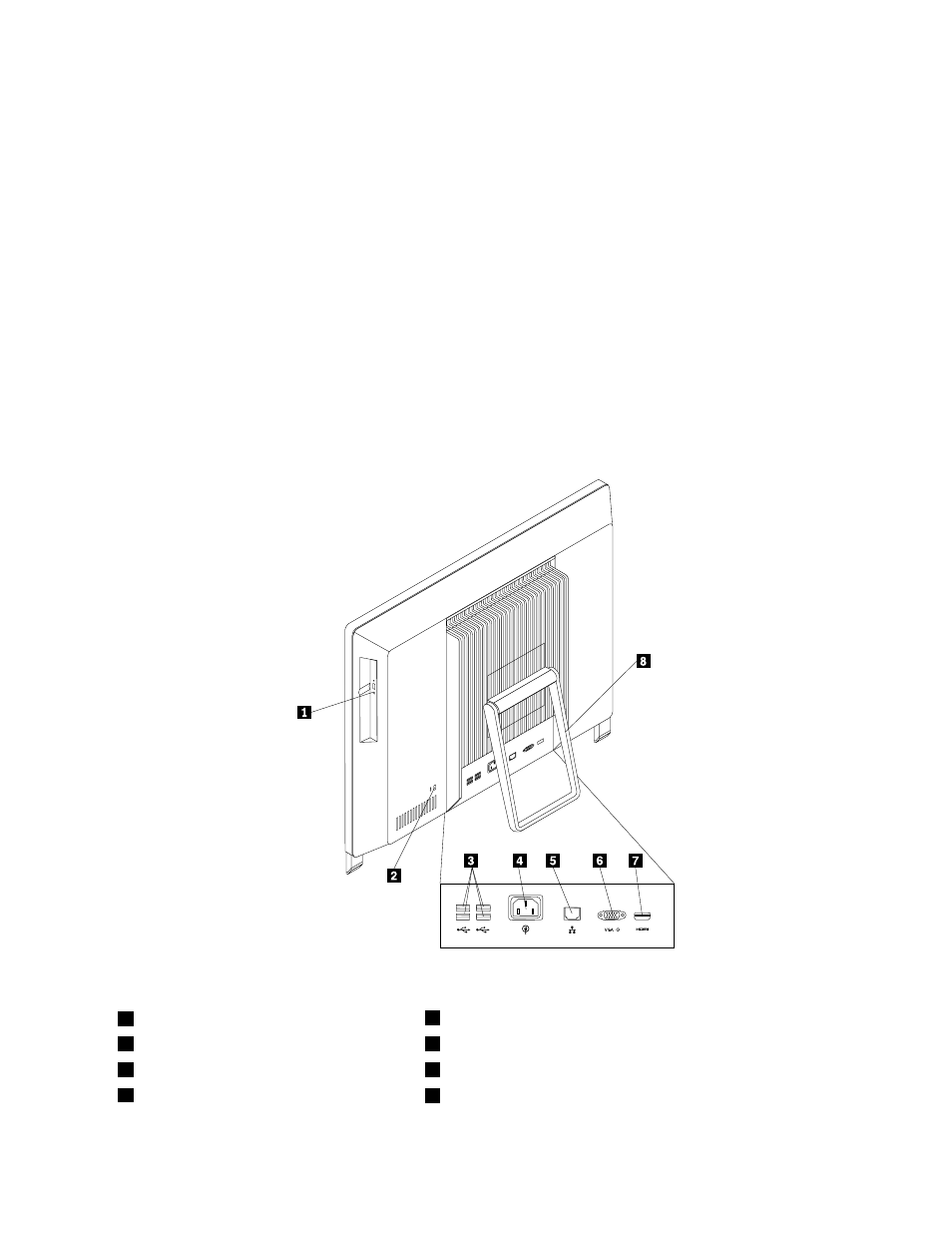

Figure 2. Rear connector locations
1
Optical drive
5
Ethernet connector
2
Integrated cable lock slot
6
VGA in connector
3
USB connectors (4)
7
HDMI out connector
4
Power cord connector
8
System stand
