Hardware Replacement Guide

Mounting the computer onto a wall

The computer can be mounted onto a wall. Before doing this, you will first need to
install a UL listed VESA wall mount* (to be purchased separately) onto the back of
the computer.

To install a VESA wall mount

Note: It may be helpful to place the computer face-down on a soft flat surface

for this procedure. Lenovo recommends that you use a blanket, towel, or
other soft cloth to protect the touch screen from scratching or other damage.

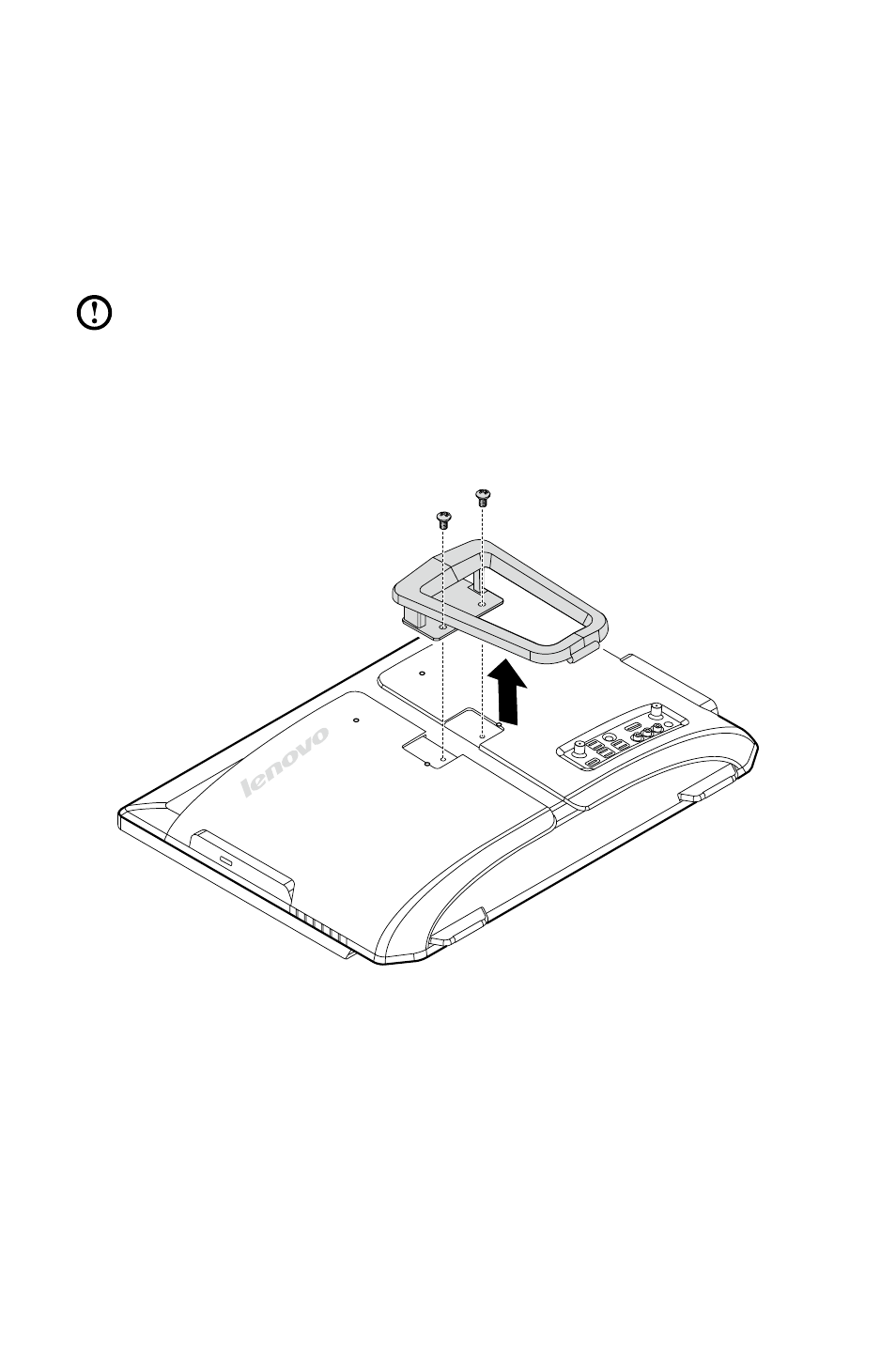

1. Remove the 2 screws that secure the stand to the computer, and then slide

the stand out.

2. Align the VESA wall mount with the mounting holes on the computer, and then

secure it to the computer with the 4 screws.

* VESA wall mount spec: VESA100, 100mm x 100mm, M4 bolts.
