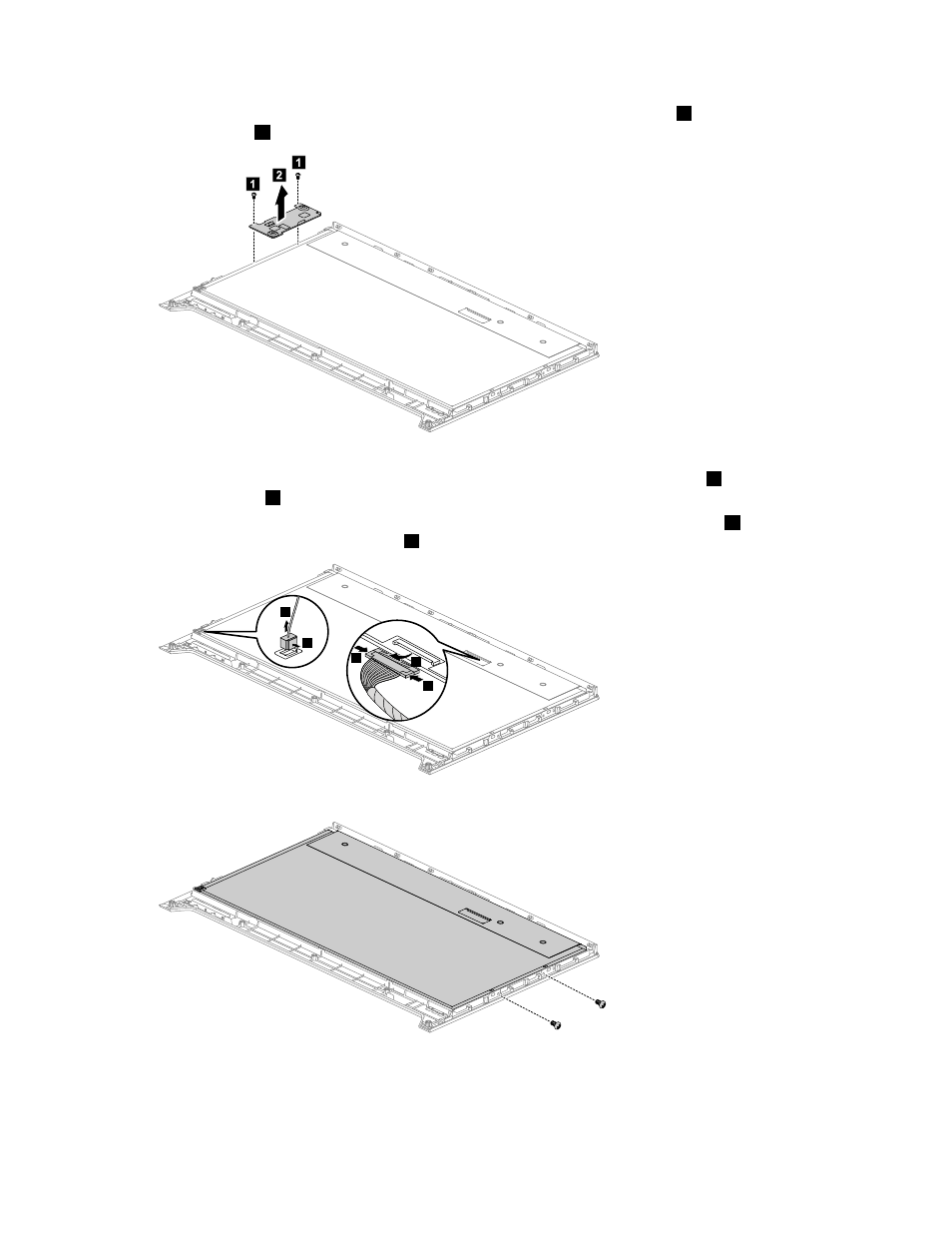

Step 6.
Remove the 2 screws that secure the converter bracket to the front bezel.
1
Lift up the bracket
to remove it.
2
1
1
2
Step 7.
Remove the tape that secures the LVDS cable to the connector.
Step 8.
Press the pins to unlock the LVDS cable from the connector on the LED panel
1
, then pull it
out as shown.
2
Step 9.
Press the pin to unlock the converter cable from the connector on the LED panel
3
, then pull
the converter cable out as shown.
4
1
2
1
3
4
Step 10. Remove the 2 screws that secure the LED panel to the front bezel.
44
