Rear view

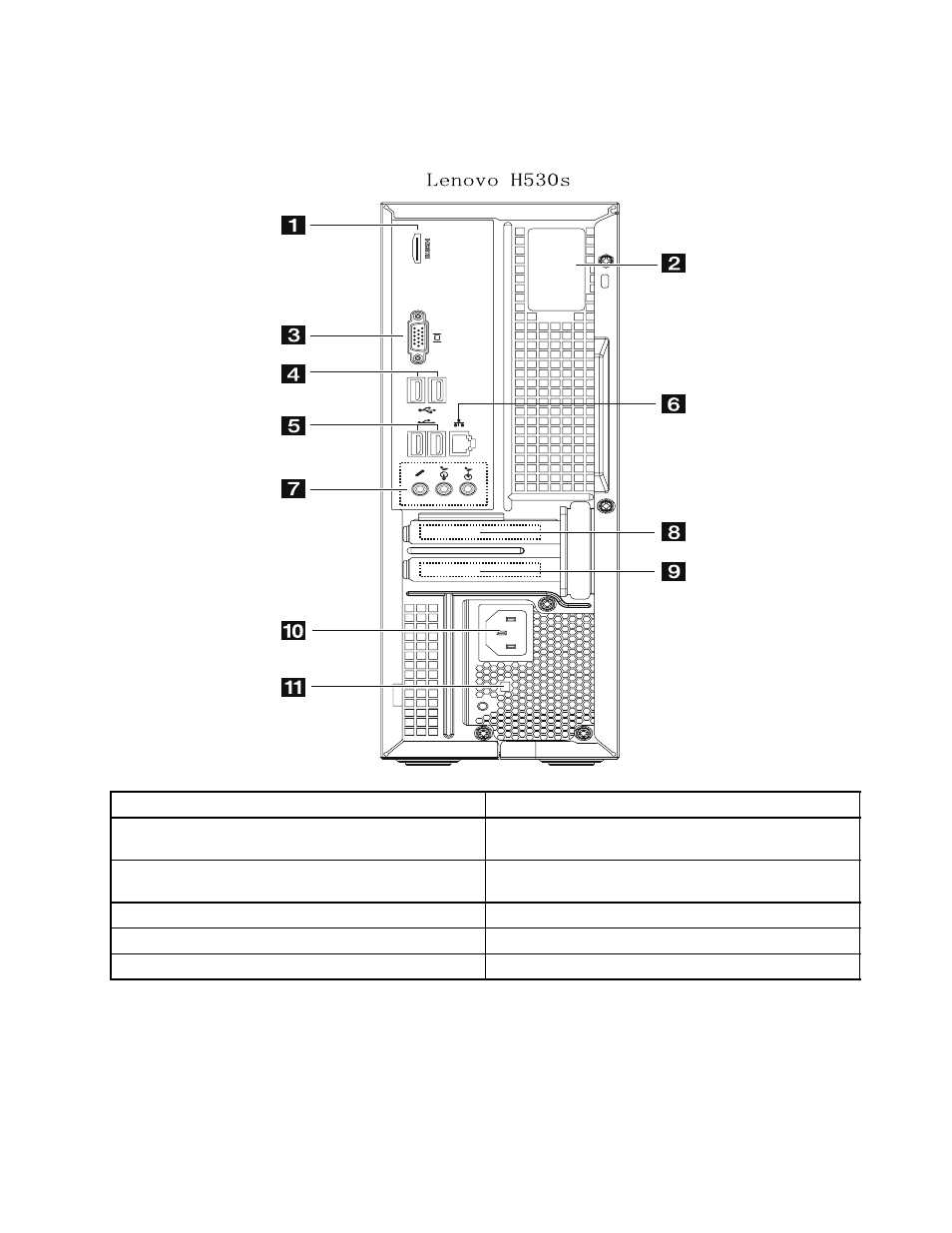

The following illustration shows the location of connectors and components on the rear of the computer.

ff oo pp ww pp !! II 66 44 11 tt

1. HDMI connector (selected models only)

7. Audio connectors

2. Wi-Fi antenna (selected models only)

8. PCI Express X 16 graphics adapter slot (some models
are equipped with a graphics card)

3. On-board VGA connector

9. PCI Express X 1 adapter slot (some models are
equipped with USB 3.0 or TV tuner card)

4. USB 3.0 connectors

10. Power connector

5. USB 2.0 connectors

11. Voltage selection switch (selected models only)

6. Ethernet connector
