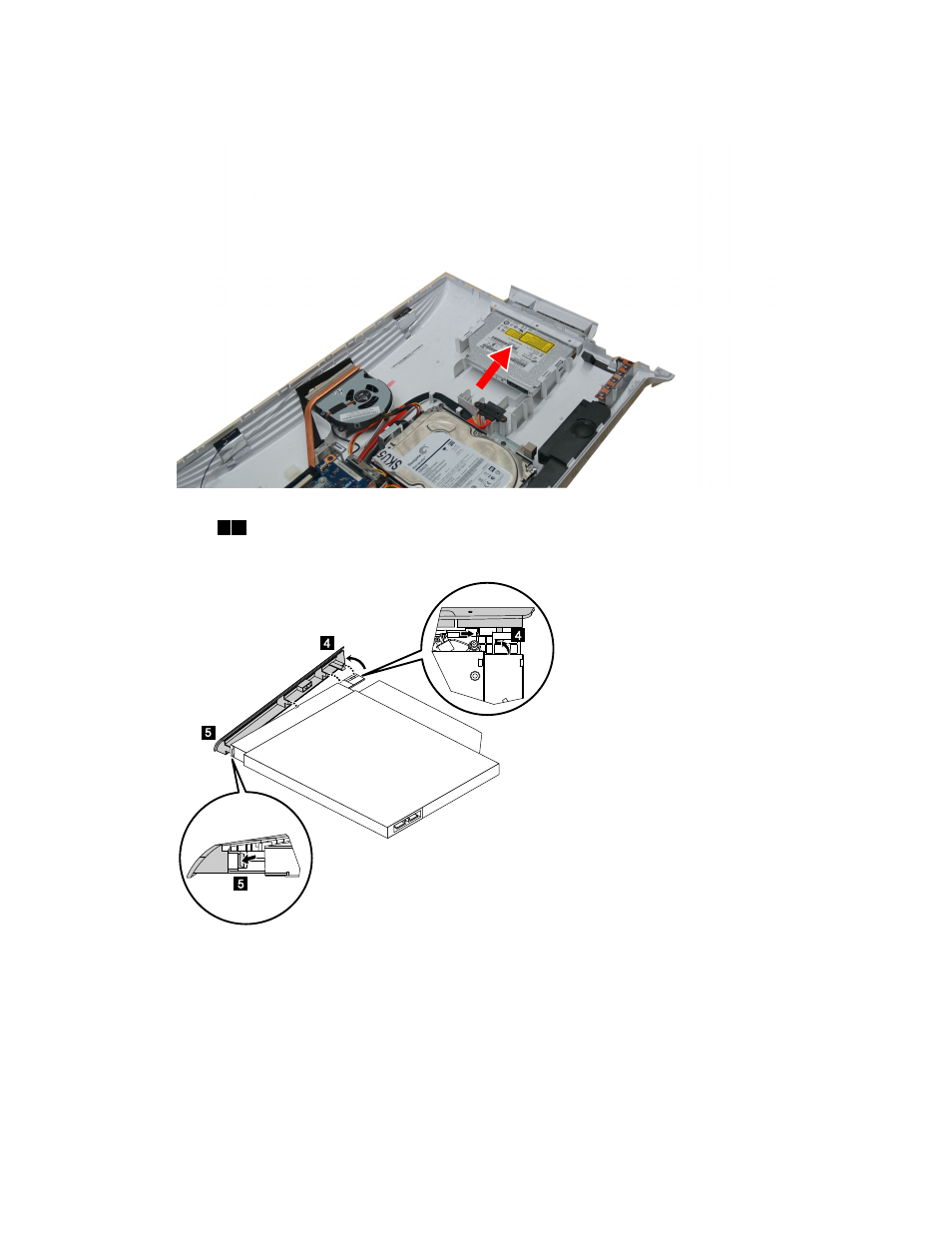

Step 5. Slide out the optical drive as shown.
Step 6. Use a small flat head screwdriver to press and push out the pins that secure the cover to the
disk.
4 5
Step 7. Separate the cover from the defective optical drive.
Step 8. Install the new optical drive as follows:
a. Align the new optical drive with the cover, and then push the cover back into position.
b. Slide the new optical drive into the drive bay, then push it into position.
c. Secure the rear cover to the front bezel with the 2 screws.
d. Reattach the stand and the cover.
Chapter 7 . Replacing hardware 29
