Lenovo Horizon 27 Table PC IdeaCentre User Manual
Page 45
Step 6.

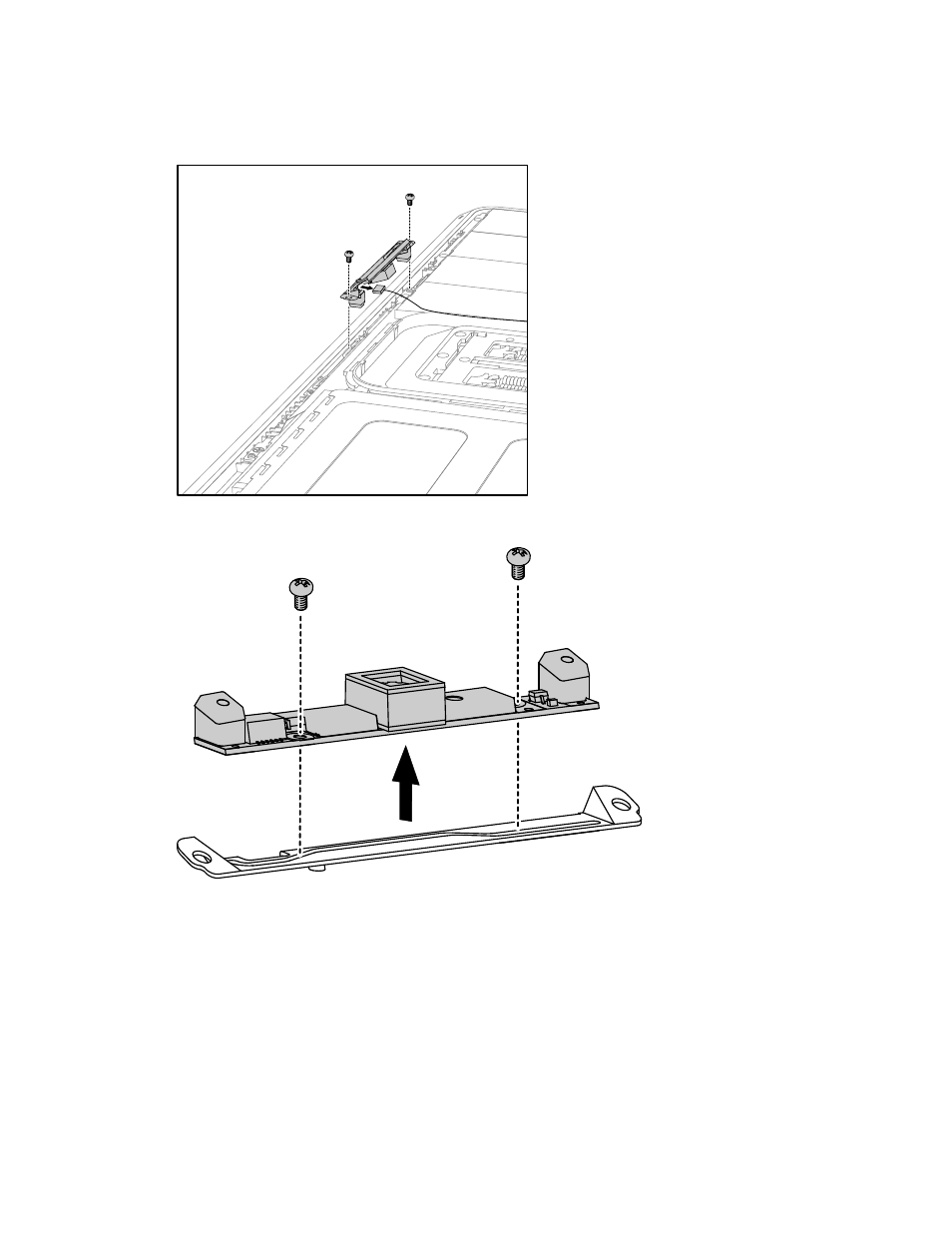

Remove the two screws that secure the camera and bracket to the front bezel.
Step 7.
Lift up the camera and disconnect the data cable from the camera.
Step 8.
Remove the camera from bracket by removing the two screws.
Step 9.
To install the new camera:
a.
Secure the new camera to the bracket with the two screws.
b.
Connect the data cable to the new camera.
c.
Line up the holes in the bracket with the mounting holes on the front bezel and secure the
new camera with the two screws.
d.
Reconnect the battery cable to the connector on the motherboard.
Step 10. Reattach the rear cover.
Chapter 8
.
Replacing hardware
39
