T
T
208V-240V 2500Watt
L1 L2 G
4
1
2
3 5
T
T
N L1 G
120V ~ 1800Watt
4
1
2
3 5

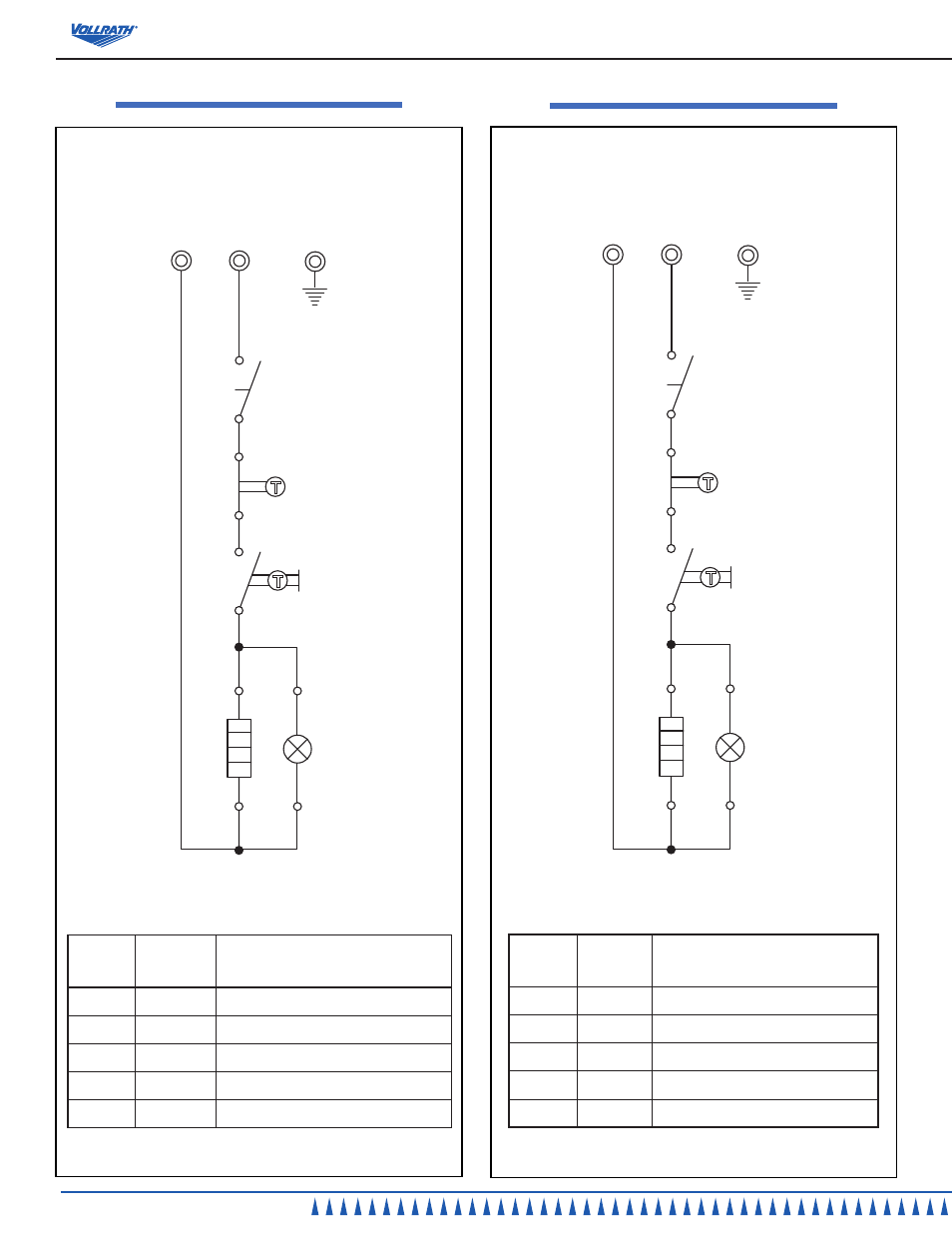

W
iring
d
iagram
- m
odels
40705
and
40707
Callout Part
Number Description
1 XFFA0009 Safety Thermostat
2 XFFA0008 Temperature Control Thermostat
3 XAA0011 Pilot Light, 120V, Amber
4 XFA0011 Micro Switch
5 XFFA0002 Heating Element, 120V ~ 1800 Watt
W
iring
d
iagram
- m
odels
40706
and
40708
Callout Part
Number Description
1 XFFA0009 Safety Thermostat
2 XFFA0008 Temperature Control Thermostat
3 XAA0002 Pilot Light, 220V, Red
4 XFA0011 Micro Switch
5 XFFA0003 Heating Element, 220V ~ 2500 Watt
