A.O. Smith 970 Series User Manual

Page 3

background image

3

CYCLONE XHE BTH 300A/400A - CONTROL PANEL

BTH 300A

BTH 400A

Item

Description

970/971

970/971

1

Cable Assembly, Power Switch ..................................................................194785............ 194785

2

Blower Prover Air Switch .............................................................................194706............ 195013

3

Box, Anode .................................................................................................194857............ 194857

4

Box, Junction ..............................................................................................194126............ 194126

5

Cable Assembly, Low Voltage ....................................................................194918............ 194918

7

Wire Harness ..............................................................................................194783............ 194783

8

Cable, Assembly - Controls ........................................................................194784............ 194784

9

Wire Assembly - Air Flow Switch .............................................................. 192802-2 ......... 192802-2

10

Wire Assembly - Air Flow Switch ............................................................. 192802-1 ......... 192802-1

Control Board, Cable Assembly (Includes Item 11 & 11A) .......................... 194811............ 195018

11

Control Board ...........................................................................................194812............ 195010

11A

Cable Assembly ......................................................................................194809............ 194809

12

Display Board .............................................................................................194808............ 194808

13

Electronic Control .......................................................................................194747............ 194747

14

Probe, Upper ...............................................................................................196597............ 196597

15

Probe, Lower ...............................................................................................196598............ 196598

16

Switch, Blocked Inlet ..................................................................................194911............ 195012

17

Switch, Blocked Outlet - NAT .....................................................................194910............ 194910

Switch, Blocked Outlet - LP ........................................................................195017............ 195017

18

Pump, Recirculation ....................................................................................194799............ 194799

19

Switch, On/Off.............................................................................................193243............ 193243

20

Switch, NAT, Low Gas Pressure ............................................................. 191149-6 ......... 191149-6

Switch, LP ,Low Gas Pressure ................................................................. 191149-4 ......... 191149-4

21

Transformer .................................................................................................192608............ 192608

22

Valve, Natural Gas .................................................................................... 194536-5 ......... 194536-5

22

Valve, LP Gas ........................................................................................... 194536-6 ......... 194536-6

23

Tubing, 1/4" ID, PVC ...................................................................................193738............ 193738

24

Cable Assembly, Igniter ..............................................................................194937............ 194937

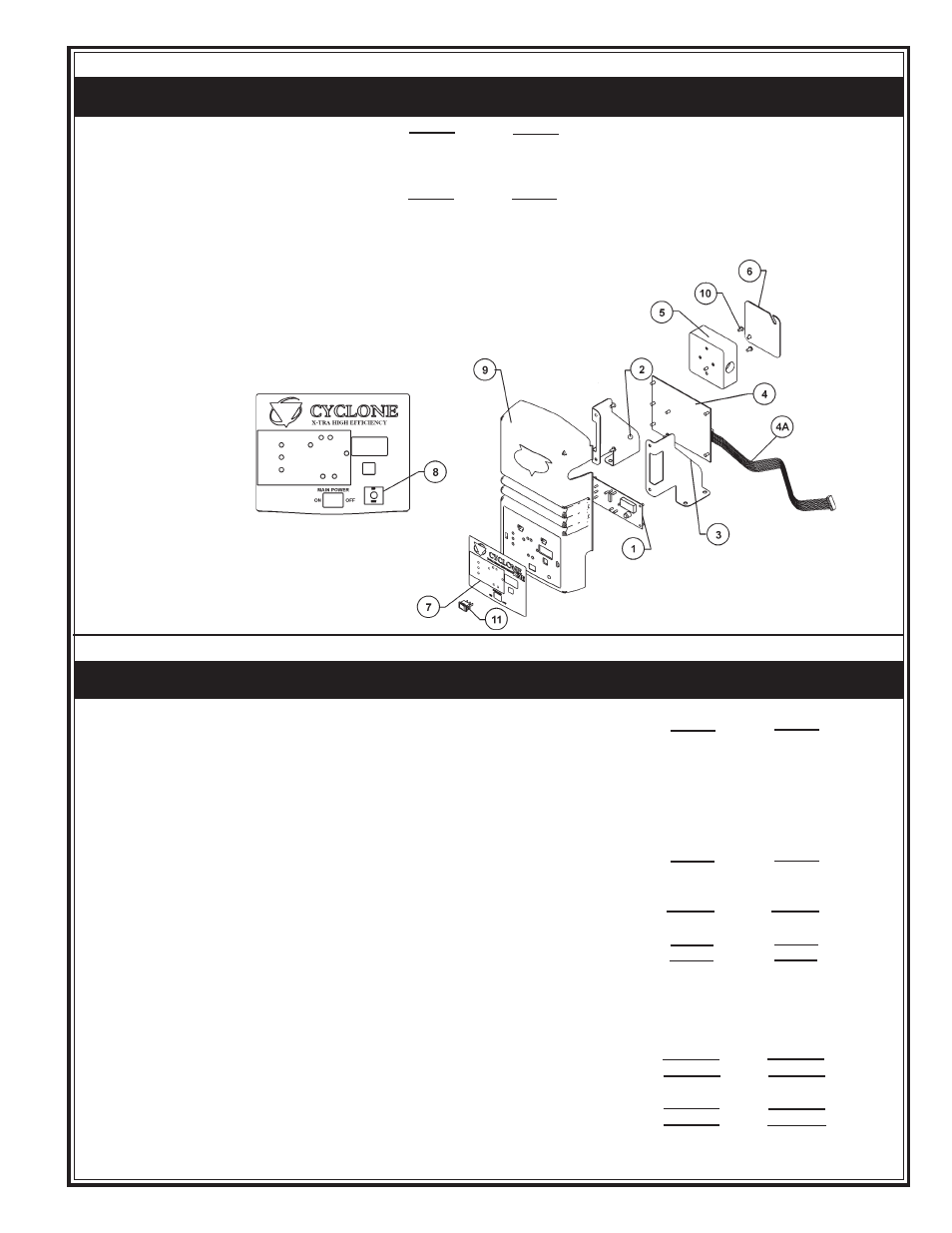

CYCLONE XHE BTH 300A/400A - OPERATING CONTROLS & WIRING (See Next Page)

BTH300A

BTH400A

Item

Description

970/971

970/971

1

Board, Display Panel ............................ 194808 ............ 194808

2

Bracket, Mounting Left ......................... 194123-1 ......... 194123-1

3

Bracket, Mounting Right ........................ 194123 ............ 194123

Control Board, Cable Assembly

(includes 4 & 4A) .................................. 194811 ............ 195018

4

Control Board ..................................... 194812 ............ 195010

4A

Cable Assembly ................................ 194809 ............ 194809

5

Junction Box Assembly ........................ 194126 ............ 194126

6

Junction Box Cover ................................. 2233 ............... 2233

7

Label, Display Panel ............................. 194203 ............ 194203

8

Label, Led ............................................. 194915 ............ 194915

9

Panel Front ........................................... 193884 ............ 193884

10

Screw, Plastic....................................... 194202 ............ 194202

11

Switch,Off/On ........................................ 193243 ............ 193243
