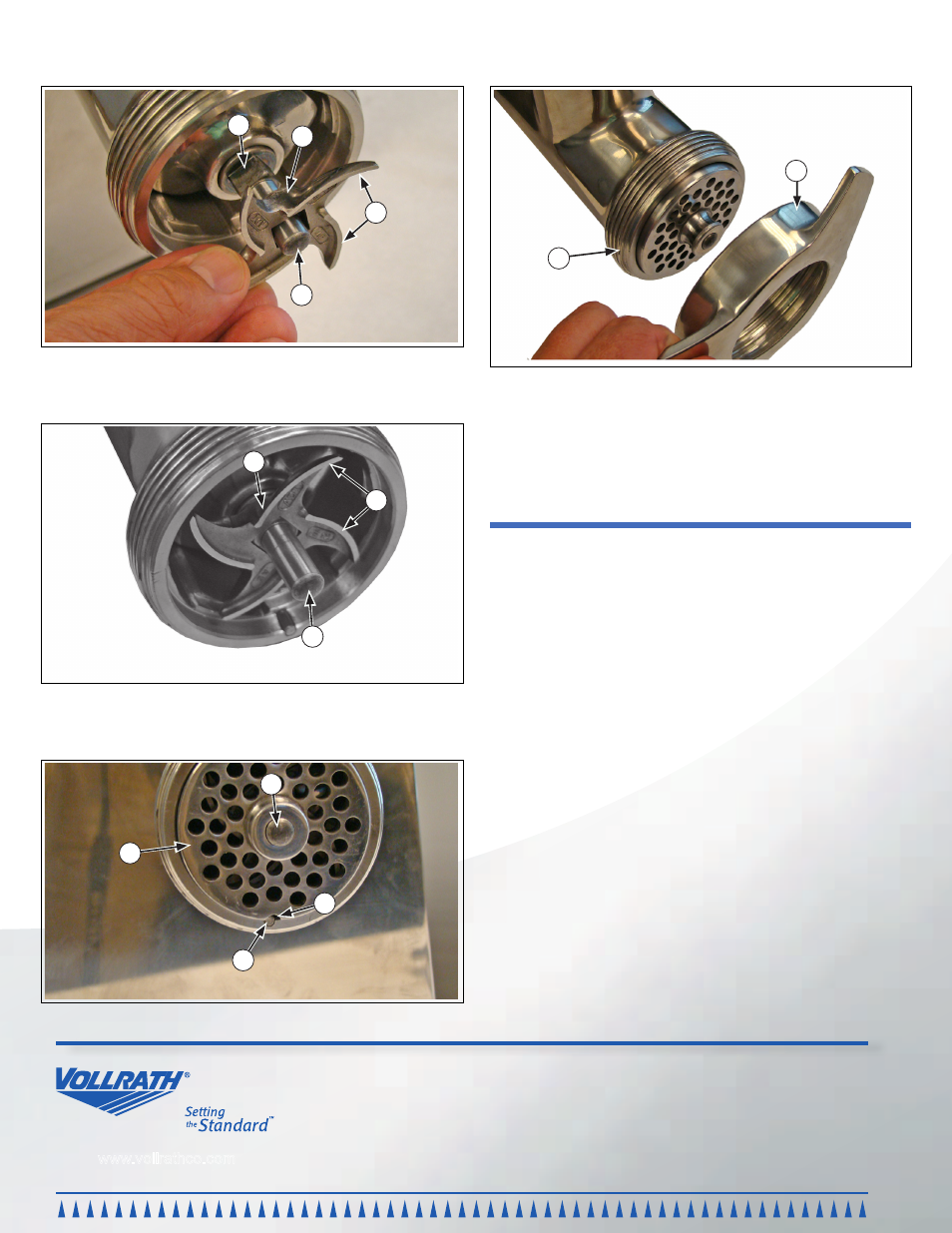

8. Slide the knife blade (B) so that the flat ground edges (A) face to the outside as
shown, onto the blade shaft (C). See Figure 4.
C
A
D
B
Figure 4. Knife Blade and Blade Shaft
9. Slide the knife blade (B) onto the blade shaft (C) so that it seats completely
over the square (D). See Figure 5.
C
A
B
Figure 5. Knife Blade and Blade Shaft
10. Place the grinder plate (D) onto the blade shaft (A) so that the cutout (C) slides
over the locating pin (B). See Figure 6.
A
C
B
D
Figure 6. Grinder Plate, Cutout, Locating Pin and Blade Shaft
11. If a sausage filler is to be used, place it between the coupling cover (A) and the
grinder chamber (B). See Figure 7.
A
B
Figure 7. Coupling Cover and Grinder Chamber
12. Thread the coupling cover (A) onto the grinder chamber (B) and tighten
securely.
d
iSaSSembly
P
rocedureS
1. Turn the meat grinder off and unplug from its power source.
2. Unscrew and remove the coupling cover (A) from the grinder chamber (B). See
Figure 7.
3. Remove the grinder plate (D) from the blade shaft (A). See Figure 6.
4. Carefully remove the knife blade (B) from the blade shaft (C). See Figure 5.
5. Remove the worm gear assembly (B) from the grinder chamber (C). See
Figure 3.
6. Thoroughly clean and dry all parts.
