Removing Cover of RAID Tower
XIII
Loosen the 3 screws at the back of the tower for
each side panel using a Philips screwdriver. Push
each side panel toward the rear of the tower to
disengage and remove.
r
ctor
Powe
Conne
Power
Switch
Port
Multipliers

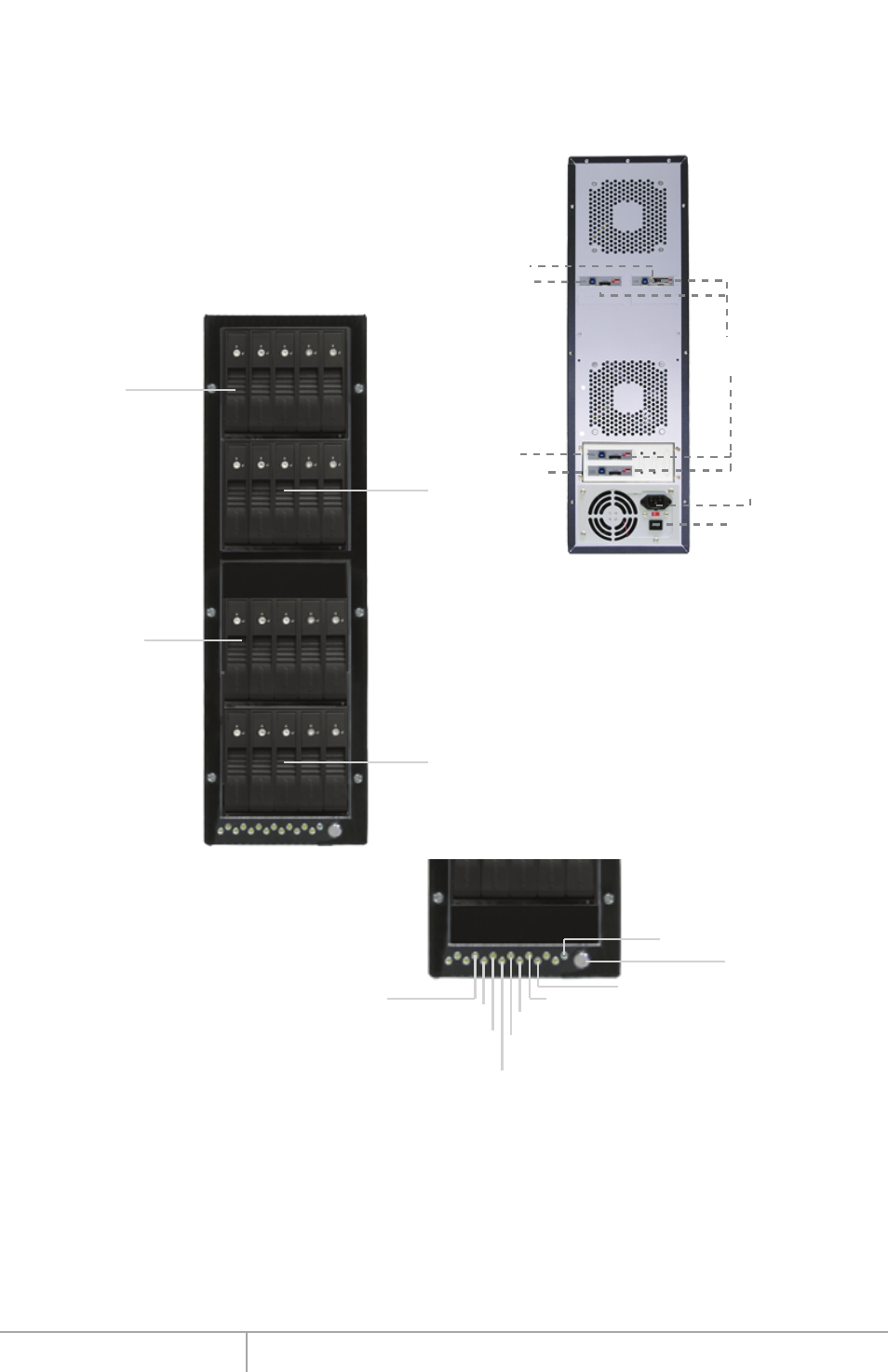

Back
Power LED: lit when RAID Tower is on.
Host LED: lit when array group is connected, blinks
during array activity.
Error LED: lit when array group has a problem, blinks
if a redundant array is rebuilding.
Array 1 Host
Array 1 Error
Array 2 Host
Array 2 Error
Array 3 Host
Array 3 Error
Array 4 Host
Array 4 Error
Power LED
Power Switch
Array 1
Array 2
Array 3
Array 4
Array 1
Array 2
Array 3
Array 4
