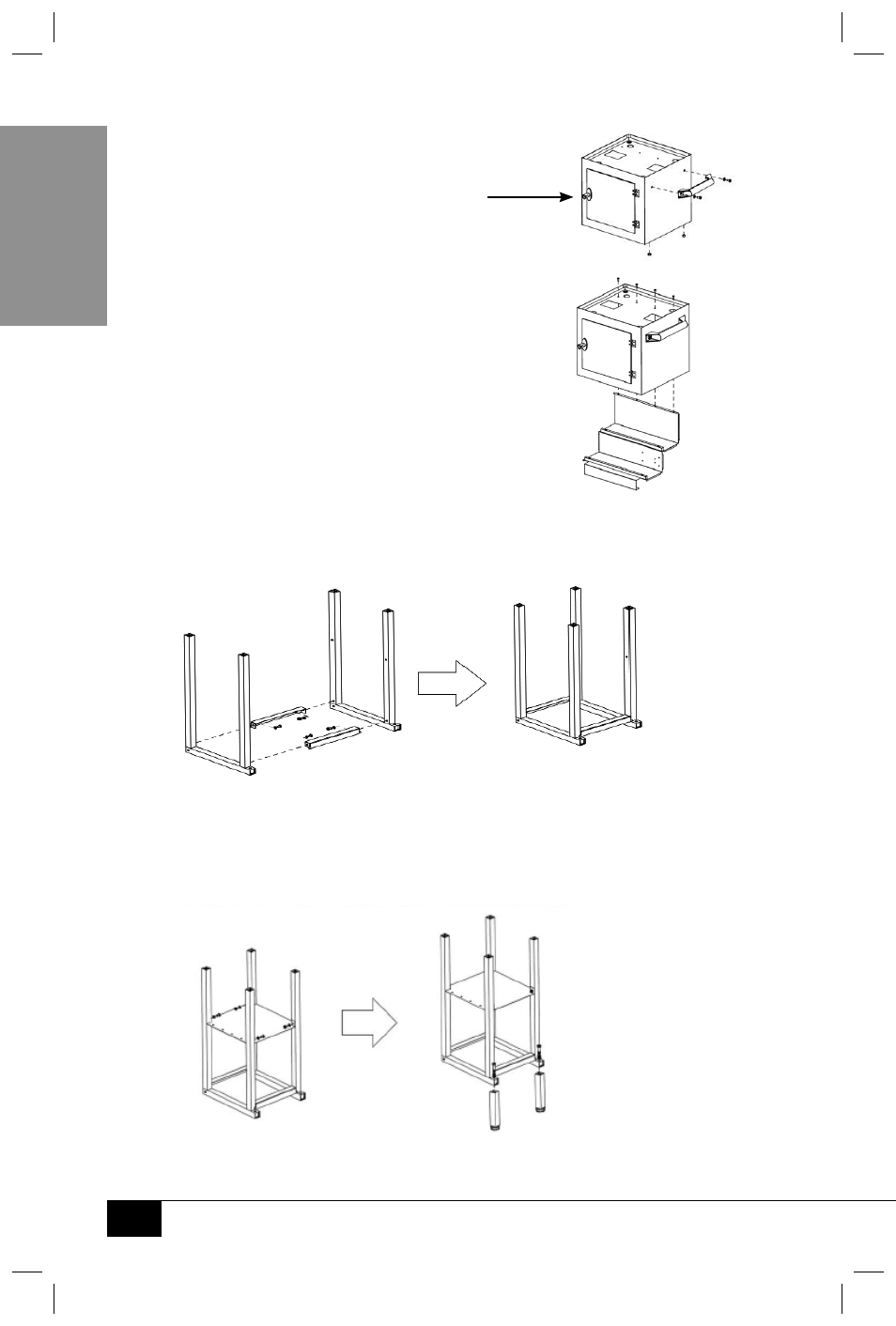

Assembly of Storage Compartment with Concession Stand
1. Attach Push Handle (C) from inside Storage
Compartment (B) using two #1 Bolts and two
#6 Flat Washers. Attach two #11 Nuts to bottom.
2. Attach Concession Stand Tiers (L) to Storage
Compartment (B) using four #14 Screws.
NOTE: Battery for lighted Concession Stand is
located on the bottom side of the Concession
Stand. When replacing the AA batteries, be sure
polarity is correct (i.e. match (+) end of battery to
(+) end of battery pack) or steps will not light.
Assembly of Base Support
1. Attach Cross Bar (G) to Base Support (F) and secure with
four #1 Bolts and four #6 Flat Washers.
2. Secure Bottom Plate (D) to Base Support (F) using four #1 Bolts and four #6 Flat
Washers. Make sure the screw holes on Bottom Plate (D) are to the left of the
protruding ends of the Base Support (F) as shown in the diagram below.
3. Attach Legs (I) to protruding ends of Base Support (F) using two #2 Bolts, two #7 Flat
Washers and two #8 Locking Washers.
