1-23
MS-7750
Chapter 1

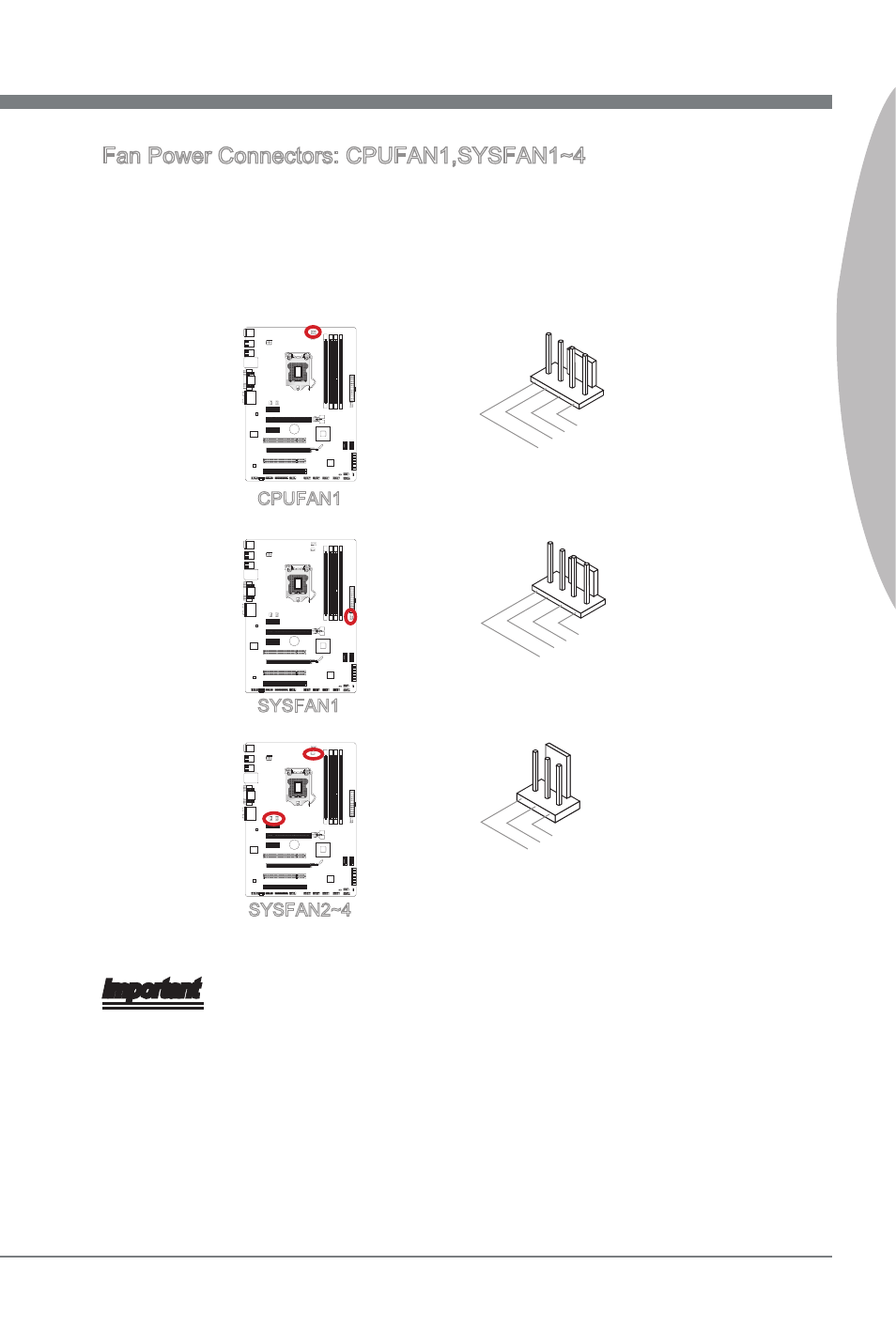

Fan Power Connectors: CPUFAN1,SYSFAN1~4
The fan power connectors support system coolng fans wth +12V. If the manboard has
a System Hardware Montor chpset on-board, you must use a specally desgned fan
wth a speed sensor to take advantage of the CPU fan control. Remember to connect
all system fans. Some system fans may not connect to the manboard and wll nstead
connect to the power supply drectly. A system fan can be plugged nto any avalable
system fan connector.
1.Gro
und
2.+1
2V
3.Se
nsor/
No U
se
1.Gro
und
2.+1
2V
3.Se
nsor
4.Co
ntrol
CPUFAN1
SYSFAN2~4
1.Gro
und
2.+1
2V
3.Se
nsor
4.No
use
SYSFAN1
Important
Please refer to your processor’s offical webste or consult your vendor to find recom-
mended CPU coolng fans.
The CPUFAN1 connector supports Smart fan control. The Control Center utlty can
be nstalled to automatcally control the fan speed accordng to the CPU’s tempera-
ture.
If there are not enough ports on the manboard to connect all system fans, adapters
are avalable to connect a fan drectly to a power supply.
Before first boot up, ensure that there are no cables mpedng any fan blades.
•
•
•
•
